This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V. More...

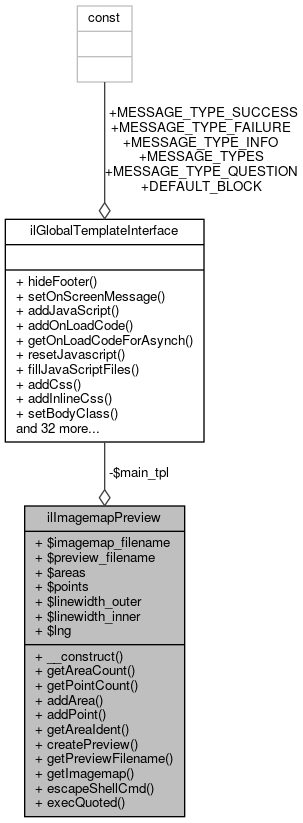

Collaboration diagram for ilImagemapPreview:

Public Member Functions
	__construct ($imagemap_filename="")
	ilImagemapPreview constructor More...

	getAreaCount ()

	getPointCount ()

	addArea ( $index, $shape, $coords, $title="", $href="", $target="", $visible=true, $linecolor="red", $bordercolor="white", $fillcolor="#FFFFFFA0")

	addPoint ( $index, $coords, $visible=true, $linecolor="red", $bordercolor="white", $fillcolor="#FFFFFFA0")

	getAreaIdent ()

	createPreview ()

	getPreviewFilename (string $image_path, string $base_file_name)

	getImagemap ($title)
	get imagemap html code note: html code should be placed in template files More...

Static Public Member Functions
static	escapeShellCmd ($a_arg)

static	execQuoted ($cmd, $args=null)

Data Fields
	$imagemap_filename

	$preview_filename

	$areas

	$points

	$linewidth_outer

	$linewidth_inner

	$lng

Private Attributes
ilGlobalTemplateInterface	$main_tpl

Detailed Description

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V.

ILIAS is licensed with the GPL-3.0, see https://www.gnu.org/licenses/gpl-3.0.en.html You should have received a copy of said license along with the source code, too.

If this is not the case or you just want to try ILIAS, you'll find us at: https://www.ilias.de https://github.com/ILIAS-eLearning Image map image preview creator

Takes an image and imagemap areas and creates a preview image containing the imagemap areas.

Author: Helmut Schottmüller helmu.nosp@m.t.sc.nosp@m.hottm.nosp@m.uell.nosp@m.er@ma.nosp@m.c.co.nosp@m.m

Version: $Id$ \

Definition at line 29 of file class.ilImagemapPreview.php.

Constructor & Destructor Documentation

◆ __construct()

ilImagemapPreview::__construct ( $imagemap_filename = "" )

ilImagemapPreview constructor

Creates an instance of the ilImagemapPreview class

Parameters

integer $id The database id of a image map question object public

Definition at line 48 of file class.ilImagemapPreview.php.

References $DIC, $imagemap_filename, $lng, ilFileUtils\ilTempnam(), and ILIAS\Repository\lng().

     {
         global $DIC;
         $this->main_tpl = $DIC->ui()->mainTemplate();
         $lng = $DIC['lng'];
         $this->lng = &$lng;
         $this->imagemap_filename = $imagemap_filename;

         if (!@is_file($this->preview_filename)) {
             $extension = ".jpg";
             if (preg_match("/.*\.(png|jpg|gif|jpeg)$/", $this->imagemap_filename, $matches)) {
                 $extension = "." . $matches[1];
             }
             $this->preview_filename = ilFileUtils::ilTempnam() . $extension;
         }
         $this->areas = [];
         $this->points = [];
         $this->linewidth_outer = 4;
         $this->linewidth_inner = 2;
     }

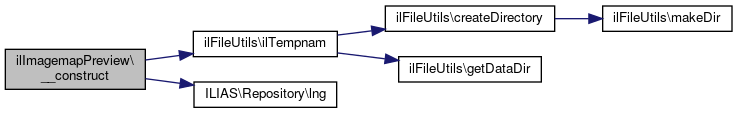

Here is the call graph for this function:

Member Function Documentation

◆ addArea()

ilImagemapPreview::addArea	(	$index,
		$shape,
		$coords,
		$title = `""`,
		$href = `""`,
		$target = `""`,
		$visible = `true`,
		$linecolor = `"red"`,
		$bordercolor = `"white"`,
		$fillcolor = `"#FFFFFFA0"`
	)

Definition at line 79 of file class.ilImagemapPreview.php.

References ILIAS\Repository\int().

Referenced by assImagemapQuestionGUI\areaEditor(), assImagemapQuestionGUI\getPreview(), assImagemapQuestionGUI\getSolutionOutput(), and assImagemapQuestionGUI\getTestOutput().

      : void {
         if (ini_get("safe_mode")) {
             if ((strpos($fillcolor, "#") !== false) || (strpos($fillcolor, "rgb") !== false)) {
                 $fillcolor = str_replace("\"", "", $fillcolor);
             }
         }
         $this->areas[$index] = [
             "shape" => "$shape",
             "coords" => "$coords",
             "title" => htmlspecialchars($title),
             "href" => "$href",
             "target" => "$target",
             "linecolor" => '"' . $linecolor . '"',
             "fillcolor" => '"' . $fillcolor . '"',
             "bordercolor" => '"' . $bordercolor . '"',
             "visible" => (int) $visible
         ];
     }

Here is the call graph for this function:

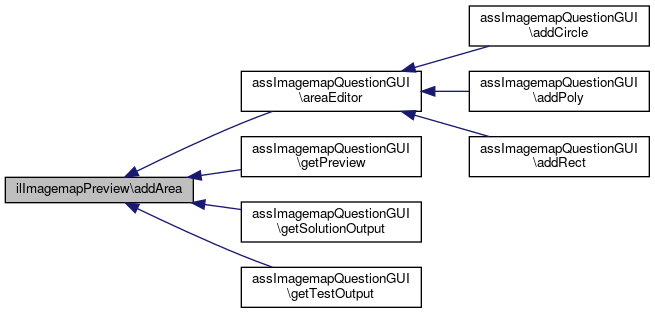

Here is the caller graph for this function:

◆ addPoint()

ilImagemapPreview::addPoint	(	$index,
		$coords,
		$visible = `true`,
		$linecolor = `"red"`,
		$bordercolor = `"white"`,
		$fillcolor = `"#FFFFFFA0"`
	)

Definition at line 109 of file class.ilImagemapPreview.php.

References ILIAS\Repository\int().

      : void {
         $this->points[$index] = [
             "coords" => "$coords",
             "linecolor" => '"' . $linecolor . '"',
             "fillcolor" => '"' . $fillcolor . '"',
             "bordercolor" => '"' . $bordercolor . '"',
             "visible" => (int) $visible
         ];
     }

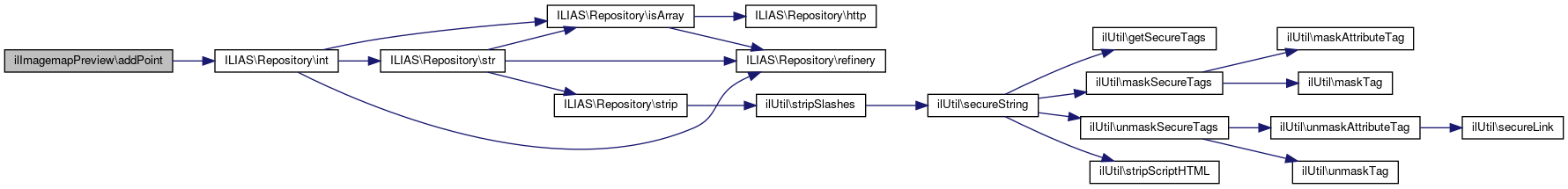

Here is the call graph for this function:

◆ createPreview()

ilImagemapPreview::createPreview ( )

Definition at line 142 of file class.ilImagemapPreview.php.

References $r, escapeShellCmd(), and execQuoted().

                                    : void
     {
         if (count($this->areas) + count($this->points) == 0) {
             return;
         }
         $convert_cmd = "-quality 100 ";
         foreach ($this->points as $point) {
             if ($point["visible"]) {
                 preg_match("/(\d+)\s*,\s*(\d+)/", $point["coords"], $matches);
                 $x = $matches[1];
                 $y = $matches[2];
                 $r = 6;
                 // draw a circle at the point
                 $convert_cmd .= "-stroke " . $point["bordercolor"] . " -fill " . $point["fillcolor"] . " -strokewidth $this->linewidth_outer -draw \"line " .
                 ($x - $r) . "," . ($y - $r) . " " . ($x + $r) . "," . ($y + $r) . "\" " .
                 "-stroke " . $point["bordercolor"] . " -fill " . $point["fillcolor"] . " -strokewidth $this->linewidth_outer -draw \"line " .
                 ($x + $r) . "," . ($y - $r) . " " . ($x - $r) . "," . ($y + $r) . "\" " .
                 "-stroke " . $point["linecolor"] . " -fill " . $point["fillcolor"] . " -strokewidth $this->linewidth_inner -draw \"line " .
                 ($x - $r) . "," . ($y - $r) . " " . ($x + $r) . "," . ($y + $r) . "\" " .
                 "-stroke " . $point["linecolor"] . " -fill " . $point["fillcolor"] . " -strokewidth $this->linewidth_inner -draw \"line " .
                 ($x + $r) . "," . ($y - $r) . " " . ($x - $r) . "," . ($y + $r) . "\" ";
             }
         }
         foreach ($this->areas as $area) {
             if ($area["visible"] and strcmp(strtolower($area["shape"]), "rect") == 0) {
                 preg_match("/(\d+)\s*,\s*(\d+)\s*,\s*(\d+)\s*,\s*(\d+)/", $area["coords"], $matches);
                 $x0 = $matches[1];
                 $y0 = $matches[2];
                 $x1 = $matches[3];
                 $y1 = $matches[4];
                 // draw a rect around the selection
                 $convert_cmd .= "-stroke " . $area["bordercolor"] . " -fill " . $area["fillcolor"] . " -strokewidth $this->linewidth_outer -draw \"rectangle " .
                 $x0 . "," . $y0 . " " . ($x1) . "," . $y1 . "\" " .
                 "-stroke " . $area["linecolor"] . " -fill " . $area["fillcolor"] . " -strokewidth $this->linewidth_inner -draw \"rectangle " .
                 $x0 . "," . $y0 . " " . ($x1) . "," . $y1 . "\" ";
             } elseif ($area["visible"] and strcmp(strtolower($area["shape"]), "circle") == 0) {
                 preg_match("/(\d+)\s*,\s*(\d+)\s*,\s*(\d+)/", $area["coords"], $matches);
                 $x = $matches[1];
                 $y = $matches[2];
                 $r = $matches[3];
                 // draw a circle around the selection
                 $convert_cmd .= "-stroke " . $area["bordercolor"] . " -fill " . $area["fillcolor"] . " -strokewidth $this->linewidth_outer -draw \"circle " .
                 $x . "," . $y . " " . ($x + $r) . "," . $y . "\" " .
                 "-stroke " . $area["linecolor"] . " -fill " . $area["fillcolor"] . " -strokewidth $this->linewidth_inner -draw \"circle " .
                 $x . "," . $y . " " . ($x + $r) . "," . $y . "\" ";
             } elseif ($area["visible"] and strcmp(strtolower($area["shape"]), "poly") == 0) {
                 $obj = "polygon";
                 // draw a polygon around the selection
                 preg_match_all("/(\d+)\s*,\s*(\d+)/", $area["coords"], $matches, PREG_PATTERN_ORDER);
                 if (count($matches[0]) == 2) {
                     $obj = "line";
                 }
                 $convert_cmd .= "-stroke " . $area["bordercolor"] . " -fill " . $area["fillcolor"] . " -strokewidth $this->linewidth_outer -draw \"$obj ";
                 for ($i = 0; $i < count($matches[0]); $i++) {
                     $convert_cmd .= $matches[1][$i] . "," . $matches[2][$i] . " ";
                 }
                 $convert_cmd .= "\" ";
                 $convert_cmd .= "-stroke " . $area["linecolor"] . " -fill " . $area["fillcolor"] . " -strokewidth $this->linewidth_inner -draw \"$obj ";
                 preg_match_all("/(\d+)\s*,\s*(\d+)/", $area["coords"], $matches, PREG_PATTERN_ORDER);
                 for ($i = 0; $i < count($matches[0]); $i++) {
                     $convert_cmd .= $matches[1][$i] . "," . $matches[2][$i] . " ";
                 }
                 $convert_cmd .= "\" ";
             }
         }

         $source = $this->escapeShellCmd($this->imagemap_filename);
         $target = $this->escapeShellCmd($this->preview_filename);
         $convert_cmd = $this->escapeShellCmd($convert_cmd);
         $convert_cmd = preg_replace('/\\\\(#([a-fA-F0-9]{3}|[a-fA-F0-9]{6}|[a-fA-F0-9]{8}))/', '${1}', $convert_cmd);
         $convert_cmd = $source . "[0] " . $convert_cmd . " " . $target;
         $this->execQuoted(PATH_TO_CONVERT, $convert_cmd);
     }

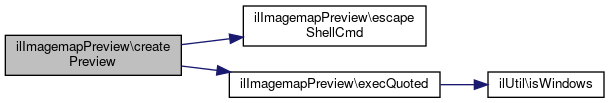

Here is the call graph for this function:

◆ escapeShellCmd()

static ilImagemapPreview::escapeShellCmd ( $a_arg )

static

Definition at line 216 of file class.ilImagemapPreview.php.

Referenced by createPreview().

     {
         if (ini_get('safe_mode') == 1) {
             return $a_arg;
         }
         setlocale(LC_CTYPE, "UTF8", "en_US.UTF-8"); // fix for PHP escapeshellcmd bug. See: http://bugs.php.net/bug.php?id=45132
         return escapeshellcmd($a_arg);
     }

Here is the caller graph for this function:

◆ execQuoted()

static ilImagemapPreview::execQuoted	(	$cmd,
		$args = `null`
	)

static

Definition at line 225 of file class.ilImagemapPreview.php.

References $DIC, and ilUtil\isWindows().

Referenced by createPreview().

     {
         global $DIC;

         if (ilUtil::isWindows() && strpos($cmd, " ") !== false && substr($cmd, 0, 1) !== '"') {
             $cmd = '"' . $cmd . '"';
             if ($args) {
                 $cmd .= " " . $args;
             }
         } elseif ($args) {
             $cmd .= " " . $args;
         }
         exec($cmd, $arr);

         $DIC->logger()->root()->debug("ilUtil::execQuoted: " . $cmd . ".");

         return $arr;
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getAreaCount()

ilImagemapPreview::getAreaCount ( )

Definition at line 69 of file class.ilImagemapPreview.php.

                                   : int
     {
         return count($this->areas);
     }

◆ getAreaIdent()

ilImagemapPreview::getAreaIdent ( )

Definition at line 126 of file class.ilImagemapPreview.php.

References ILIAS\UI\examples\Symbol\Glyph\Sort\sort().

Referenced by getPreviewFilename().

                                   : string
     {
         if (count($this->areas) + count($this->points) > 0) {
             $arr = array_merge(array_keys($this->areas), array_keys($this->points));
             sort($arr, SORT_NUMERIC);

             $inner = join("_", $arr);
             if (strlen($inner) > 32) {
                 $inner = md5($inner);
             }
             return "preview_" . $inner . "_";
         } else {
             return "";
         }
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getImagemap()

ilImagemapPreview::getImagemap ( $title )

get imagemap html code note: html code should be placed in template files

Definition at line 273 of file class.ilImagemapPreview.php.

                                        : string
     {
         $map = "<map name=\"$title\"> ";
         foreach ($this->areas as $area) {
             $map .= "<area alt=\"" . $area["title"] . "\"  title=\"" . $area["title"] . "\" ";
             $map .= "shape=\"" . $area["shape"] . "\" ";
             $map .= "coords=\"" . $area["coords"] . "\" ";
             if ($area["href"]) {
                 $map .= "href=\"" . $area["href"] . "\" ";
                 if ($area["target"]) {
                     $map .= "target=\"" . $area["target"] . "\" ";
                 }
                 $map .= "/>\n";
             } else {
                 $map .= "nohref />\n";
             }
         }
         $map .= "</map>";
         return $map;
     }

◆ getPointCount()

ilImagemapPreview::getPointCount ( )

Definition at line 74 of file class.ilImagemapPreview.php.

                                    : int
     {
         return count($this->points);
     }

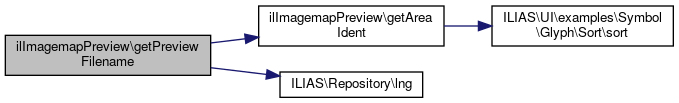

◆ getPreviewFilename()

ilImagemapPreview::getPreviewFilename	(	string	$image_path,
		string	$base_file_name
	)

Definition at line 244 of file class.ilImagemapPreview.php.

References $preview_filename, getAreaIdent(), and ILIAS\Repository\lng().

      : string {
         if (count($this->areas) + count($this->points) < 1) {
             return $base_file_name;
         }

         $preview_file = $this->preview_filename;
         if (!is_file($preview_file)) {
             $this->main_tpl->setOnScreenMessage('info', $this->lng->txt("qpl_imagemap_preview_missing"));
             return $base_file_name;
         }

         $ident = $this->getAreaIdent();
         $requested_preview_file = $image_path . $ident . $base_file_name;
         if ((!is_file($requested_preview_file)
             || md5_file($requested_preview_file) !== md5_file($preview_file))
             && $ident !== '') {
             copy($preview_file, $requested_preview_file);
         }
         unlink($preview_file);
         return basename($requested_preview_file);
     }
