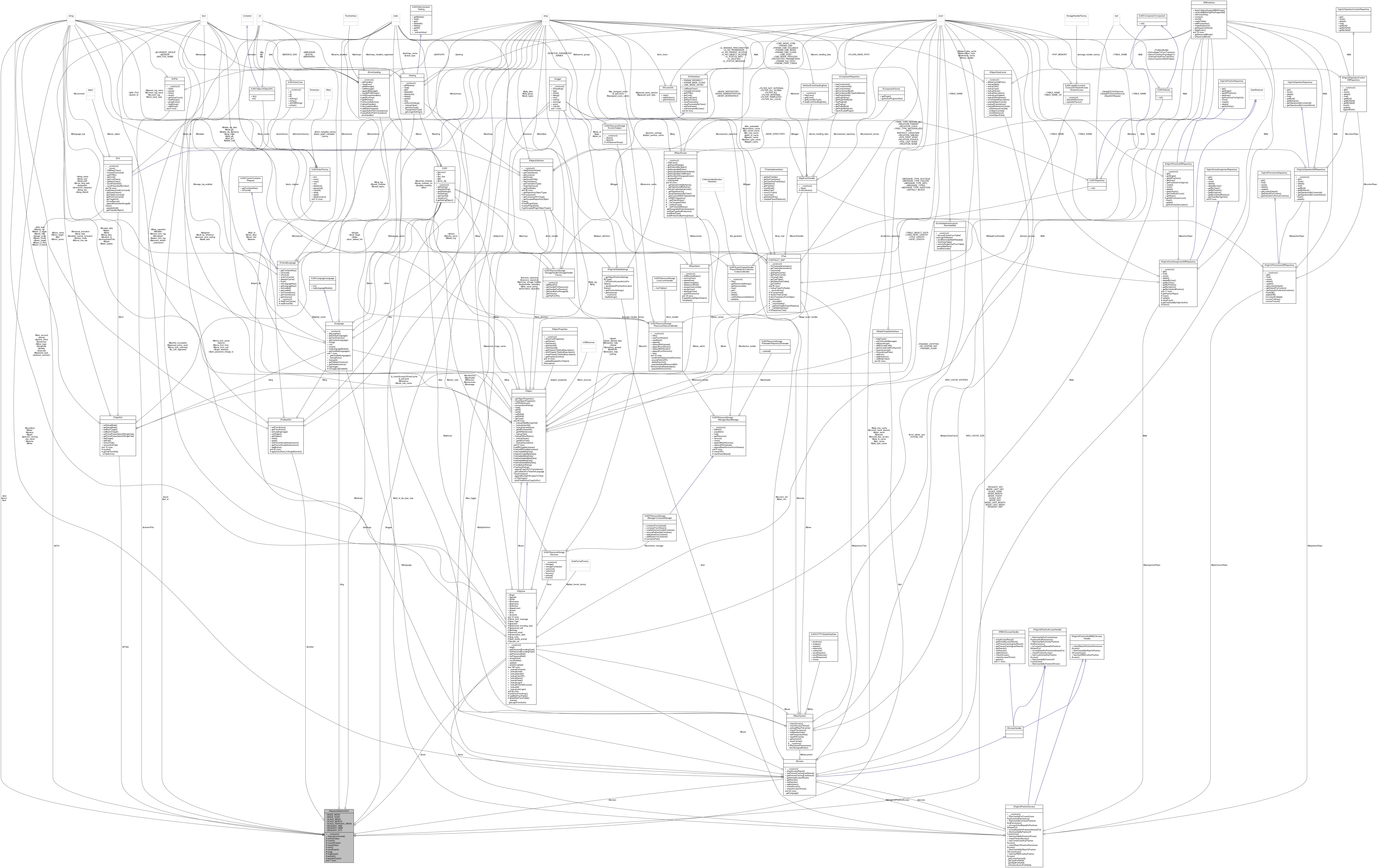

Collaboration diagram for ilSessionStatisticsGUI:

Public Member Functions
	__construct ()

	executeCommand ()

Protected Member Functions
	setSubTabs ()

	current (bool $a_export=false)

	currentExport ()

	importDate (string $a_incoming, int $a_default=null)

	short (bool $a_export=false)

	shortExport ()

	long ($a_export=false)

	longExport ()

	periodic ($a_export=false)

	periodicExport ()

	renderCurrentBasics ()

	buildData (int $a_time_from, int $a_time_to, string $a_title)

	render (array $a_data, int $a_scale, string $a_measure=null)

	getChart (array $a_data, string $a_title, int $a_scale=self::SCALE_DAY, string $a_measure=null)
	Build chart for active sessions. More...

	adaptDataToScale (int $a_scale, array $a_data)

	adminSync ()

	exportCSV (array $a_data, $a_scale)

Private Attributes
const	MODE_TODAY = 1

const	MODE_LAST_DAY = 2

const	MODE_LAST_WEEK = 3

const	MODE_LAST_MONTH = 4

const	MODE_DAY = 5

const	MODE_WEEK = 6

const	MODE_MONTH = 7

const	MODE_YEAR = 8

const	SCALE_DAY = 1

const	SCALE_WEEK = 2

const	SCALE_MONTH = 3

const	SCALE_YEAR = 4

const	SCALE_PERIODIC_WEEK = 5

const	REQUEST_SMD = "smd"

const	REQUEST_SMM = "smm"

const	REQUEST_SST = "sst"

const	REQUEST_STO = "sto"

const	REQUEST_REF = "ref_id"

ilCtrl	$ilCtrl

ilTabsGUI	$ilTabs

ilLanguage	$lng

ilGlobalTemplateInterface	$tpl

ilToolbarGUI	$toolbar

ilSetting	$settings

ilAccess	$access

ilIniFile	$clientIniFile

ilObjUser	$user

ilLogger	$logger

int	$ref_id = -1

int	$smd = null

string	$smm = null

string	$sst = null

string	$sto = null

Detailed Description

Author: Jörg Lützenkirchen luetz.nosp@m.enki.nosp@m.rchen.nosp@m.@lei.nosp@m.fos.c.nosp@m.om

Definition at line 24 of file class.ilSessionStatisticsGUI.php.

Constructor & Destructor Documentation

◆ __construct()

ilSessionStatisticsGUI::__construct ( )

Definition at line 64 of file class.ilSessionStatisticsGUI.php.

References $DIC, $http, ILIAS\Repository\access(), ILIAS\Repository\lng(), ILIAS\Repository\logger(), ILIAS\Repository\settings(), ILIAS\Repository\toolbar(), and ILIAS\Repository\user().

     {
         global $DIC;

         $this->ilCtrl = $DIC->ctrl();
         $this->ilTabs = $DIC->tabs();
         $this->lng = $DIC->language();
         $this->tpl = $DIC->ui()->mainTemplate();
         $this->toolbar = $DIC->toolbar();
         $this->settings = $DIC->settings();
         $this->access = $DIC->access();
         $this->clientIniFile = $DIC->clientIni();
         $this->user = $DIC->user();
         $this->logger = $DIC->logger()->auth();

         $http = $DIC->http();
         $kindlyTo = $DIC->refinery()->kindlyTo();
         if ($http->request()->getMethod() === "POST") {
             if ($http->wrapper()->post()->has(self::REQUEST_SMD)) {
                 $this->smd = $http->wrapper()->post()->retrieve(self::REQUEST_SMD, $kindlyTo->int());
             }
             if ($http->wrapper()->post()->has(self::REQUEST_SMM)) {
                 $this->smm = $http->wrapper()->post()->retrieve(self::REQUEST_SMM, $kindlyTo->string());
             }
             if ($http->wrapper()->post()->has(self::REQUEST_STO)) {
                 $this->sto = $http->wrapper()->post()->retrieve(self::REQUEST_STO, $kindlyTo->string());
             }
             if ($http->wrapper()->post()->has(self::REQUEST_SST)) {
                 $this->sst = $http->wrapper()->post()->retrieve(self::REQUEST_SST, $kindlyTo->string());
             }
         } else {
             if ($http->wrapper()->query()->has(self::REQUEST_SMD)) {
                 $this->smd = $http->wrapper()->query()->retrieve(self::REQUEST_SMD, $kindlyTo->int());
             }
             if ($http->wrapper()->query()->has(self::REQUEST_SMM)) {
                 $this->smm = $http->wrapper()->query()->retrieve(self::REQUEST_SMM, $kindlyTo->string());
             }
             if ($http->wrapper()->query()->has(self::REQUEST_STO)) {
                 $this->sto = $http->wrapper()->query()->retrieve(self::REQUEST_STO, $kindlyTo->string());
             }
             if ($http->wrapper()->query()->has(self::REQUEST_SST)) {
                 $this->sst = $http->wrapper()->query()->retrieve(self::REQUEST_SST, $kindlyTo->string());
             }
         }
         if ($http->wrapper()->query()->has(self::REQUEST_REF)) {
             $this->ref_id = $http->wrapper()->query()->retrieve(self::REQUEST_REF, $kindlyTo->int());
         }
     }

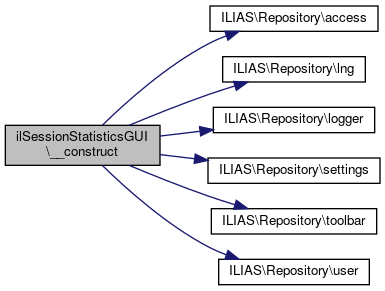

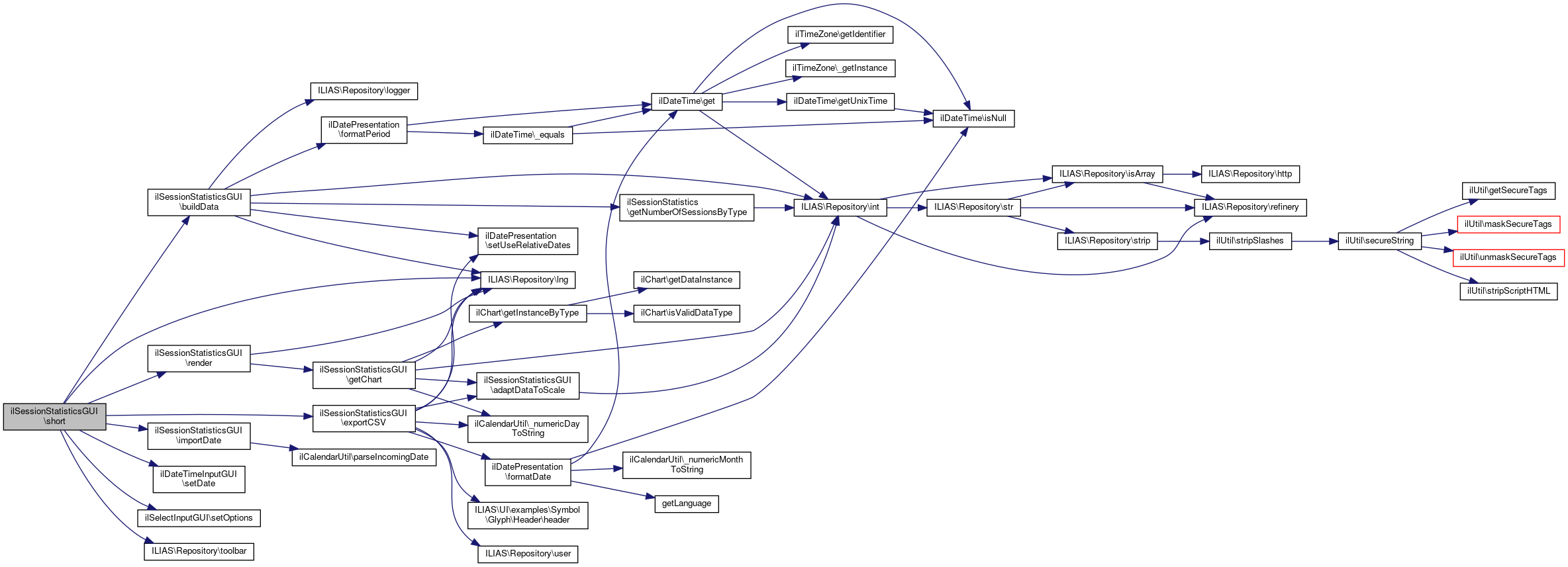

Here is the call graph for this function:

Member Function Documentation

◆ adaptDataToScale()

ilSessionStatisticsGUI::adaptDataToScale	(	int	$a_scale,
		array	$a_data
	)

protected

Definition at line 658 of file class.ilSessionStatisticsGUI.php.

References $id, and ILIAS\Repository\int().

Referenced by exportCSV(), and getChart().

                                                                     : array
     {
         // can we use original data?
         switch ($a_scale) {
             case self::SCALE_DAY:
                 // 96 values => ok
                 // fallthrough

             case self::SCALE_WEEK:
                 // 672 values => ok
                 return $a_data;
         }

         $tmp = [];
         foreach ($a_data as $item) {
             $date_parts = getdate($item["slot_begin"]);

             // aggregate slots for scale
             switch ($a_scale) {
                 default:
                 case self::SCALE_MONTH:
                     // aggregate to hours => 720 values
                     $slot = mktime($date_parts["hours"], 0, 0, $date_parts["mon"], $date_parts["mday"], $date_parts["year"]);
                     break;

                 case self::SCALE_YEAR:
                     // aggregate to days => 365 values
                     $slot = mktime(0, 0, 1, $date_parts["mon"], $date_parts["mday"], $date_parts["year"]);
                     break;

                 case self::SCALE_PERIODIC_WEEK:
                     // aggregate to weekdays => 672 values
                     $day = $date_parts["wday"];
                     if (!$day) {
                         $day = 7;
                     }
                     $slot = $day . date("His", $item["slot_begin"]);
                     break;
             }

             // process minx/max, prepare avg
             foreach ($item as $id => $value) {
                 switch (substr((string) $id, -3)) {
                     case "min":
                         if (!isset($tmp[$slot][$id]) || $value < $tmp[$slot][$id]) {
                             $tmp[$slot][$id] = $value;
                         }
                         break;

                     case "max":
                         if (!isset($tmp[$slot][$id]) || $value > $tmp[$slot][$id]) {
                             $tmp[$slot][$id] = $value;
                         }
                         break;

                     case "avg":
                         $tmp[$slot][$id][] = $value;
                         break;
                 }
             }
         }

         foreach ($tmp as $slot => $attr) {
             $tmp[$slot]["active_avg"] = (int) round(array_sum($attr["active_avg"]) / count($attr["active_avg"]));
             $tmp[$slot]["slot_begin"] = $slot;
         }
         ksort($tmp);
         return array_values($tmp);
     }

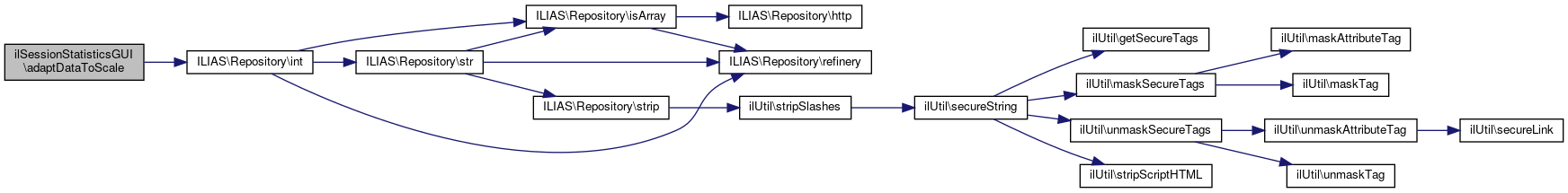

Here is the call graph for this function:

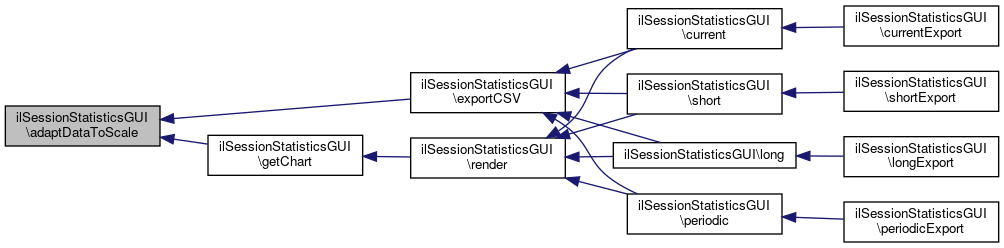

Here is the caller graph for this function:

◆ adminSync()

ilSessionStatisticsGUI::adminSync ( )

protected

Definition at line 728 of file class.ilSessionStatisticsGUI.php.

References ilSession\_destroyExpiredSessions(), ilSessionStatistics\aggretateRaw(), and ILIAS\Repository\lng().

                                   : void
     {
         // see ilSession::_writeData()
         $now = time();
         ilSession::_destroyExpiredSessions();
         ilSessionStatistics::aggretateRaw($now);

         $this->tpl->setOnScreenMessage('success', $this->lng->txt("trac_sync_session_stats_success"), true);
         $this->ilCtrl->redirect($this);
     }

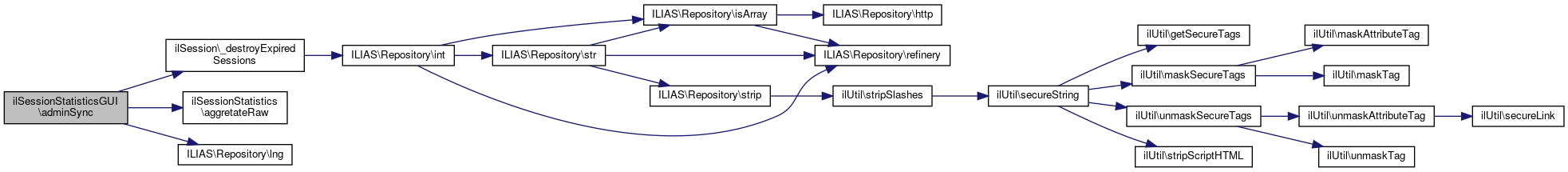

Here is the call graph for this function:

◆ buildData()

ilSessionStatisticsGUI::buildData	(	int	$a_time_from,
		int	$a_time_to,
		string	$a_title
	)

protected

Definition at line 495 of file class.ilSessionStatisticsGUI.php.

References $data, ilDatePresentation\formatPeriod(), ilSessionStatistics\getNumberOfSessionsByType(), IL_CAL_UNIX, ILIAS\Repository\int(), ILIAS\Repository\lng(), ILIAS\Repository\logger(), and ilDatePresentation\setUseRelativeDates().

Referenced by current(), long(), periodic(), and short().

                                                                                    : array
     {
         // basic data - time related

         $counters = ilSessionStatistics::getNumberOfSessionsByType($a_time_from, $a_time_to);
         $opened = (int) $counters["opened"];
         unset($counters["opened"]);


         // build center column

         $data = array();

         ilDatePresentation::setUseRelativeDates(false);
         $data["title"] = $a_title . " (" .
             ilDatePresentation::formatPeriod(
                 new ilDateTime($a_time_from, IL_CAL_UNIX),
                 new ilDateTime($a_time_to, IL_CAL_UNIX)
             ) . ")";

         $data["opened"] = array($this->lng->txt("trac_sessions_opened"), $opened);
         $data["closed"] = array($this->lng->txt("trac_sessions_closed"), array_sum($counters));
         foreach ($counters as $type => $counter) {
             $data["closed_details"][] = array($this->lng->txt("trac_" . $type), (int) $counter);
         }

         $data["active"] = ilSessionStatistics::getActiveSessions($a_time_from, $a_time_to);
         $this->logger->debug("Data to plot: " . var_export($data, true));
         return $data;
     }

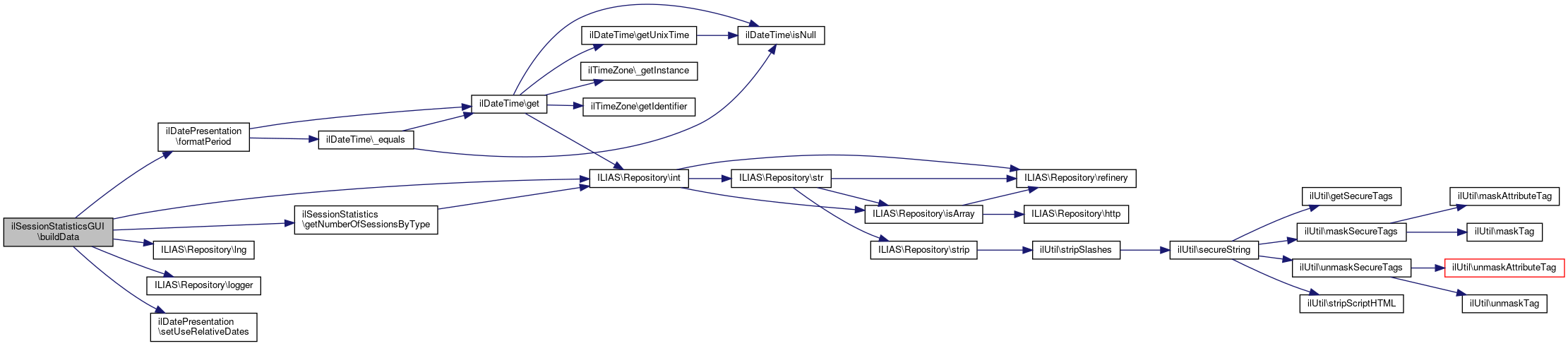

Here is the call graph for this function:

Here is the caller graph for this function:

◆ current()

ilSessionStatisticsGUI::current ( bool $a_export = false )

protected

Definition at line 150 of file class.ilSessionStatisticsGUI.php.

References $data, $smd, $smm, buildData(), exportCSV(), ILIAS\Repository\lng(), render(), renderCurrentBasics(), ilSelectInputGUI\setOptions(), and ILIAS\Repository\toolbar().

Referenced by currentExport().

                                                       : void
     {
         $this->ilTabs->activateSubTab("current");

         // current mode
         if (!$this->smd) {
             $mode = self::MODE_TODAY;
         } else {
             $mode = $this->smd;
         }

         // current measure
         if (!$this->smm) {
             $measure = "avg";
         } else {
             $measure = $this->smm;
         }

         switch ($mode) {
             default:
             case self::MODE_TODAY:
                 $time_from = strtotime("today");
                 $time_to = strtotime("tomorrow") - 1;
                 $scale = self::SCALE_DAY;
                 break;

             case self::MODE_LAST_DAY:
                 $time_to = time();
                 $time_from = $time_to - 60 * 60 * 24;
                 $scale = self::SCALE_DAY;
                 break;

             case self::MODE_LAST_WEEK:
                 $time_to = time();
                 $time_from = $time_to - 60 * 60 * 24 * 7;
                 $scale = self::SCALE_WEEK;
                 break;

             case self::MODE_LAST_MONTH:
                 $time_to = time();
                 $time_from = $time_to - 60 * 60 * 24 * 30;
                 $scale = self::SCALE_MONTH;
                 break;
         }

         $mode_options = array(
             self::MODE_TODAY => $this->lng->txt("trac_session_statistics_mode_today"),
             self::MODE_LAST_DAY => $this->lng->txt("trac_session_statistics_mode_last_day"),
             self::MODE_LAST_WEEK => $this->lng->txt("trac_session_statistics_mode_last_week"),
             self::MODE_LAST_MONTH => $this->lng->txt("trac_session_statistics_mode_last_month"));

         $title = $this->lng->txt("trac_current_system_load") . " - " . $mode_options[$mode];
         $data = $this->buildData($time_from, $time_to, $title);

         if (!$a_export) {
             // toolbar
             $this->toolbar->setFormAction($this->ilCtrl->getFormAction($this, "current"));

             $mode_selector = new ilSelectInputGUI("&nbsp;" . $this->lng->txt("trac_scale"), "smd");
             $mode_selector->setOptions($mode_options);
             $mode_selector->setValue($mode);
             $this->toolbar->addInputItem($mode_selector, true);

             $measure_options = array(
                 "avg" => $this->lng->txt("trac_session_active_avg"),
                 "min" => $this->lng->txt("trac_session_active_min"),
                 "max" => $this->lng->txt("trac_session_active_max"));

             $measure_selector = new ilSelectInputGUI("&nbsp;" . $this->lng->txt("trac_measure"), "smm");
             $measure_selector->setOptions($measure_options);
             $measure_selector->setValue($measure);
             $this->toolbar->addInputItem($measure_selector, true);

             $this->toolbar->addFormButton($this->lng->txt("ok"), "current");

             if (count($data["active"])) {
                 $this->toolbar->addSeparator();
                 $this->toolbar->addFormButton($this->lng->txt("export"), "currentExport");
             }

             $this->tpl->setContent($this->render($data, $scale, $measure));

             $this->tpl->setLeftContent($this->renderCurrentBasics());
         } else {
             $this->exportCSV($data, $scale);
         }
     }

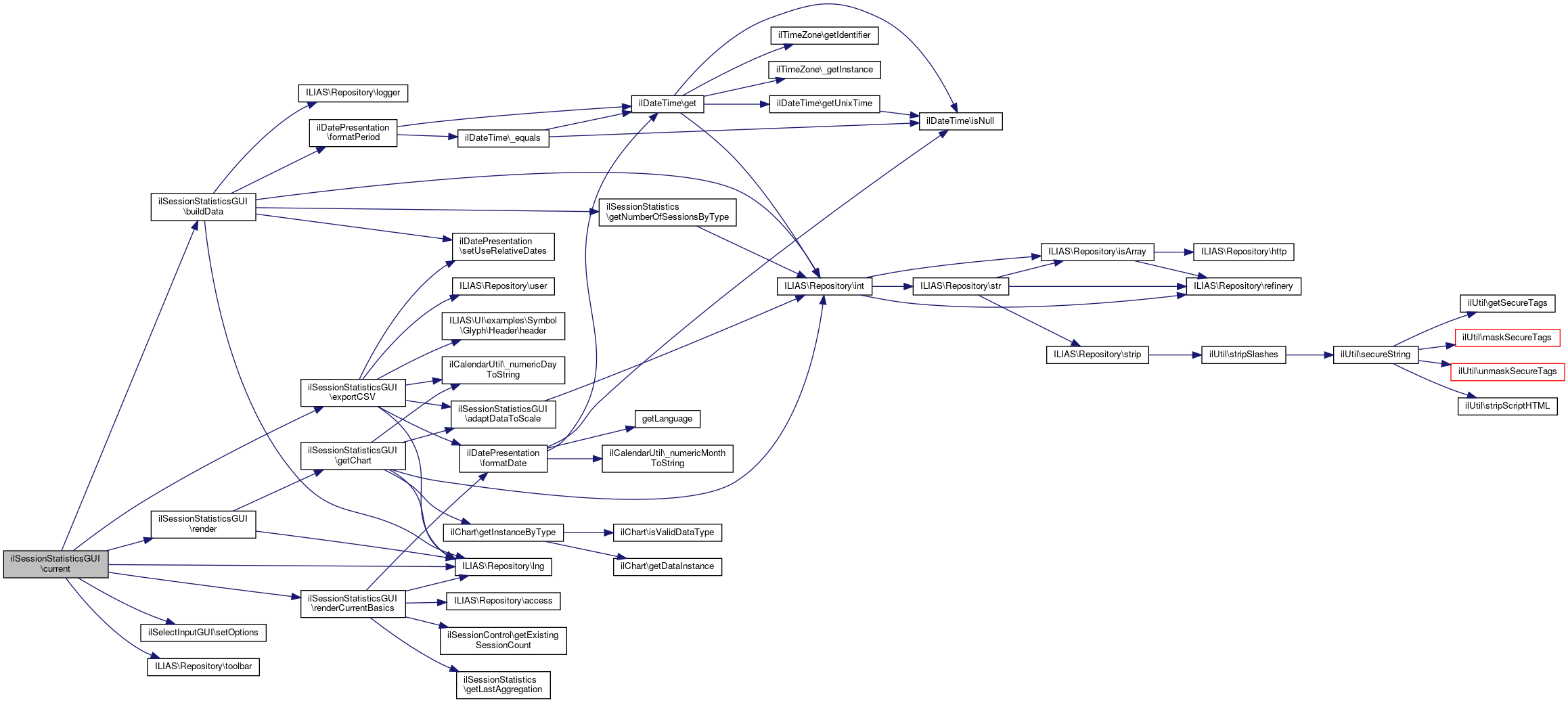

Here is the call graph for this function:

Here is the caller graph for this function:

◆ currentExport()

ilSessionStatisticsGUI::currentExport ( )

protected

Definition at line 238 of file class.ilSessionStatisticsGUI.php.

References current().

                                       : void
     {
         $this->current(true);
     }

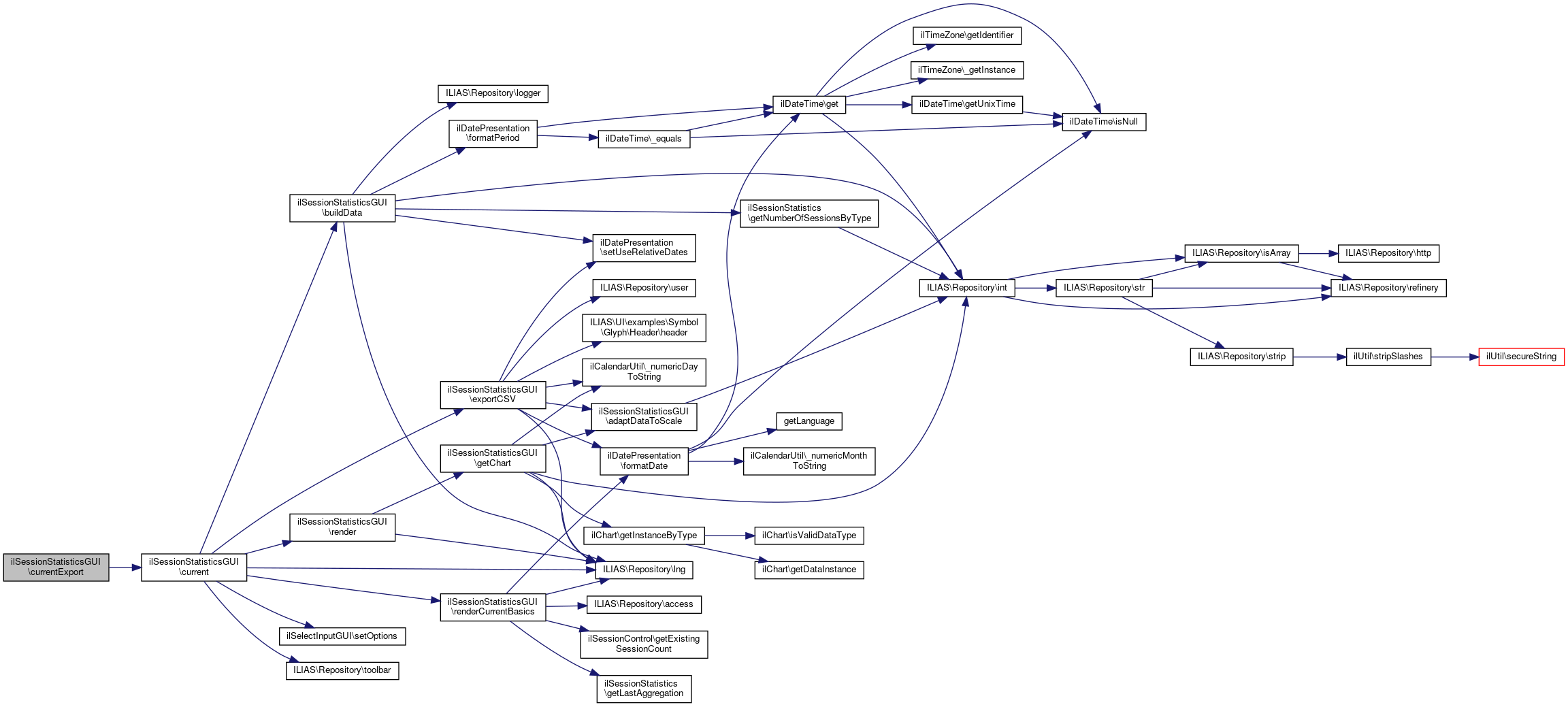

Here is the call graph for this function:

◆ executeCommand()

ilSessionStatisticsGUI::executeCommand ( )

Definition at line 113 of file class.ilSessionStatisticsGUI.php.

References setSubTabs().

                                     : bool
     {
         $this->setSubTabs();

         switch ($this->ilCtrl->getNextClass()) {
             default:
                 $cmd = $this->ilCtrl->getCmd("current");
                 $this->$cmd();
         }

         return true;
     }

Here is the call graph for this function:

◆ exportCSV()

ilSessionStatisticsGUI::exportCSV	(	array	$a_data,
			$a_scale
	)

protected

Definition at line 739 of file class.ilSessionStatisticsGUI.php.

References $filename, ilCalendarUtil\_numericDayToString(), adaptDataToScale(), exit, ilDatePresentation\formatDate(), ILIAS\UI\examples\Symbol\Glyph\Header\header(), IL_CAL_UNIX, ILIAS\Repository\lng(), ilDatePresentation\setUseRelativeDates(), and ILIAS\Repository\user().

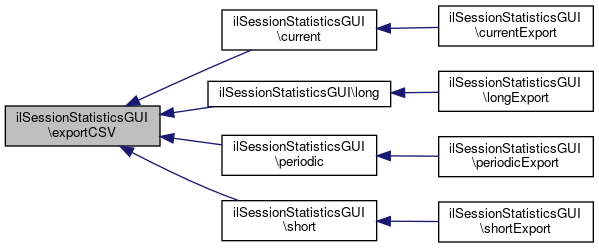

Referenced by current(), long(), periodic(), and short().

                                                          : void
     {
         ilDatePresentation::setUseRelativeDates(false);

         $csv = new ilCSVWriter();
         $csv->setSeparator(";");

         $now = time();

         // meta
         $meta = array(
             $this->lng->txt("trac_name_of_installation") => $this->clientIniFile->readVariable('client', 'name'),
             $this->lng->txt("trac_report_date") => ilDatePresentation::formatDate(new ilDateTime($now, IL_CAL_UNIX)),
             $this->lng->txt("trac_report_owner") => $this->user->getFullName(),
             );
         foreach ($a_data as $idx => $item) {
             switch ($idx) {
                 case "title":
                     $meta[$this->lng->txt("title")] = $item;
                     break;

                 case "active":
                     // nothing to do
                     break;

                 case "closed_details":
                     foreach ($item as $detail) {
                         $meta[$a_data["closed"][0] . " - " . $detail[0]] = $detail[1];
                     }
                     break;

                 default:
                     $meta[$item[0]] = $item[1];
                     break;
             }
         }
         foreach ($meta as $caption => $value) {
             $csv->addColumn(strip_tags((string) $caption));
             $csv->addColumn(strip_tags((string) $value));
             $csv->addRow();
         }
         $csv->addRow();

         // aggregate data
         $aggr_data = $this->adaptDataToScale($a_scale, $a_data["active"]);

         // header
         $first = $aggr_data;
         $first = array_keys(array_shift($first));
         foreach ($first as $column) {
             // split weekday and time slot again
             if ($a_scale === self::SCALE_PERIODIC_WEEK && $column === "slot_begin") {
                 $csv->addColumn("weekday");
                 $csv->addColumn("time");
             } else {
                 $csv->addColumn(strip_tags((string) $column));
             }
         }
         $csv->addRow();

         // data
         foreach ($aggr_data as $row) {
             foreach ($row as $column => $value) {
                 if (is_array($value)) {
                     $value = implode(', ', $value);
                 }
                 switch ($column) {
                     case "slot_begin":
                         // split weekday and time slot again
                         if ($a_scale === self::SCALE_PERIODIC_WEEK) {
                             $csv->addColumn(ilCalendarUtil::_numericDayToString((int) substr((string) $value, 0, 1)));
                             $value = substr((string) $value, 1, 2) . ":" . substr((string) $value, 3, 2);
                             break;
                         }
                         // fallthrough

                         // no break
                     case "slot_end":
                         $value = date("d.m.Y H:i", $value);
                         break;
                 }
                 $csv->addColumn(strip_tags((string) $value));
             }
             $csv->addRow();
         }

         // send
         $filename = "session_statistics_" . date("Ymd", $now) . ".csv";
         header("Content-type: text/comma-separated-values");
         header("Content-Disposition: attachment; filename=\"" . $filename . "\"");
         header("Expires: 0");
         header("Cache-Control: must-revalidate, post-check=0,pre-check=0");
         header("Pragma: public");
         echo $csv->getCSVString();
         exit();
     }

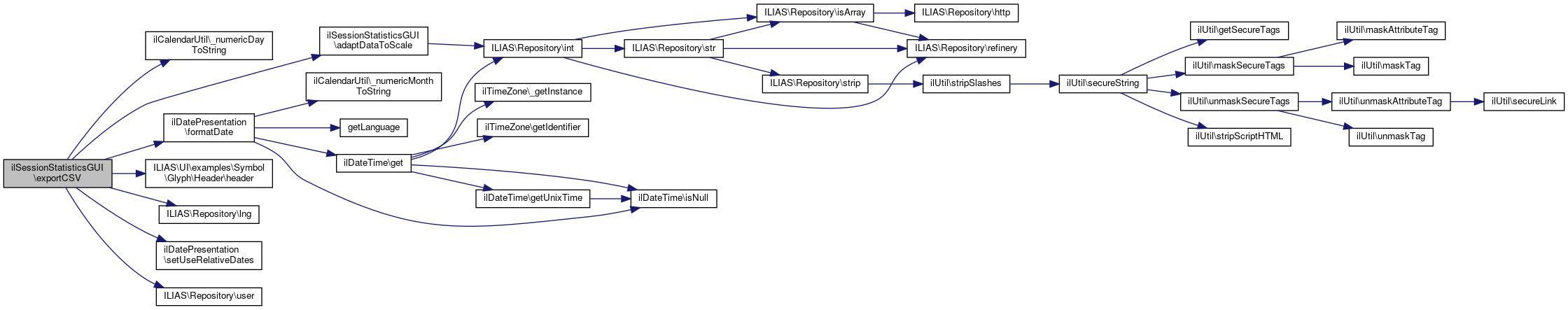

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getChart()

ilSessionStatisticsGUI::getChart	(	array	$a_data,
		string	$a_title,
		int	$a_scale = `self::SCALE_DAY`,
		string	$a_measure = `null`
	)

protected

Build chart for active sessions.

Definition at line 566 of file class.ilSessionStatisticsGUI.php.

References ilCalendarUtil\_numericDayToString(), adaptDataToScale(), ilChartGrid\DATA_LINES, ilChart\getInstanceByType(), ILIAS\Repository\int(), ILIAS\Repository\lng(), and ilChart\TYPE_GRID.

Referenced by render().

                                                                                                                        : string
     {
         $chart = ilChart::getInstanceByType(ilChart::TYPE_GRID, "objstacc");
         $chart->setSize("700", "500");
         $chart->setYAxisToInteger(true);

         $legend = new ilChartLegend();
         $chart->setLegend($legend);

         if (!$a_measure) {
             $measures = ["min", "avg", "max"];
         } else {
             $measures = [$a_measure];
         }

         $colors_map = array("min" => "#00cc00",
             "avg" => "#0000cc",
             "max" => "#cc00cc");

         $colors = $act_line = array();
         foreach ($measures as $measure) {
             $act_line[$measure] = $chart->getDataInstance(ilChartGrid::DATA_LINES);
             $act_line[$measure]->setLineSteps(true);
             $act_line[$measure]->setLabel($this->lng->txt("trac_session_active_" . $measure));
             $colors[] = $colors_map[$measure];
         }

         $chart->setColors($colors);

         $chart_data = $this->adaptDataToScale($a_scale, $a_data);

         $scale = ceil(count($chart_data) / 5);
         $labels = array();
         foreach ($chart_data as $idx => $item) {
             $date = $item["slot_begin"];

             if ($a_scale === self::SCALE_PERIODIC_WEEK || !($idx % ceil($scale))) {
                 switch ($a_scale) {
                     case self::SCALE_DAY:
                         $labels[$date] = date("H:i", $date);
                         break;

                     case self::SCALE_WEEK:
                         $labels[$date] = date("d.m. H", $date) . "h";
                         break;

                     case self::SCALE_MONTH:
                         $labels[$date] = date("d.m.", $date);
                         break;

                     case self::SCALE_YEAR:
                         $labels[$date] = date("Y-m", $date);
                         break;

                     case self::SCALE_PERIODIC_WEEK:
                         $day = substr((string) $date, 0, 1);
                         $hour = substr((string) $date, 1, 2);
                         $min = substr((string) $date, 3, 2);

                         // build ascending scale from day values
                         $day_value = ($day - 1) * 60 * 60 * 24;
                         $date = $day_value + $hour * 60 * 60 + $min * 60;

                         // 6-hour interval labels
                         if ((!isset($old_hour) || $hour != $old_hour) && $hour && $hour % 6 == 0) {
                             $labels[$date] = $hour;
                             $old_hour = $hour;
                         }
                         // day label
                         if (!isset($old_day) || $day != $old_day) {
                             $labels[$date] = ilCalendarUtil::_numericDayToString((int) $day, false);
                             $old_day = $day;
                         }
                         break;
                 }
             }

             foreach ($measures as $measure) {
                 $value = (int) $item["active_" . $measure];
                 $act_line[$measure]->addPoint($date, $value);
             }
         }

         foreach ($act_line as $line) {
             $chart->addData($line);
         }

         $chart->setTicks($labels, null, true);

         return $chart->getHTML();
     }

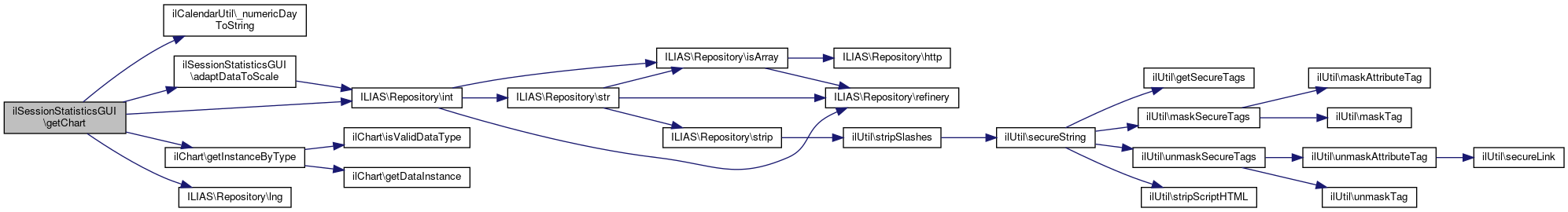

Here is the call graph for this function:

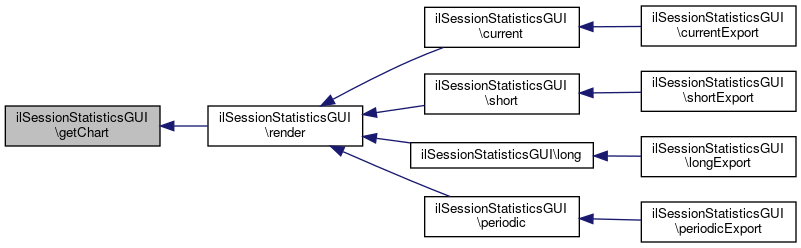

Here is the caller graph for this function:

◆ importDate()

ilSessionStatisticsGUI::importDate	(	string	$a_incoming,
		int	$a_default = `null`
	)

protected

Returns: array|int|string|null

Definition at line 246 of file class.ilSessionStatisticsGUI.php.

References IL_CAL_UNIX, and ilCalendarUtil\parseIncomingDate().

Referenced by long(), periodic(), and short().

     {
         if (!$a_default) {
             $a_default = time();
         }

         $parsed = ilCalendarUtil::parseIncomingDate($a_incoming);
         return $parsed
             ? $parsed->get(IL_CAL_UNIX)
             : $a_default;
     }

Here is the call graph for this function:

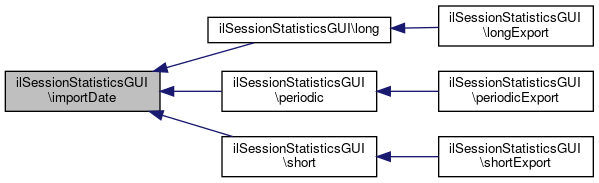

Here is the caller graph for this function:

◆ long()

ilSessionStatisticsGUI::long ( $a_export = false )

protected

Definition at line 342 of file class.ilSessionStatisticsGUI.php.

References $data, $smd, buildData(), exportCSV(), IL_CAL_UNIX, importDate(), ILIAS\Repository\lng(), render(), ilDateTimeInputGUI\setDate(), ilSelectInputGUI\setOptions(), and ILIAS\Repository\toolbar().

Referenced by longExport().

                                               : void
     {
         $this->ilTabs->activateSubTab("long");

         // current start
         //TODO validate input
         $time_to = $this->importDate((string) $this->sst);

         // current mode
         if (!$this->smd) {
             $mode = self::MODE_WEEK;
         } else {
             $mode = $this->smd;
         }

         switch ($mode) {
             default:
             case self::MODE_WEEK:
                 $time_from = $time_to - 60 * 60 * 24 * 7;
                 $scale = self::SCALE_WEEK;
                 break;

             case self::MODE_MONTH:
                 $time_from = $time_to - 60 * 60 * 24 * 30;
                 $scale = self::SCALE_MONTH;
                 break;

             case self::MODE_YEAR:
                 $time_from = $time_to - 60 * 60 * 24 * 365;
                 $scale = self::SCALE_YEAR;
                 break;
         }

         $mode_options = array(
                 self::MODE_WEEK => $this->lng->txt("trac_session_statistics_mode_week"),
                 self::MODE_MONTH => $this->lng->txt("trac_session_statistics_mode_month"),
                 self::MODE_YEAR => $this->lng->txt("trac_session_statistics_mode_year")
             );

         $title = $this->lng->txt("trac_long_system_load") . " - " . $mode_options[$mode];
         $data = $this->buildData($time_from, $time_to, $title);

         if (!$a_export) {
             // toolbar
             $this->toolbar->setFormAction($this->ilCtrl->getFormAction($this, "long"));

             $start_selector = new ilDateTimeInputGUI($this->lng->txt("trac_end_at"), "sst");
             $start_selector->setDate(new ilDate($time_to, IL_CAL_UNIX));
             $this->toolbar->addInputItem($start_selector, true);

             $mode_selector = new ilSelectInputGUI("&nbsp;" . $this->lng->txt("trac_scale"), "smd");
             $mode_selector->setOptions($mode_options);
             $mode_selector->setValue($mode);
             $this->toolbar->addInputItem($mode_selector, true);

             $this->toolbar->addFormButton($this->lng->txt("ok"), "long");

             if (count($data["active"])) {
                 $this->toolbar->addSeparator();
                 $this->toolbar->addFormButton($this->lng->txt("export"), "longExport");
             }

             $this->tpl->setContent($this->render($data, $scale));
         } else {
             $this->exportCSV($data, $scale);
         }
     }

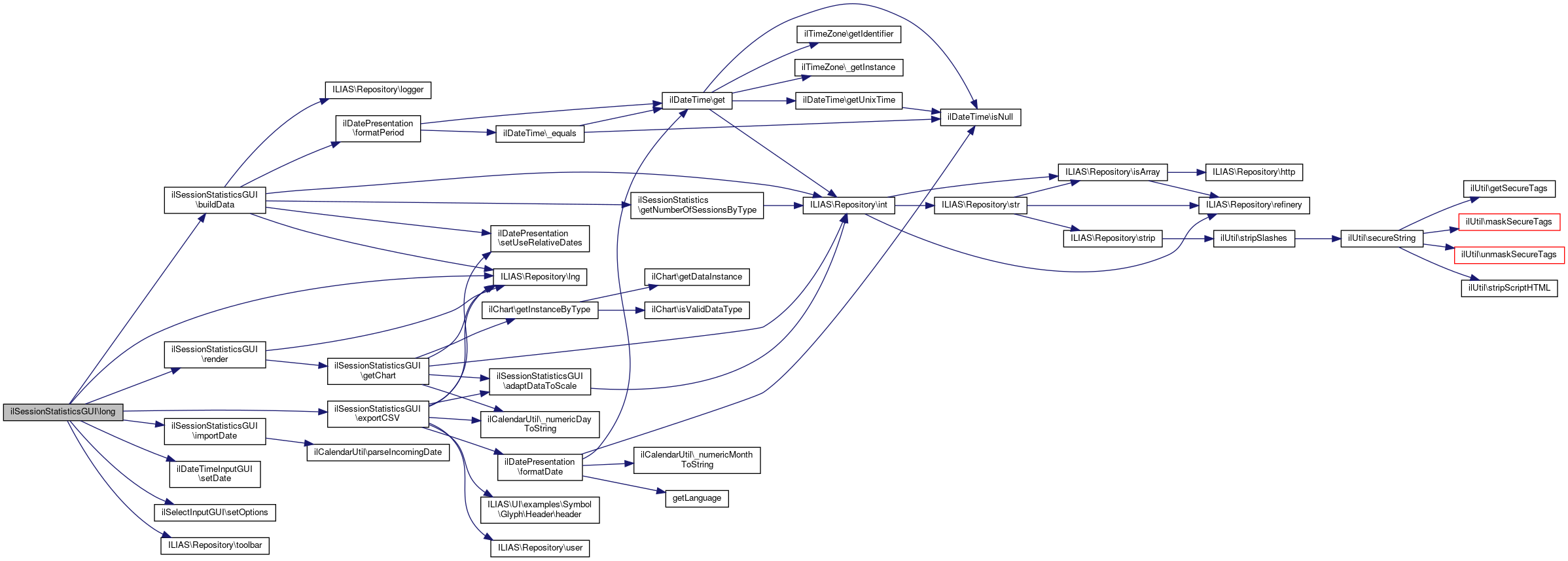

Here is the call graph for this function:

Here is the caller graph for this function:

◆ longExport()

ilSessionStatisticsGUI::longExport ( )

protected

Definition at line 410 of file class.ilSessionStatisticsGUI.php.

References long().

                                    : void
     {
         $this->long(true);
     }

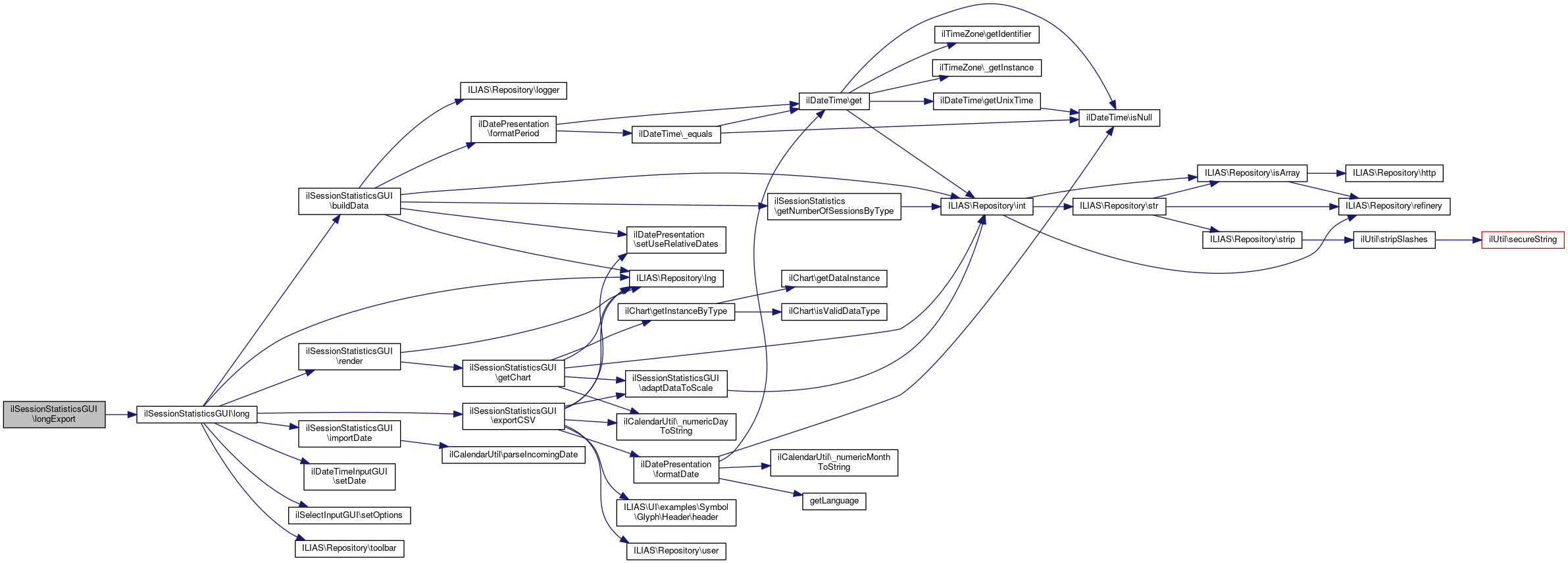

Here is the call graph for this function:

◆ periodic()

ilSessionStatisticsGUI::periodic ( $a_export = false )

protected

Definition at line 415 of file class.ilSessionStatisticsGUI.php.

References $data, buildData(), exportCSV(), IL_CAL_UNIX, importDate(), ILIAS\Repository\lng(), render(), ilDateTimeInputGUI\setDate(), and ILIAS\Repository\toolbar().

Referenced by periodicExport().

                                                   : void
     {
         $this->ilTabs->activateSubTab("periodic");

         //TODO validate input
         // current start
         $time_to = $this->importDate((string) $this->sst);

         // current end
         $time_from = $this->importDate((string) $this->sto, strtotime("-7 days"));

         // mixed up dates?
         if ($time_to < $time_from) {
             $tmp = $time_to;
             $time_to = $time_from;
             $time_from = $tmp;
         }

         $title = $this->lng->txt("trac_periodic_system_load");
         $data = $this->buildData($time_from, $time_to, $title);

         if (!$a_export) {
             // toolbar
             $this->toolbar->setFormAction($this->ilCtrl->getFormAction($this, "periodic"));

             $end_selector = new ilDateTimeInputGUI($this->lng->txt("trac_begin_at"), "sto");
             $end_selector->setDate(new ilDate($time_from, IL_CAL_UNIX));
             $this->toolbar->addInputItem($end_selector, true);

             $start_selector = new ilDateTimeInputGUI($this->lng->txt("trac_end_at"), "sst");
             $start_selector->setDate(new ilDate($time_to, IL_CAL_UNIX));
             $this->toolbar->addInputItem($start_selector, true);

             $this->toolbar->addFormButton($this->lng->txt("ok"), "periodic");

             if (count($data["active"])) {
                 $this->toolbar->addSeparator();
                 $this->toolbar->addFormButton($this->lng->txt("export"), "periodicExport");
             }

             $this->tpl->setContent($this->render($data, self::SCALE_PERIODIC_WEEK));
         } else {
             $this->exportCSV($data, self::SCALE_PERIODIC_WEEK);
         }
     }

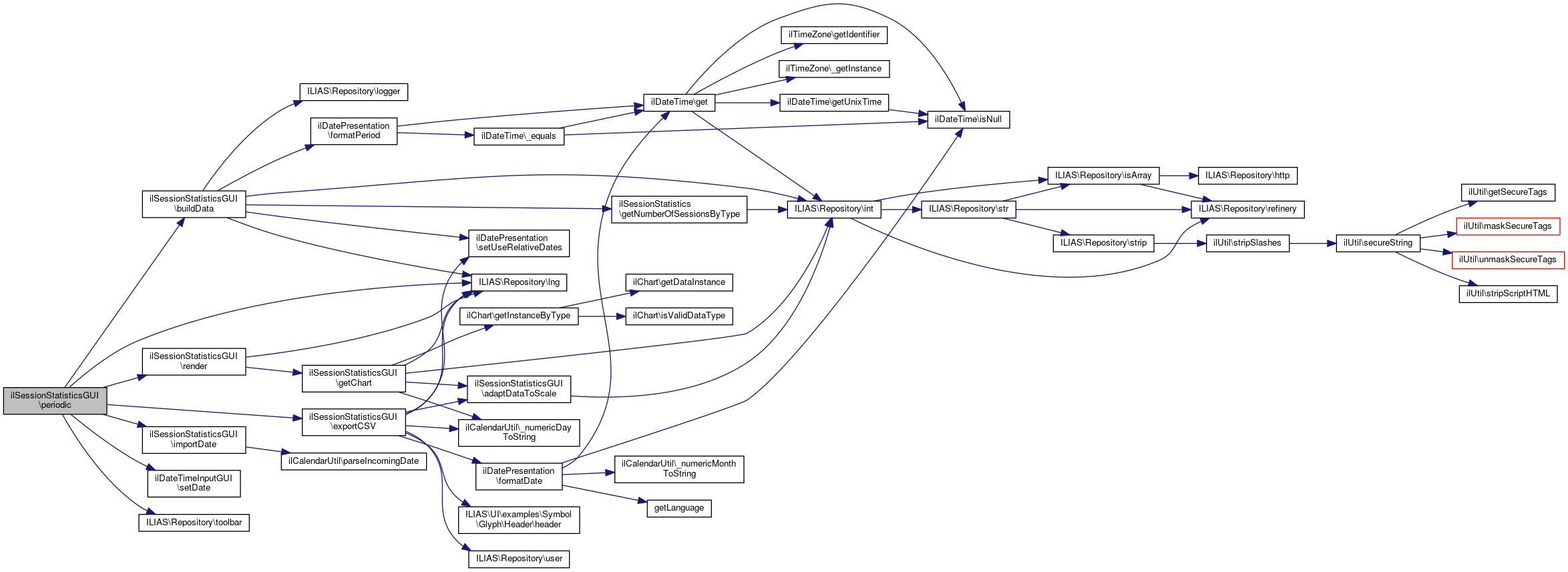

Here is the call graph for this function:

Here is the caller graph for this function:

◆ periodicExport()

ilSessionStatisticsGUI::periodicExport ( )

protected

Definition at line 461 of file class.ilSessionStatisticsGUI.php.

References periodic().

                                        : void
     {
         $this->periodic(true);
     }

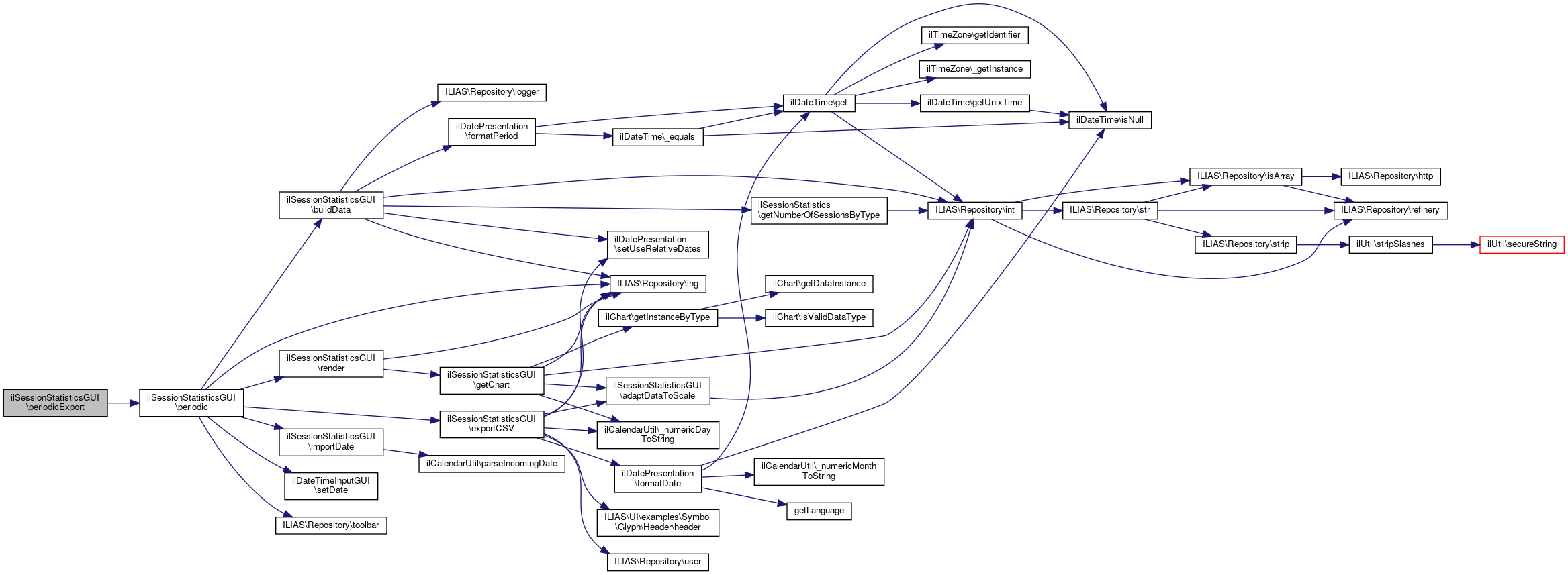

Here is the call graph for this function:

◆ render()

ilSessionStatisticsGUI::render	(	array	$a_data,
		int	$a_scale,
		string	$a_measure = `null`
	)

protected

Definition at line 526 of file class.ilSessionStatisticsGUI.php.

References getChart(), and ILIAS\Repository\lng().

Referenced by current(), long(), periodic(), and short().

                                                                                     : string
     {
         $center = new ilTemplate("tpl.session_statistics_center.html", true, true, "components/ILIAS/Authentication");

         foreach ($a_data as $idx => $item) {
             switch ($idx) {
                 case "active":
                 case "title":
                     // nothing to do
                     break;

                 case "closed_details":
                     $center->setCurrentBlock("closed_details");
                     foreach ($item as $detail) {
                         $center->setVariable("CAPTION_CLOSED_DETAILS", $detail[0]);
                         $center->setVariable("VALUE_CLOSED_DETAILS", $detail[1]);
                         $center->parseCurrentBlock();
                     }
                     break;

                 default:
                     $tpl_var = strtoupper($idx);
                     $center->setVariable("CAPTION_" . $tpl_var, $item[0]);
                     $center->setVariable("VALUE_" . $tpl_var, $item[1]);
                     break;
             }
         }

         if ($a_data["active"]) {
             $center->setVariable("CHART", $this->getChart($a_data["active"], $a_data["title"], $a_scale, $a_measure));
         } else {
             $this->tpl->setOnScreenMessage('info', $this->lng->txt("trac_session_statistics_no_data"));
         }

         return $center->get();
     }

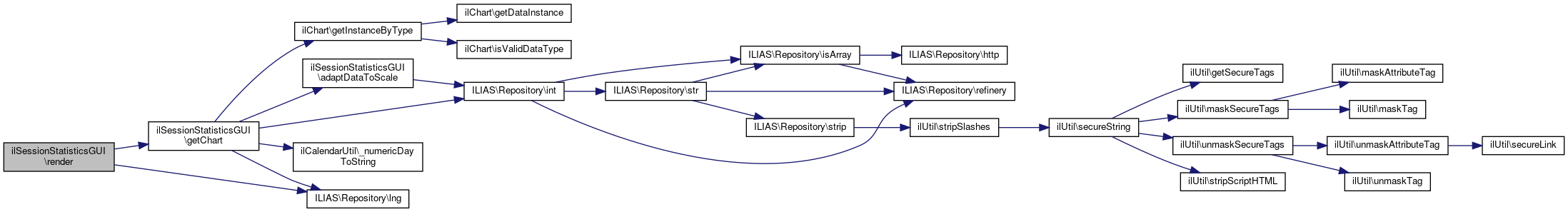

Here is the call graph for this function:

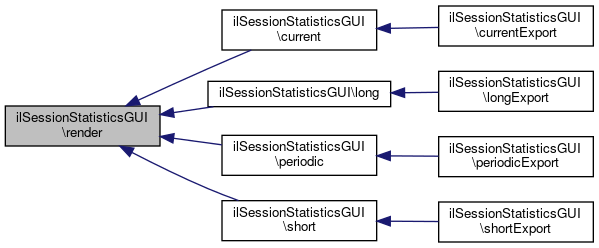

Here is the caller graph for this function:

◆ renderCurrentBasics()

ilSessionStatisticsGUI::renderCurrentBasics ( )

protected

Definition at line 466 of file class.ilSessionStatisticsGUI.php.

References ilSessionControl\$session_types_controlled, ILIAS\Repository\access(), ilDatePresentation\formatDate(), ilSessionControl\getExistingSessionCount(), ilSessionStatistics\getLastAggregation(), IL_CAL_UNIX, and ILIAS\Repository\lng().

Referenced by current().

                                             : string
     {
         // basic data - not time related

         $active = ilSessionControl::getExistingSessionCount(ilSessionControl::$session_types_controlled);

         $last_aggr = new ilDateTime(ilSessionStatistics::getLastAggregation(), IL_CAL_UNIX);


         // build left column

         $left = new ilTemplate("tpl.session_statistics_left.html", true, true, "components/ILIAS/Authentication");

         $left->setVariable("CAPTION_CURRENT", $this->lng->txt("users_online"));
         $left->setVariable("VALUE_CURRENT", $active);

         $left->setVariable("CAPTION_LAST_AGGR", $this->lng->txt("trac_last_aggregation"));
         $left->setVariable("VALUE_LAST_AGGR", ilDatePresentation::formatDate($last_aggr));

         // sync button
         if ($this->access->checkAccess("write", "", $this->ref_id)) {
             $left->setVariable("URL_SYNC", $this->ilCtrl->getFormAction($this, "adminSync"));
             $left->setVariable("CMD_SYNC", "adminSync");
             $left->setVariable("TXT_SYNC", $this->lng->txt("trac_sync_session_stats"));
         }

         return $left->get();
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setSubTabs()

ilSessionStatisticsGUI::setSubTabs ( )

protected

Definition at line 126 of file class.ilSessionStatisticsGUI.php.

References ILIAS\Repository\lng().

Referenced by executeCommand().

                                    : void
     {
         $this->ilTabs->addSubTab(
             "current",
             $this->lng->txt("trac_current_system_load"),
             $this->ilCtrl->getLinkTarget($this, "current")
         );
         $this->ilTabs->addSubTab(
             "short",
             $this->lng->txt("trac_short_system_load"),
             $this->ilCtrl->getLinkTarget($this, "short")
         );
         $this->ilTabs->addSubTab(
             "long",
             $this->lng->txt("trac_long_system_load"),
             $this->ilCtrl->getLinkTarget($this, "long")
         );
         $this->ilTabs->addSubTab(
             "periodic",
             $this->lng->txt("trac_periodic_system_load"),
             $this->ilCtrl->getLinkTarget($this, "periodic")
         );
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ short()

ilSessionStatisticsGUI::short ( bool $a_export = false )

protected

Definition at line 258 of file class.ilSessionStatisticsGUI.php.

References $data, $smd, $smm, buildData(), exportCSV(), IL_CAL_UNIX, importDate(), ILIAS\Repository\lng(), render(), ilDateTimeInputGUI\setDate(), ilSelectInputGUI\setOptions(), and ILIAS\Repository\toolbar().

Referenced by shortExport().

                                                     : void
     {
         $this->ilTabs->activateSubTab("short");

         //TODO validate input
         // current start
         $time_to = $this->importDate((string) $this->sst);

         // current mode
         if (!$this->smd) {
             $mode = self::MODE_DAY;
         } else {
             $mode = $this->smd;
         }

         // current measure
         if (!$this->smm) {
             $measure = "avg";
         } else {
             $measure = $this->smm;
         }

         switch ($mode) {
             default:
             case self::MODE_DAY:
                 $time_from = $time_to - 60 * 60 * 24;
                 $scale = self::SCALE_DAY;
                 break;

             case self::MODE_WEEK:
                 $time_from = $time_to - 60 * 60 * 24 * 7;
                 $scale = self::SCALE_WEEK;
                 break;
         }

         $mode_options = array(
                 self::MODE_DAY => $this->lng->txt("trac_session_statistics_mode_day"),
                 self::MODE_WEEK => $this->lng->txt("trac_session_statistics_mode_week")
             );

         $title = $this->lng->txt("trac_short_system_load") . " - " . $mode_options[$mode];
         $data = $this->buildData($time_from, $time_to, $title);

         if (!$a_export) {
             // toolbar
             $this->toolbar->setFormAction($this->ilCtrl->getFormAction($this, "short"));

             $start_selector = new ilDateTimeInputGUI($this->lng->txt("trac_end_at"), "sst");
             $start_selector->setDate(new ilDate($time_to, IL_CAL_UNIX));
             $this->toolbar->addInputItem($start_selector, true);

             $mode_selector = new ilSelectInputGUI("&nbsp;" . $this->lng->txt("trac_scale"), "smd");
             $mode_selector->setOptions($mode_options);
             $mode_selector->setValue($mode);
             $this->toolbar->addInputItem($mode_selector, true);

             $measure_options = array(
                 "avg" => $this->lng->txt("trac_session_active_avg"),
                 "min" => $this->lng->txt("trac_session_active_min"),
                 "max" => $this->lng->txt("trac_session_active_max"));

             $measure_selector = new ilSelectInputGUI("&nbsp;" . $this->lng->txt("trac_measure"), "smm");
             $measure_selector->setOptions($measure_options);
             $measure_selector->setValue($measure);
             $this->toolbar->addInputItem($measure_selector, true);

             $this->toolbar->addFormButton($this->lng->txt("ok"), "short");

             if (count($data["active"])) {
                 $this->toolbar->addSeparator();
                 $this->toolbar->addFormButton($this->lng->txt("export"), "shortExport");
             }

             $this->tpl->setContent($this->render($data, $scale, $measure));
         } else {
             $this->exportCSV($data, $scale);
         }
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ shortExport()

ilSessionStatisticsGUI::shortExport ( )

protected

Definition at line 337 of file class.ilSessionStatisticsGUI.php.

References short().

                                     : void
     {
         $this->short(true);
     }

Here is the call graph for this function:

Field Documentation

◆ $access

ilAccess ilSessionStatisticsGUI::$access

private

Definition at line 53 of file class.ilSessionStatisticsGUI.php.

◆ $clientIniFile

ilIniFile ilSessionStatisticsGUI::$clientIniFile

private

Definition at line 54 of file class.ilSessionStatisticsGUI.php.

◆ $ilCtrl

ilCtrl ilSessionStatisticsGUI::$ilCtrl

private

Definition at line 47 of file class.ilSessionStatisticsGUI.php.

◆ $ilTabs

ilTabsGUI ilSessionStatisticsGUI::$ilTabs

private

Definition at line 48 of file class.ilSessionStatisticsGUI.php.

◆ $lng

ilLanguage ilSessionStatisticsGUI::$lng

private

Definition at line 49 of file class.ilSessionStatisticsGUI.php.

◆ $logger

ilLogger ilSessionStatisticsGUI::$logger

private

Definition at line 56 of file class.ilSessionStatisticsGUI.php.

◆ $ref_id

int ilSessionStatisticsGUI::$ref_id = -1

private

Definition at line 58 of file class.ilSessionStatisticsGUI.php.

◆ $settings

ilSetting ilSessionStatisticsGUI::$settings

private

Definition at line 52 of file class.ilSessionStatisticsGUI.php.

◆ $smd

int ilSessionStatisticsGUI::$smd = null

private

Definition at line 59 of file class.ilSessionStatisticsGUI.php.

Referenced by current(), long(), and short().

◆ $smm

string ilSessionStatisticsGUI::$smm = null

private

Definition at line 60 of file class.ilSessionStatisticsGUI.php.

Referenced by current(), and short().

◆ $sst

string ilSessionStatisticsGUI::$sst = null

private

Definition at line 61 of file class.ilSessionStatisticsGUI.php.

◆ $sto

string ilSessionStatisticsGUI::$sto = null

private

Definition at line 62 of file class.ilSessionStatisticsGUI.php.

◆ $toolbar

ilToolbarGUI ilSessionStatisticsGUI::$toolbar

private

Definition at line 51 of file class.ilSessionStatisticsGUI.php.

◆ $tpl

ilGlobalTemplateInterface ilSessionStatisticsGUI::$tpl

private

Definition at line 50 of file class.ilSessionStatisticsGUI.php.

◆ $user

ilObjUser ilSessionStatisticsGUI::$user

private

Definition at line 55 of file class.ilSessionStatisticsGUI.php.

◆ MODE_DAY

const ilSessionStatisticsGUI::MODE_DAY = 5

private

Definition at line 30 of file class.ilSessionStatisticsGUI.php.

◆ MODE_LAST_DAY

const ilSessionStatisticsGUI::MODE_LAST_DAY = 2

private

Definition at line 27 of file class.ilSessionStatisticsGUI.php.

◆ MODE_LAST_MONTH

const ilSessionStatisticsGUI::MODE_LAST_MONTH = 4

private

Definition at line 29 of file class.ilSessionStatisticsGUI.php.

◆ MODE_LAST_WEEK

const ilSessionStatisticsGUI::MODE_LAST_WEEK = 3

private

Definition at line 28 of file class.ilSessionStatisticsGUI.php.

◆ MODE_MONTH

const ilSessionStatisticsGUI::MODE_MONTH = 7

private

Definition at line 32 of file class.ilSessionStatisticsGUI.php.

◆ MODE_TODAY

const ilSessionStatisticsGUI::MODE_TODAY = 1

private

Definition at line 26 of file class.ilSessionStatisticsGUI.php.

◆ MODE_WEEK

const ilSessionStatisticsGUI::MODE_WEEK = 6

private

Definition at line 31 of file class.ilSessionStatisticsGUI.php.

◆ MODE_YEAR

const ilSessionStatisticsGUI::MODE_YEAR = 8

private

Definition at line 33 of file class.ilSessionStatisticsGUI.php.

◆ REQUEST_REF

const ilSessionStatisticsGUI::REQUEST_REF = "ref_id"

private

Definition at line 45 of file class.ilSessionStatisticsGUI.php.

◆ REQUEST_SMD

const ilSessionStatisticsGUI::REQUEST_SMD = "smd"

private

Definition at line 41 of file class.ilSessionStatisticsGUI.php.

◆ REQUEST_SMM

const ilSessionStatisticsGUI::REQUEST_SMM = "smm"

private

Definition at line 42 of file class.ilSessionStatisticsGUI.php.

◆ REQUEST_SST

const ilSessionStatisticsGUI::REQUEST_SST = "sst"

private

Definition at line 43 of file class.ilSessionStatisticsGUI.php.

◆ REQUEST_STO

const ilSessionStatisticsGUI::REQUEST_STO = "sto"

private

Definition at line 44 of file class.ilSessionStatisticsGUI.php.

◆ SCALE_DAY

const ilSessionStatisticsGUI::SCALE_DAY = 1

private

Definition at line 35 of file class.ilSessionStatisticsGUI.php.

◆ SCALE_MONTH

const ilSessionStatisticsGUI::SCALE_MONTH = 3

private

Definition at line 37 of file class.ilSessionStatisticsGUI.php.

◆ SCALE_PERIODIC_WEEK

const ilSessionStatisticsGUI::SCALE_PERIODIC_WEEK = 5

private

Definition at line 39 of file class.ilSessionStatisticsGUI.php.

◆ SCALE_WEEK

const ilSessionStatisticsGUI::SCALE_WEEK = 2

private

Definition at line 36 of file class.ilSessionStatisticsGUI.php.

◆ SCALE_YEAR

const ilSessionStatisticsGUI::SCALE_YEAR = 4

private

Definition at line 38 of file class.ilSessionStatisticsGUI.php.

The documentation for this class was generated from the following file:

components/ILIAS/Authentication/classes/class.ilSessionStatisticsGUI.php

Public Member Functions

Protected Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ __construct()

Member Function Documentation

◆ adaptDataToScale()

◆ adminSync()

◆ buildData()

◆ current()

◆ currentExport()

◆ executeCommand()

◆ exportCSV()

◆ getChart()

◆ importDate()

◆ long()

◆ longExport()

◆ periodic()

◆ periodicExport()

◆ render()

◆ renderCurrentBasics()

◆ setSubTabs()

◆ short()

◆ shortExport()

Field Documentation

◆ $access

◆ $clientIniFile

◆ $ilCtrl

◆ $ilTabs

◆ $lng

◆ $logger

◆ $ref_id

◆ $settings

◆ $smd

◆ $smm

◆ $sst

◆ $sto

◆ $toolbar

◆ $tpl

◆ $user

◆ MODE_DAY

◆ MODE_LAST_DAY

◆ MODE_LAST_MONTH

◆ MODE_LAST_WEEK

◆ MODE_MONTH

◆ MODE_TODAY

◆ MODE_WEEK

◆ MODE_YEAR

◆ REQUEST_REF

◆ REQUEST_SMD

◆ REQUEST_SMM

◆ REQUEST_SST

◆ REQUEST_STO

◆ SCALE_DAY

◆ SCALE_MONTH

◆ SCALE_PERIODIC_WEEK

◆ SCALE_WEEK

◆ SCALE_YEAR
