This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V. More...

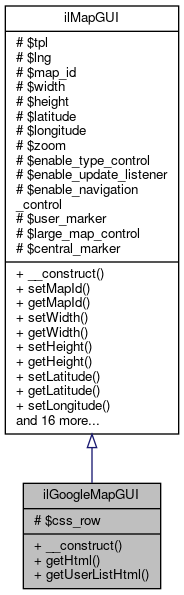

Inheritance diagram for ilGoogleMapGUI:

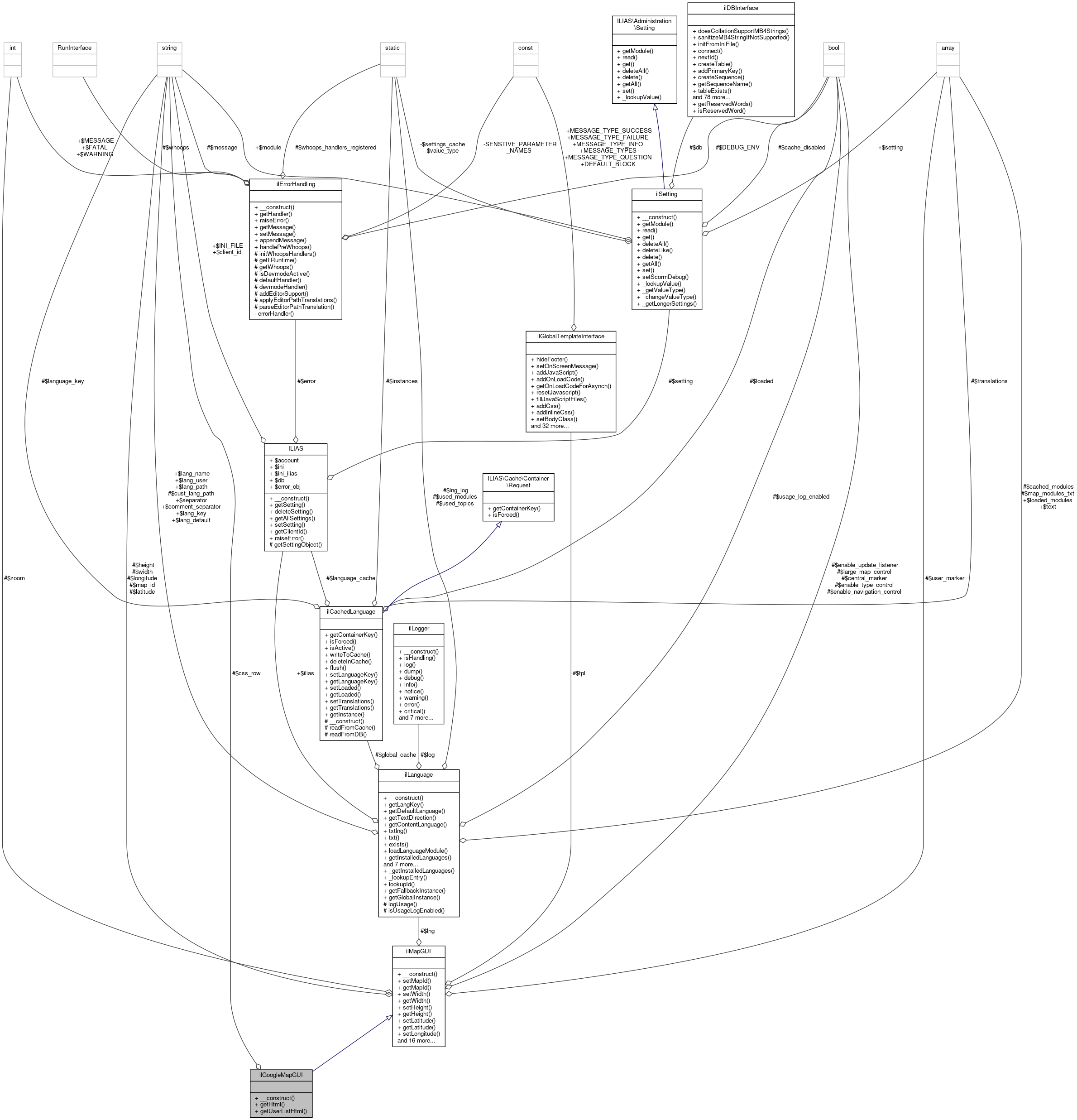

Collaboration diagram for ilGoogleMapGUI:

Public Member Functions
	__construct ()

	getHtml ()

	getUserListHtml ()
	Get User List HTML (to be displayed besides the map) More...

Public Member Functions inherited from ilMapGUI
	__construct ()

	setMapId (string $map_id)

	getMapId ()

	setWidth (string $width)

	getWidth ()

	setHeight (string $height)

	getHeight ()

	setLatitude (string $latitude)

	getLatitude ()

	setLongitude (string $longitude)

	getLongitude ()

	setZoom (?int $zoom)

	getZoom ()

	setEnableTypeControl (bool $enable_type_control)

	getEnableTypeControl ()

	setEnableNavigationControl (bool $enable_navigation_control)

	getEnableNavigationControl ()

	setEnableUpdateListener (bool $enable_update_listener)

	getEnableUpdateListener ()

	setEnableLargeMapControl (bool $large_map_control)

	getEnableLargeMapControl ()

	setEnableCentralMarker (bool $central_marker)

	getEnableCentralMarker ()

	addUserMarker (int $user_id)

	getHtml ()

	getUserListHtml ()
	Get User List HTML (to be displayed besides the map) More...

Protected Attributes
string	$css_row = ""

Protected Attributes inherited from ilMapGUI
ilGlobalTemplateInterface	$tpl

ilLanguage	$lng

string	$map_id

string	$width

string	$height

string	$latitude

string	$longitude

int	$zoom

bool	$enable_type_control

bool	$enable_update_listener

bool	$enable_navigation_control

array	$user_marker

bool	$large_map_control

bool	$central_marker

Detailed Description

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V.

ILIAS is licensed with the GPL-3.0, see https://www.gnu.org/licenses/gpl-3.0.en.html You should have received a copy of said license along with the source code, too.

If this is not the case or you just want to try ILIAS, you'll find us at: https://www.ilias.de https://github.com/ILIAS-eLearning User interface class for Google Maps

Author: Alex Killing alex..nosp@m.kill.nosp@m.ing@g.nosp@m.mx.d.nosp@m.e

Definition at line 26 of file class.ilGoogleMapGUI.php.

Constructor & Destructor Documentation

◆ __construct()

ilGoogleMapGUI::__construct ( )

Definition at line 30 of file class.ilGoogleMapGUI.php.

References ILIAS\MetaData\Repository\Validation\Data\__construct().

     {
         parent::__construct();
     }

Here is the call graph for this function:

Member Function Documentation

◆ getHtml()

ilGoogleMapGUI::getHtml ( )

Definition at line 35 of file class.ilGoogleMapGUI.php.

References ilMapGUI\$central_marker, ilMapGUI\$large_map_control, ilObject\_exists(), ilMapUtil\getApiKey(), ilMapGUI\getEnableCentralMarker(), ilMapGUI\getEnableLargeMapControl(), ilMapGUI\getEnableNavigationControl(), ilMapGUI\getEnableTypeControl(), ilMapGUI\getEnableUpdateListener(), ilMapGUI\getHeight(), ilMapGUI\getLatitude(), ilMapGUI\getLongitude(), ilMapGUI\getMapId(), ilMapGUI\getWidth(), and ilMapGUI\getZoom().

                              : string
     {
         $html_tpl = new ilTemplate(
             "tpl.google_map.html",
             true,
             true,
             "Services/Maps"
         );

         $js_tpl = new ilTemplate(
             "tpl.google_map.js",
             true,
             true,
             "Services/Maps"
         );

         $this->tpl->addJavaScript("//maps.google.com/maps/api/js?key=" . ilMapUtil::getApiKey(), false);

         // add user markers
         $cnt = 0;
         foreach ($this->user_marker as $user_id) {
             if (ilObject::_exists($user_id)) {
                 $user = new ilObjUser($user_id);
                 if ($user->getLatitude() != 0 && $user->getLongitude() != 0 &&
                     $user->getPref("public_location") == "y") {
                     $js_tpl->setCurrentBlock("user_marker");
                     $js_tpl->setVariable(
                         "UMAP_ID",
                         $this->getMapId()
                     );
                     $js_tpl->setVariable("CNT", $cnt);

                     $js_tpl->setVariable("ULAT", htmlspecialchars($user->getLatitude()));
                     $js_tpl->setVariable("ULONG", htmlspecialchars($user->getLongitude()));
                     $info = htmlspecialchars($user->getFirstName() . " " . $user->getLastName());
                     $delim = "<br />";
                     if ($user->getPref("public_institution") == "y") {
                         $info .= $delim . htmlspecialchars($user->getInstitution());
                         $delim = ", ";
                     }
                     if ($user->getPref("public_department") == "y") {
                         $info .= $delim . htmlspecialchars($user->getDepartment());
                     }
                     $delim = "<br />";
                     if ($user->getPref("public_street") == "y") {
                         $info .= $delim . htmlspecialchars($user->getStreet());
                     }
                     if ($user->getPref("public_zip") == "y") {
                         $info .= $delim . htmlspecialchars($user->getZipcode());
                         $delim = " ";
                     }
                     if ($user->getPref("public_city") == "y") {
                         $info .= $delim . htmlspecialchars($user->getCity());
                     }
                     $delim = "<br />";
                     if ($user->getPref("public_country") == "y") {
                         $info .= $delim . htmlspecialchars($user->getCountry());
                     }
                     $js_tpl->setVariable(
                         "USER_INFO",
                         $info
                     );
                     $js_tpl->setVariable(
                         "IMG_USER",
                         $user->getPersonalPicturePath("xsmall")
                     );
                     $js_tpl->parseCurrentBlock();
                     $cnt++;
                 }
             }
         }

         $html_tpl->setVariable("MAP_ID", $this->getMapId());
         $html_tpl->setVariable("WIDTH", $this->getWidth());
         $html_tpl->setVariable("HEIGHT", $this->getHeight());

         $js_tpl->setVariable("MAP_ID", $this->getMapId());
         $js_tpl->setVariable("LAT", $this->getLatitude());
         $js_tpl->setVariable("LONG", $this->getLongitude());
         $js_tpl->setVariable("ZOOM", (int) $this->getZoom());
         $type_control = $this->getEnableTypeControl()
             ? "true"
             : "false";
         $js_tpl->setVariable("TYPE_CONTROL", $type_control);
         $nav_control = $this->getEnableNavigationControl()
             ? "true"
             : "false";
         $js_tpl->setVariable("NAV_CONTROL", $nav_control);
         $update_listener = $this->getEnableUpdateListener()
             ? "true"
             : "false";
         $js_tpl->setVariable("UPDATE_LISTENER", $update_listener);
         $large_map_control = $this->getEnableLargeMapControl()
             ? "true"
             : "false";
         $js_tpl->setVariable("LARGE_CONTROL", $large_map_control);
         $central_marker = $this->getEnableCentralMarker()
             ? "true"
             : "false";
         $js_tpl->setVariable("CENTRAL_MARKER", $central_marker);

         $this->tpl->addOnLoadCode($js_tpl->get());

         return $html_tpl->get();
     }

Here is the call graph for this function:

◆ getUserListHtml()

ilGoogleMapGUI::getUserListHtml ( )

Get User List HTML (to be displayed besides the map)

Definition at line 144 of file class.ilGoogleMapGUI.php.

References ilObject\_exists(), and ilMapGUI\getMapId().

                                      : string
     {
         $list_tpl = new ilTemplate(
             "tpl.google_map_user_list.html",
             true,
             true,
             "Services/Maps"
         );

         $cnt = 0;
         foreach ($this->user_marker as $user_id) {
             if (ilObject::_exists($user_id)) {
                 $user = new ilObjUser($user_id);
                 $this->css_row = ($this->css_row != "tblrow1_mo")
                     ? "tblrow1_mo"
                     : "tblrow2_mo";
                 if ($user->getLatitude() != 0 && $user->getLongitude() != 0
                     && $user->getPref("public_location") == "y") {
                     $list_tpl->setCurrentBlock("item");
                     $list_tpl->setVariable("MARKER_CNT", $cnt);
                     $list_tpl->setVariable("MAP_ID", $this->getMapId());
                     $cnt++;
                 } else {
                     $list_tpl->setCurrentBlock("item_no_link");
                 }
                 $list_tpl->setVariable("CSS_ROW", $this->css_row);
                 $list_tpl->setVariable("TXT_USER", $user->getLogin());
                 $list_tpl->setVariable(
                     "IMG_USER",
                     $user->getPersonalPicturePath("xxsmall")
                 );
                 $list_tpl->parseCurrentBlock();
                 $list_tpl->touchBlock("row");
             }
         }

         return $list_tpl->get();
     }

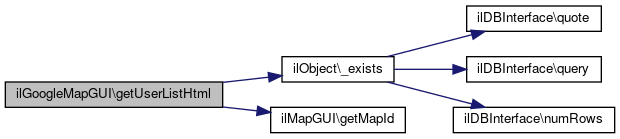

Here is the call graph for this function:

Field Documentation

◆ $css_row

string ilGoogleMapGUI::$css_row = ""

protected

Definition at line 28 of file class.ilGoogleMapGUI.php.

The documentation for this class was generated from the following file:

Services/Maps/classes/class.ilGoogleMapGUI.php
