GUI for MathJax Settings This GUI maintains the MathJax config stored in the ILIAS settings Since ILIAS 8 these settings can also be written by the ILIAS setup ilMathJaxSettingsGUI: More...

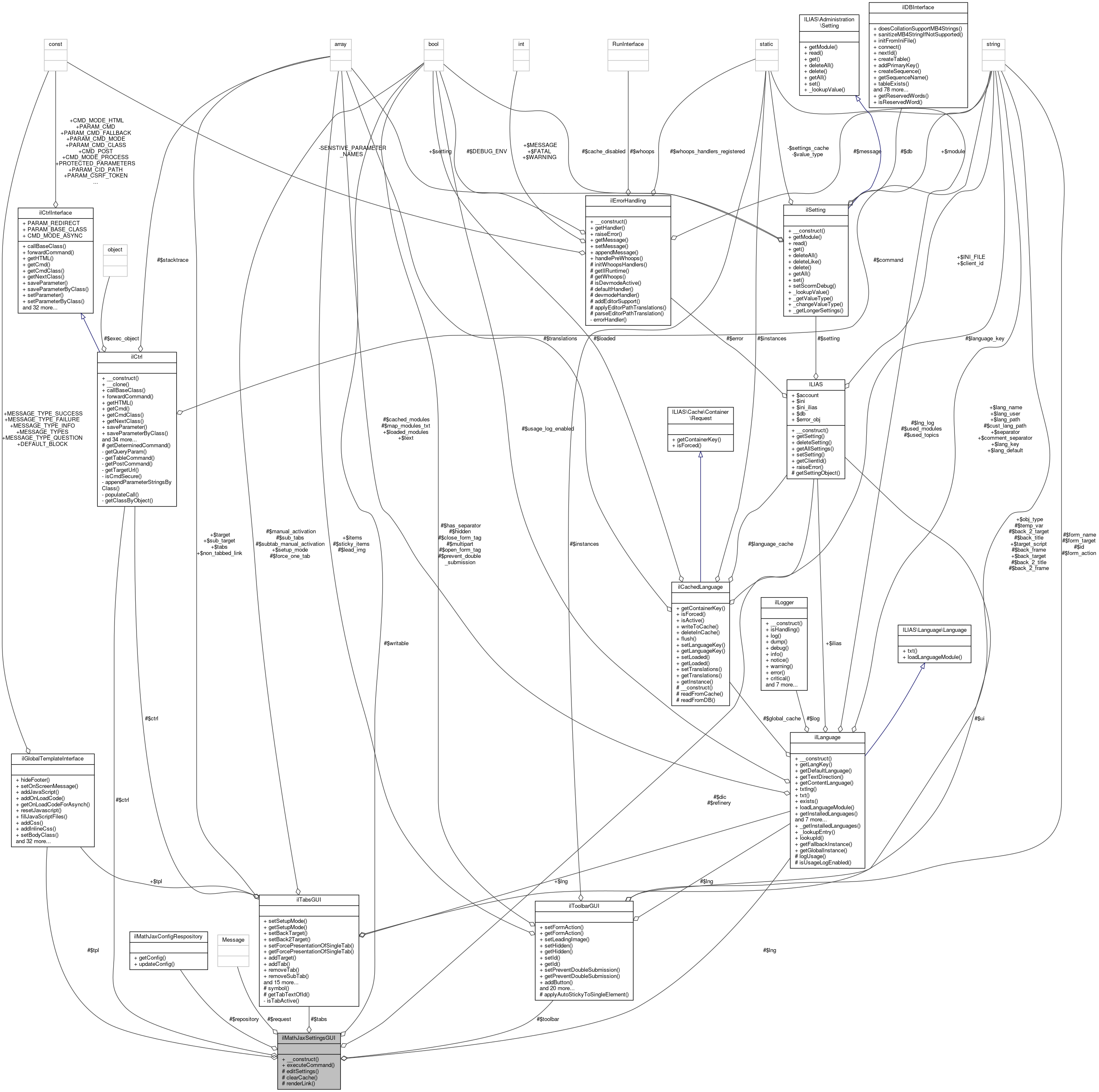

Collaboration diagram for ilMathJaxSettingsGUI:

Public Member Functions
	__construct (bool $writable)
	Constructor. More...

	executeCommand ()
	Execute a command This should be overridden in the child classes note: permissions are already checked in the object gui. More...

Protected Member Functions
	editSettings ()
	Edit the MathJax settings. More...

	clearCache ()
	Clear the directory with cached LaTeX graphics. More...

	renderLink (string $langvar, string $url, bool $new_tab=true)
	Render an html link. More...

Protected Attributes
ILIAS DI Container	$dic

ilCtrl	$ctrl

ilTabsGUI	$tabs

ilLanguage	$lng

ilGlobalTemplateInterface	$tpl

ilToolbarGUI	$toolbar

Psr Http Message ServerRequestInterface	$request

ILIAS Refinery Factory	$refinery

ilMathJaxConfigRespository	$repository

bool	$writable = false

Detailed Description

GUI for MathJax Settings This GUI maintains the MathJax config stored in the ILIAS settings Since ILIAS 8 these settings can also be written by the ILIAS setup ilMathJaxSettingsGUI:

Definition at line 27 of file class.ilMathJaxSettingsGUI.php.

Constructor & Destructor Documentation

◆ __construct()

ilMathJaxSettingsGUI::__construct ( bool $writable )

Constructor.

Definition at line 45 of file class.ilMathJaxSettingsGUI.php.

References $DIC, $writable, ILIAS\Repository\ctrl(), ILIAS\Repository\lng(), ILIAS\Repository\refinery(), ILIAS\UI\examples\Deck\repository(), ILIAS\Repository\tabs(), and ILIAS\Repository\toolbar().

     {
         global $DIC;

         // ILIAS dependencies
         $this->dic = $DIC;
         $this->ctrl = $this->dic->ctrl();
         $this->tabs = $this->dic->tabs();
         $this->toolbar = $this->dic->toolbar();
         $this->lng = $this->dic->language();
         $this->tpl = $this->dic->ui()->mainTemplate();
         $this->request = $this->dic->http()->request();
         $this->refinery = $this->dic->refinery();

         $factory = new ilSettingsFactory($DIC->database());
         $this->repository = new ilMathJaxConfigSettingsRepository($factory->settingsFor('MathJax'));

         $this->writable = $writable;
     }

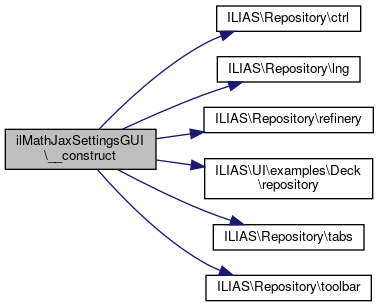

Here is the call graph for this function:

Member Function Documentation

◆ clearCache()

ilMathJaxSettingsGUI::clearCache ( )

protected

Clear the directory with cached LaTeX graphics.

Definition at line 272 of file class.ilMathJaxSettingsGUI.php.

References ILIAS\Repository\ctrl(), ilMathJax\getInstance(), and ILIAS\Repository\lng().

                                    : void
     {
         ilMathJax::getInstance()->clearCache();
         $this->tpl->setOnScreenMessage('success', $this->lng->txt('mathjax_server_cache_cleared'), true);
         $this->ctrl->redirect($this);
     }

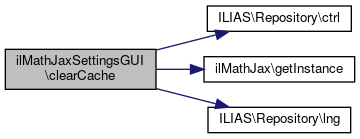

Here is the call graph for this function:

◆ editSettings()

ilMathJaxSettingsGUI::editSettings ( )

protected

Edit the MathJax settings.

Definition at line 89 of file class.ilMathJaxSettingsGUI.php.

References $data, ILIAS\Repository\ctrl(), ilMathJax\getIndependent(), ilMathJax\getInstance(), init(), ILIAS\Repository\lng(), ilMathJax\PURPOSE_BROWSER, ILIAS\Repository\refinery(), renderLink(), ILIAS\UI\examples\Deck\repository(), ILIAS\UI\Implementation\Component\Input\ViewControl\withAdditionalTransformation(), and ILIAS\UI\Implementation\Component\Input\withValue().

                                      : void
     {
         $testcode = 'f(x)=\int_{-\infty}^x e^{-t^2}dt';

         $config = $this->repository->getConfig();
         $factory = $this->dic->ui()->factory()->input()->field();

         // needed for the optional groups
         $checkbox_transformation = $this->refinery->custom()->transformation(static function ($v) {
             if (is_array($v) || is_bool($v)) {
                 return $v;
             }
             return ($v === 'checked');
         });

         // client-side rendering settings
         $client_enabled = $factory->optionalGroup(
             [

             'client_polyfill_url' => $factory->url(
                 $this->lng->txt('mathjax_polyfill_url'),
                 implode('<br />', [
                     $this->lng->txt('mathjax_polyfill_url_desc_line1'),
                     $this->lng->txt('mathjax_polyfill_url_desc_line2')
                 ])
             )
             ->withValue($config->getClintPolyfillUrl())
             ->withDisabled(!$this->writable),

             'client_script_url' => $factory->url(
                 $this->lng->txt('mathjax_script_url'),
                 implode('<br />', [
                     // Mantis #41564
                     sprintf($this->lng->txt('mathjax_script_url_desc_line1'), $config->getMathJax2DefaultUrl()),
                     sprintf($this->lng->txt('mathjax_script_url_desc_line2'), $config->getMathJax3DefaultUrl()),
                 ])
             )->withRequired(true) // mantis #31645
             ->withValue($config->getClientScriptUrl())
             ->withDisabled(!$this->writable),

             'client_limiter' => $factory->select(
                 $this->lng->txt('mathjax_limiter'),
                 $config->getClientLimiterOptions(),
                 $this->lng->txt('mathjax_limiter_info')
             )->withRequired(true)
             ->withValue($config->getClientLimiter())
             ->withDisabled(!$this->writable),

             'client_test' => $factory->text(
                 $this->lng->txt('mathjax_test_expression'),
                 $this->lng->txt('mathjax_test_expression_info_client')
                 . ilMathJax::getIndependent(
                     $config->withClientEnabled(true)
                            ->withServerEnabled(false),
                     new ilMathJaxFactory()
                 )
                            ->init(ilMathJax::PURPOSE_BROWSER)
                            ->insertLatexImages('<p>[tex]' . $testcode . '[/tex]</p>')
             )->withDisabled(true)->withValue($testcode)

         ],
             $this->lng->txt('mathjax_enable_client'),
             $this->lng->txt('mathjax_enable_client_info') . ' ' .
             $this->renderLink('mathjax_home_link', 'https://www.mathjax.org')
         )->withAdditionalTransformation($checkbox_transformation)
         ->withDisabled(!$this->writable);

         // server-side rendering settings
         $server_enabled = $factory->optionalGroup(
             [
             'server_address' => $factory->url(
                 $this->lng->txt('mathjax_server_address'),
                 $this->lng->txt('mathjax_server_address_info')
             )->withRequired(true)
             ->withValue($config->getServerAddress())
             ->withDisabled(!$this->writable),

             'server_timeout' => $factory->numeric(
                 $this->lng->txt('mathjax_server_timeout'),
                 $this->lng->txt('mathjax_server_timeout_info')
             )//->withRequired(true) // mantis #31645
             ->withValue($config->getServerTimeout())
             ->withDisabled(!$this->writable),

             'server_for_browser' => $factory->checkbox(
                 $this->lng->txt('mathjax_server_for_browser'),
                 $this->lng->txt('mathjax_server_for_browser_info')
             )->withValue($config->isServerForBrowser())
             ->withDisabled(!$this->writable),

             'server_for_export' => $factory->checkbox(
                 $this->lng->txt('mathjax_server_for_export'),
                 $this->lng->txt('mathjax_server_for_export_info')
             )->withValue($config->isServerForExport())
              ->withDisabled(!$this->writable),

             'server_for_pdf' => $factory->checkbox(
                 $this->lng->txt('mathjax_server_for_pdf'),
                 $this->lng->txt('mathjax_server_for_pdf_info')
             )->withValue($config->isServerForPdf())
              ->withDisabled(!$this->writable),

             'cache_size' => $factory->text(
                 $this->lng->txt('mathjax_server_cache_size'),
                 $this->lng->txt('mathjax_server_cache_size_info') . ' ' .
                 $this->renderLink('mathjax_server_clear_cache', $this->ctrl->getLinkTarget($this, 'clearCache'), false)
             )->withDisabled(true)->withValue(ilMathJax::getInstance()->getCacheSize())
             ->withDisabled(!$this->writable),

             'server_test' => $factory->text(
                 $this->lng->txt('mathjax_test_expression'),
                 $this->lng->txt('mathjax_test_expression_info_server')
                 . ilMathJax::getIndependent(
                     $config->withClientEnabled(false)
                            ->withServerEnabled(true)
                            ->withServerForBrowser(true),
                     new ilMathJaxFactory()
                 )
                            ->init(ilMathJax::PURPOSE_BROWSER)
                            ->insertLatexImages('<p>[tex]' . $testcode . '[/tex]</p>')
             )->withDisabled(true)->withValue($testcode)
         ],
             $this->lng->txt('mathjax_enable_server'),
             $this->lng->txt('mathjax_enable_server_info') . ' ' .
             $this->renderLink('mathjax_server_installation', './components/ILIAS/MathJax/docs/install-server.md')
         )->withAdditionalTransformation($checkbox_transformation)
         ->withDisabled(!$this->writable);


         // build the settings form
         // uncheck optional groups, if not enabled, see https://mantis.ilias.de/view.php?id=26476
         $form = $this->dic->ui()->factory()->input()->container()->form()->standard($this->ctrl->getFormAction($this), [
             'mathjax' => $factory->section([], $this->lng->txt('mathjax_settings')),
             'client_enabled' => $config->isClientEnabled() ? $client_enabled : $client_enabled->withValue(null),
             'server_enabled' => $config->isServerEnabled() ? $server_enabled : $server_enabled->withValue(null)
         ]);

         if (!$this->writable) {
             $form = $form->withSubmitLabel($this->lng->txt('refresh'));
         }

         // apply posted inputs if form is saved and
         if ($this->writable && $this->request->getMethod() === "POST") {
             $form = $form->withRequest($this->request);
             $data = $form->getData();
         }

         // posted inputs exist and are ok => save data
         if (isset($data)) {
             if (is_array($data['client_enabled'])) {
                 $client_data = $data['client_enabled'];
                 $config = $config->withClientEnabled(true)
                                  ->withClientPolyfillUrl((string) $client_data['client_polyfill_url'])
                                  ->withClientScriptUrl((string) $client_data['client_script_url'])
                                  ->withClientLimiter((int) $client_data['client_limiter']);
             } else {
                 $config = $config->withClientEnabled(false);
             }

             if (is_array($data['server_enabled'])) {
                 $server_data = $data['server_enabled'];
                 $config = $config->withServerEnabled(true)
                                  ->withServerAddress((string) $server_data['server_address'])
                                  ->withServerTimeout((int) $server_data['server_timeout'])
                                  ->withServerForBrowser((bool) $server_data['server_for_browser'])
                                  ->withServerForExport((bool) $server_data['server_for_export'])
                                  ->withServerForPdf((bool) $server_data['server_for_pdf']);
             } else {
                 $config = $config->withServerEnabled(false);
             }
             $this->repository->updateConfig($config);

             $this->tpl->setOnScreenMessage('success', $this->lng->txt("settings_saved"), true);
             $this->ctrl->redirect($this);
         }

         // form is not posted or has valisation errors
         $this->tpl->setContent($this->dic->ui()->renderer()->render($form));
     }

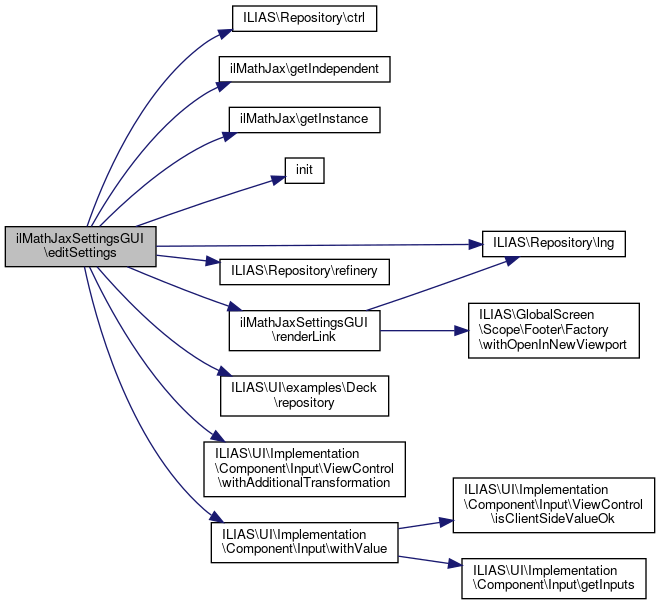

Here is the call graph for this function:

◆ executeCommand()

ilMathJaxSettingsGUI::executeCommand ( )

Execute a command This should be overridden in the child classes note: permissions are already checked in the object gui.

Definition at line 70 of file class.ilMathJaxSettingsGUI.php.

References ILIAS\Repository\ctrl(), and ILIAS\Repository\lng().

                                     : void
     {
         $this->lng->loadLanguageModule('mathjax');

         $cmd = $this->ctrl->getCmd('editSettings');
         switch ($cmd) {
             case 'editSettings':
             case 'clearCache':
                 $this->$cmd();
                 break;

             default:
                 $this->tpl->setContent('unknown command: ' . $cmd);
         }
     }

Here is the call graph for this function:

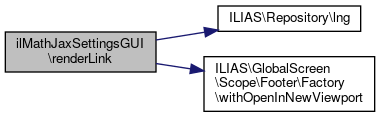

◆ renderLink()

ilMathJaxSettingsGUI::renderLink	(	string	$langvar,
		string	$url,
		bool	$new_tab = `true`
	)

protected

Render an html link.

Definition at line 282 of file class.ilMathJaxSettingsGUI.php.

References $url, ILIAS\Repository\lng(), and ILIAS\GlobalScreen\Scope\Footer\Factory\withOpenInNewViewport().

Referenced by editSettings().

                                                                                      : string
     {
         $link = $this->dic->ui()->factory()->link()->standard(
             $this->lng->txt($langvar),
             $url
         )->withOpenInNewViewport($new_tab);
         return $this->dic->ui()->renderer()->render($link);
     }
