ilMediaItem Class Reference

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V. More...

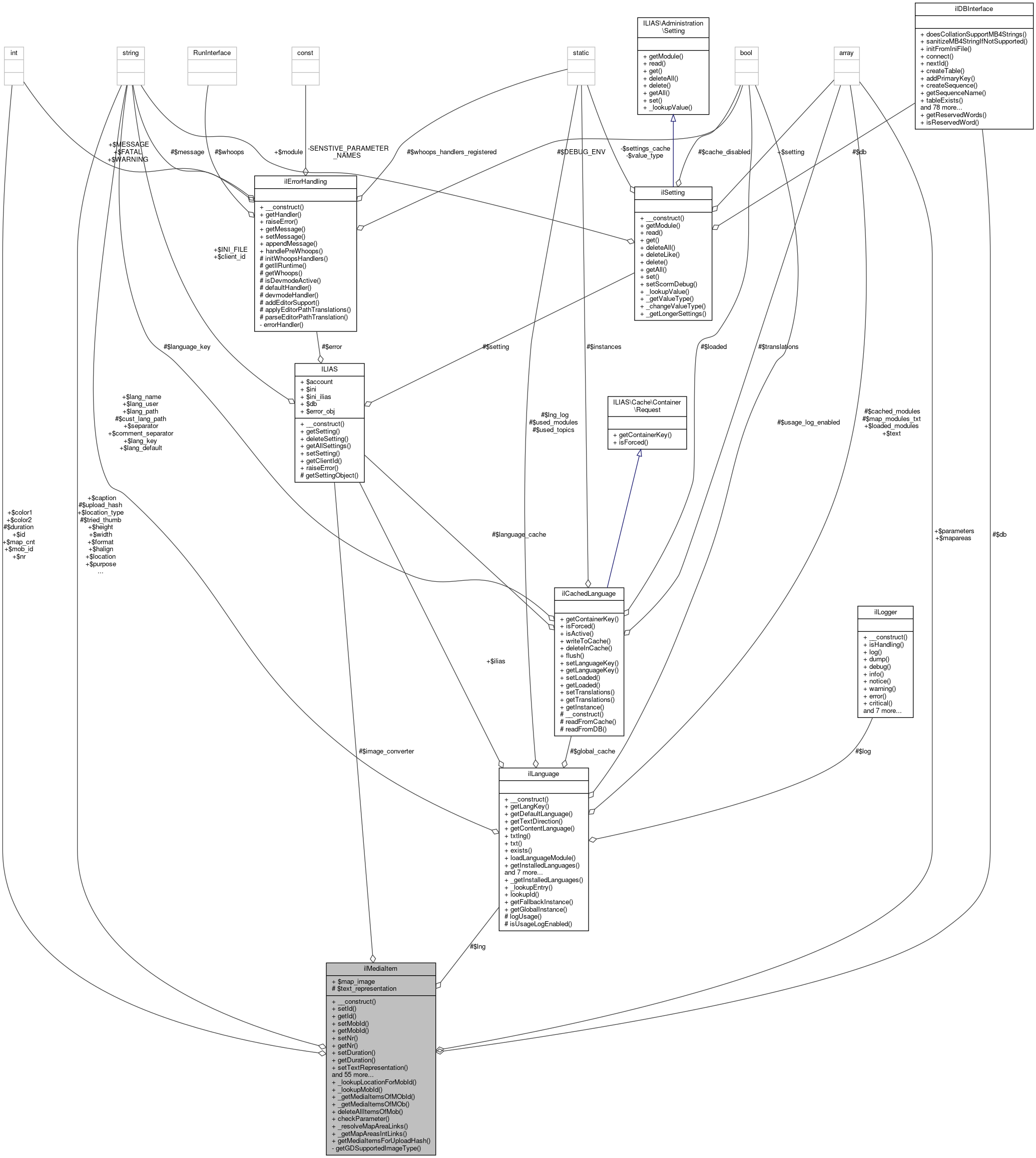

Collaboration diagram for ilMediaItem:

Public Member Functions
	__construct (int $a_id=0)
	setId (int $a_id)
	set media item id More...
	getId ()
	setMobId (int $a_mob_id)
	set id of parent media object More...

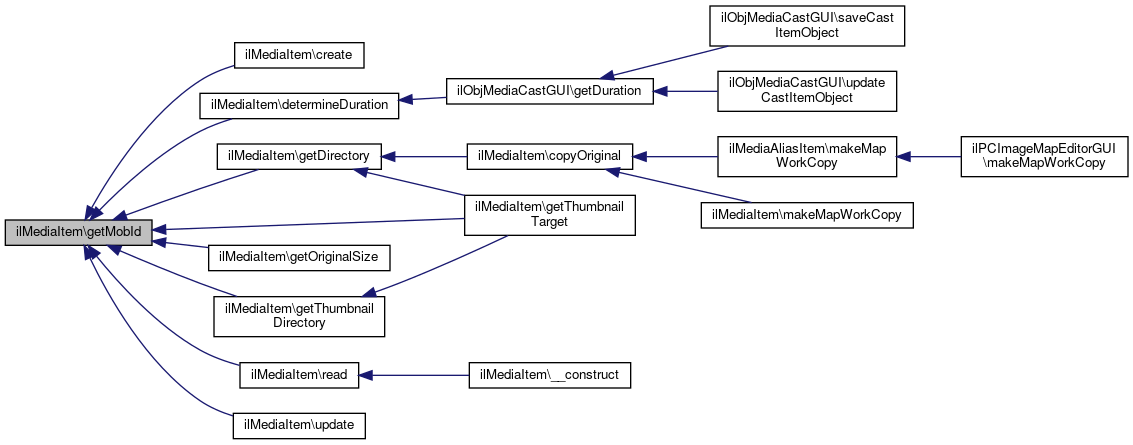

	getMobId ()
	setNr (int $a_nr)
	set number of media item within media object More...

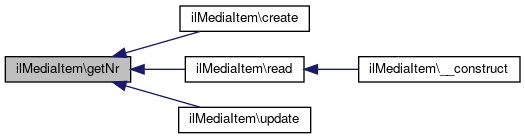

	getNr ()

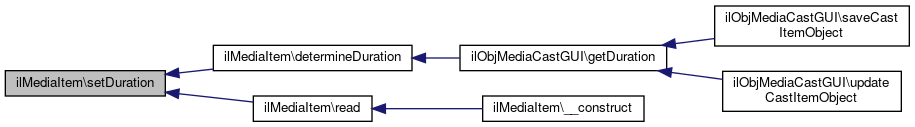

	setDuration (int $a_val)

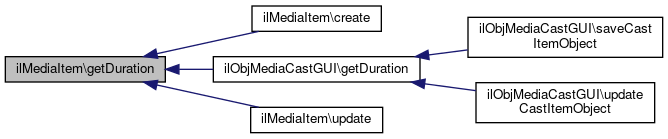

	getDuration ()
	setTextRepresentation (string $a_val)
	getTextRepresentation ()
	setUploadHash (string $a_val)
	getUploadHash ()

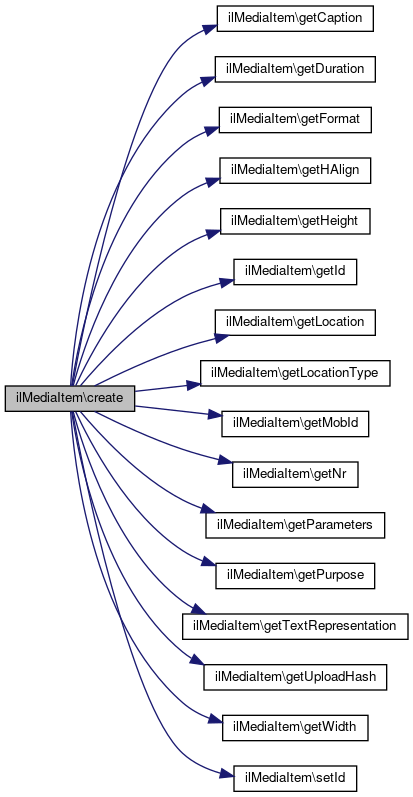

	create ()
	update ()
	writeParameter (string $a_name, string $a_value)

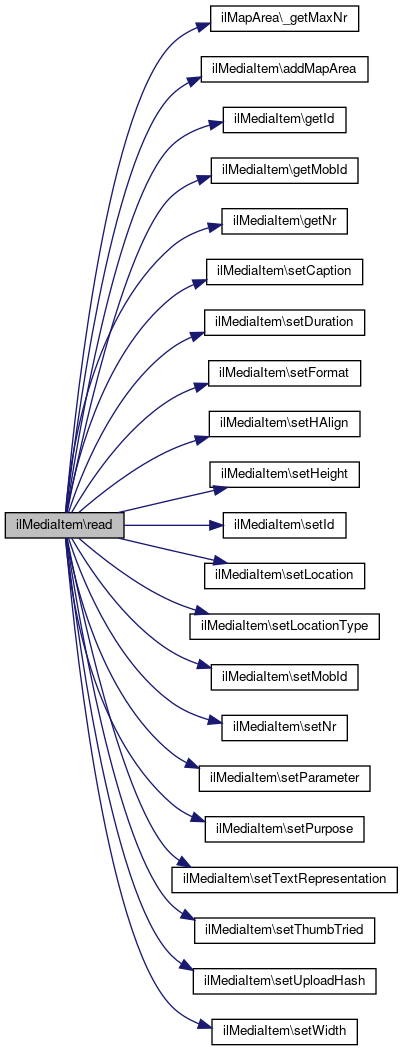

	read ()
	read media item data (item id or (mob_id and nr) must be set) More...
	writeThumbTried (string $a_tried)
	write thumbnail creation try data ("y"/"n") More...
	setPurpose (string $a_purpose)

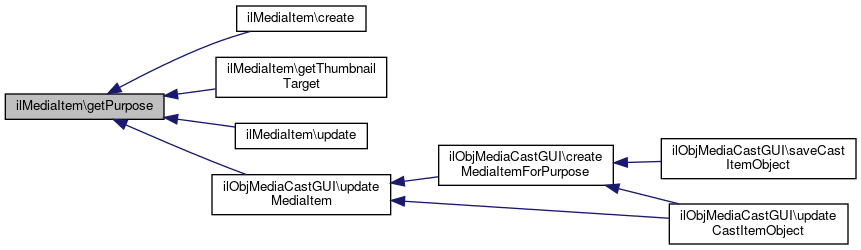

	getPurpose ()

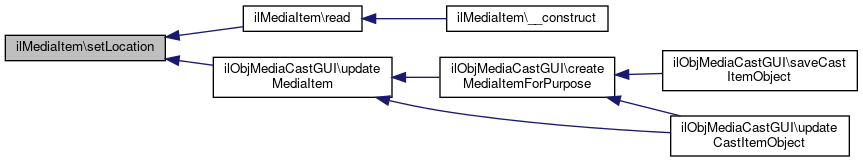

	setLocation (string $a_location)
	getLocation ()

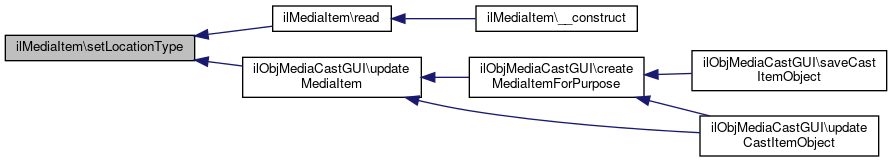

	setLocationType (string $a_type)
	getLocationType ()
	setFormat (string $a_format)
	getFormat ()
	setThumbTried (string $a_tried)
	getThumbTried ()
	addMapArea (ilMapArea $a_map_area)
	deleteMapArea (int $nr)
	getMapArea (int $nr)
	getMapAreas ()
	getWidth ()
	setWidth (string $a_width)
	getHeight ()
	setHeight (string $a_height)

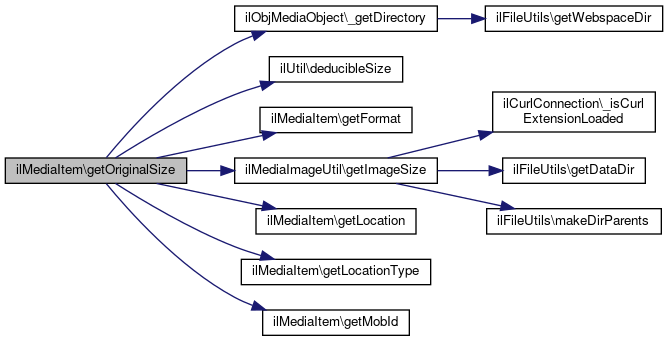

	getOriginalSize ()
	setCaption (string $a_caption)
	getCaption ()
	setHAlign (string $a_halign)
	set horizontal align More...
	getHAlign ()
	setParameter (string $a_name, string $a_value)
	resetParameters ()

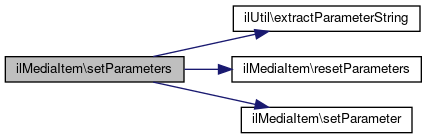

	setParameters (string $a_par)
	set all parameters via parameter string (format: par1="value1", par2="value2", ...) More...

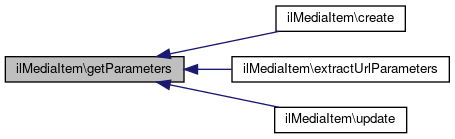

	getParameters ()
	getParameterString ()
	getParameter (string $a_name)
	getWorkDirectory ()
	get work directory for image map editing More...

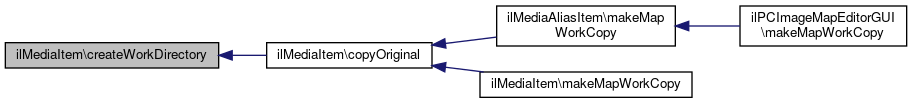

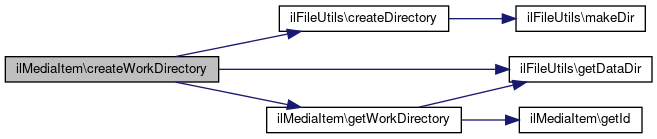

	createWorkDirectory ()
	create work directory for image map editing More...

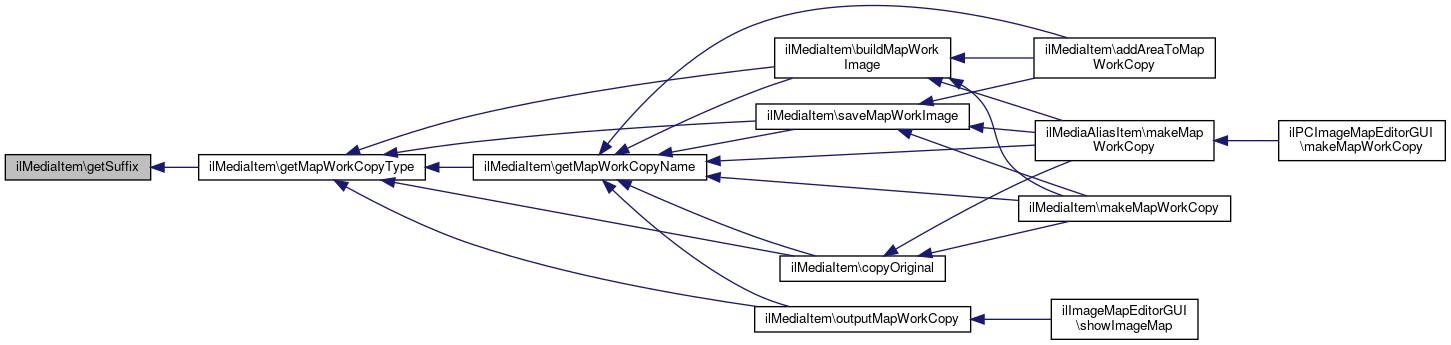

	getSuffix ()
	get location suffix More...
	getMapWorkCopyType ()
	get image type of image map work copy More...

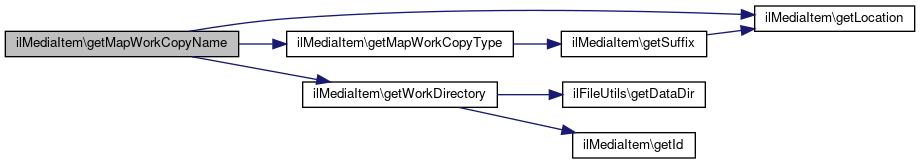

	getMapWorkCopyName (bool $a_reference_copy=false)
	Get name of image map work copy file. More...
	getDirectory ()
	get media file directory More...
	getThumbnailDirectory (string $a_mode="filesystem")
	get media file directory More...

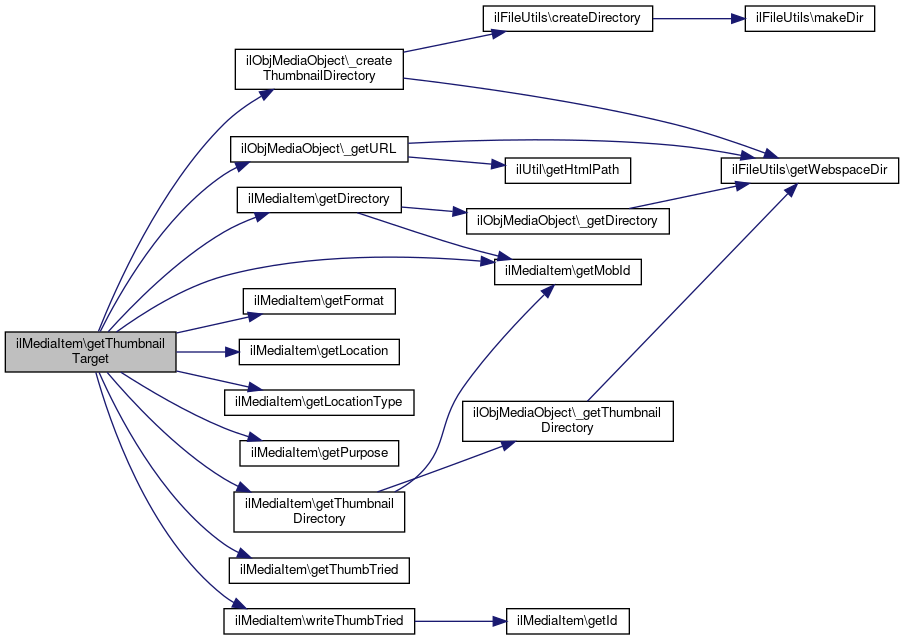

	getThumbnailTarget (string $a_size="")
	get thumbnail target More...

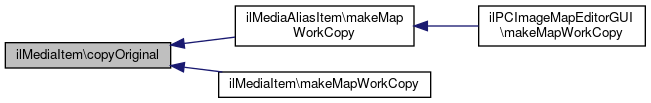

	copyOriginal ()
	Copy the original file for map editing to the working directory. More...
	makeMapWorkCopy (int $a_area_nr=0, bool $a_exclude=false)
	make map work copy of image More...

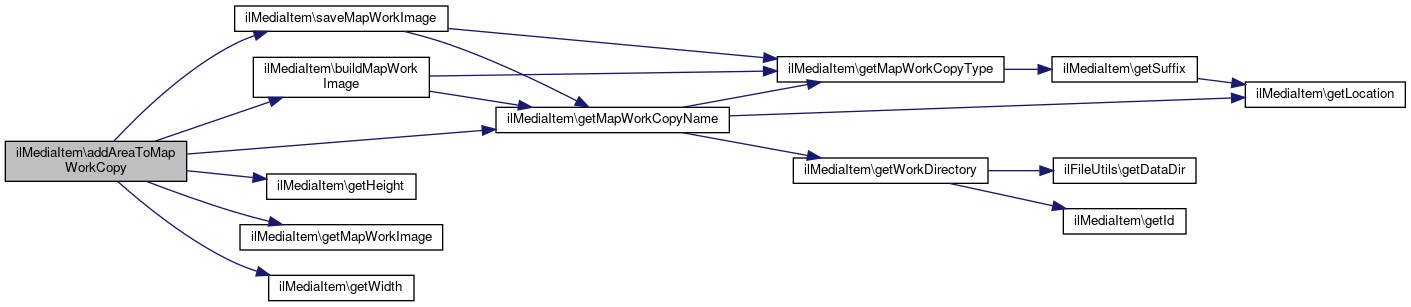

	addAreaToMapWorkCopy (string $a_shape, string $a_coords)
	draw a new area in work image More...
	outputMapWorkCopy ()
	output raw map work copy file More...

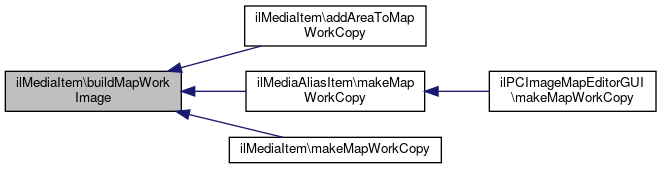

	buildMapWorkImage ()
	build image map work image More...

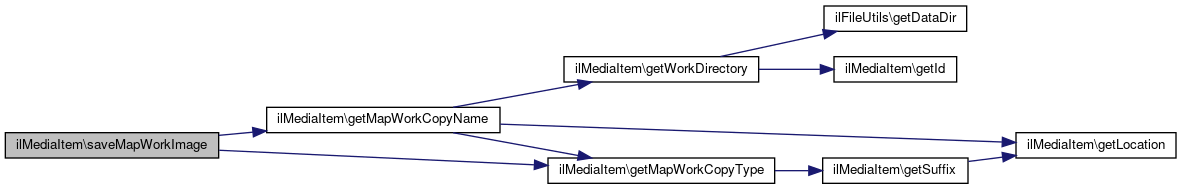

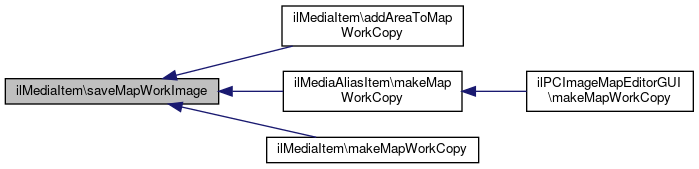

	saveMapWorkImage ()
	save image map work image as file More...
	getMapWorkImage ()
	getMapAreasXML (bool $a_insert_inst=false, int $a_inst=0)
	get xml code of media items' areas More...
	extractUrlParameters ()
	Extract parameters of special external references to parameter array. More...

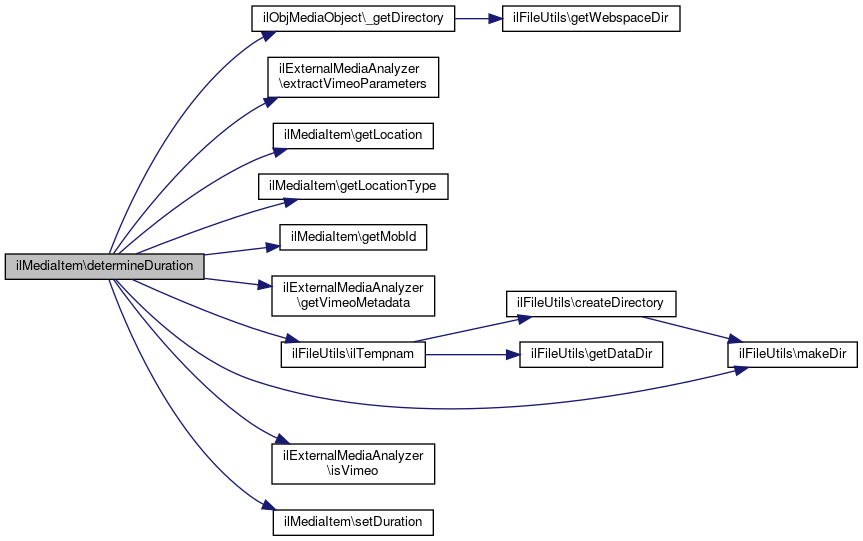

	determineDuration ()

Static Public Member Functions
static	_lookupLocationForMobId (int $a_mob_id, string $a_purpose)
static	_lookupMobId (int $a_med_id)
static	_getMediaItemsOfMObId (int $a_mobId, string $a_purpose)
	read media item with specific purpose and mobId More...
static	_getMediaItemsOfMOb (ilObjMediaObject $a_mob)
	Read media items into(!) media object (static) More...
static	deleteAllItemsOfMob (int $a_mob_id)
static	checkParameter (string $a_par, string $a_val)
	Check parameter (filter javascript related and other unsafe parameters/values) More...
static	_resolveMapAreaLinks (int $a_mob_id)
	resolve internal links of all media items of a media object More...
static	_getMapAreasIntLinks (int $a_mob_id)
	get all internal links of map areas of a mob More...

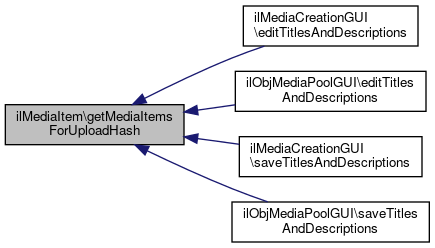

static	getMediaItemsForUploadHash (string $a_hash)
	Get media items for upload hash. More...

Data Fields
int	$id = 0
string	$purpose = ""
string	$location = ""
string	$location_type = ""
string	$format = ""
string	$width = ""
string	$height = ""
string	$caption = ""
string	$halign = ""
array	$parameters = []
int	$mob_id = 0
int	$nr = 0
array	$mapareas = []
int	$map_cnt = 0
	$map_image = null
int	$color1
int	$color2

Protected Attributes
string	$tried_thumb = ""
string	$text_representation = ""
ilDBInterface	$db
ilLanguage	$lng
ILIAS Filesystem Util Convert LegacyImages	$image_converter
int	$duration = 0
string	$upload_hash = ''

Static Private Member Functions
static	getGDSupportedImageType (string $a_desired_type)
	returns the best supported image type by this PHP build More...

Detailed Description

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V.

ILIAS is licensed with the GPL-3.0, see https://www.gnu.org/licenses/gpl-3.0.en.html You should have received a copy of said license along with the source code, too.

If this is not the case or you just want to try ILIAS, you'll find us at: https://www.ilias.de https://github.com/ILIAS-eLearning Class ilMediaItem Media Item, component of a media object (file or reference)

Author

Alexander Killing killi.nosp@m.ng@l.nosp@m.eifos.nosp@m..de

Definition at line 24 of file class.ilMediaItem.php.

Constructor & Destructor Documentation

__construct()

ilMediaItem::__construct

(

int

$a_id = 0

)

Definition at line 55 of file class.ilMediaItem.php.

References $DIC, ILIAS\Repository\lng(), read(), and setId().

      {
        global $DIC;

        $this->db = $DIC->database();
        $this->lng = $DIC->language();
        $this->image_converter = $DIC->fileConverters()->legacyImages();
        $this->parameters = array();
        $this->mapareas = array();
        $this->map_cnt = 0;

        if ($a_id != 0) {
            $this->setId($a_id);
            $this->read();
        }
    }

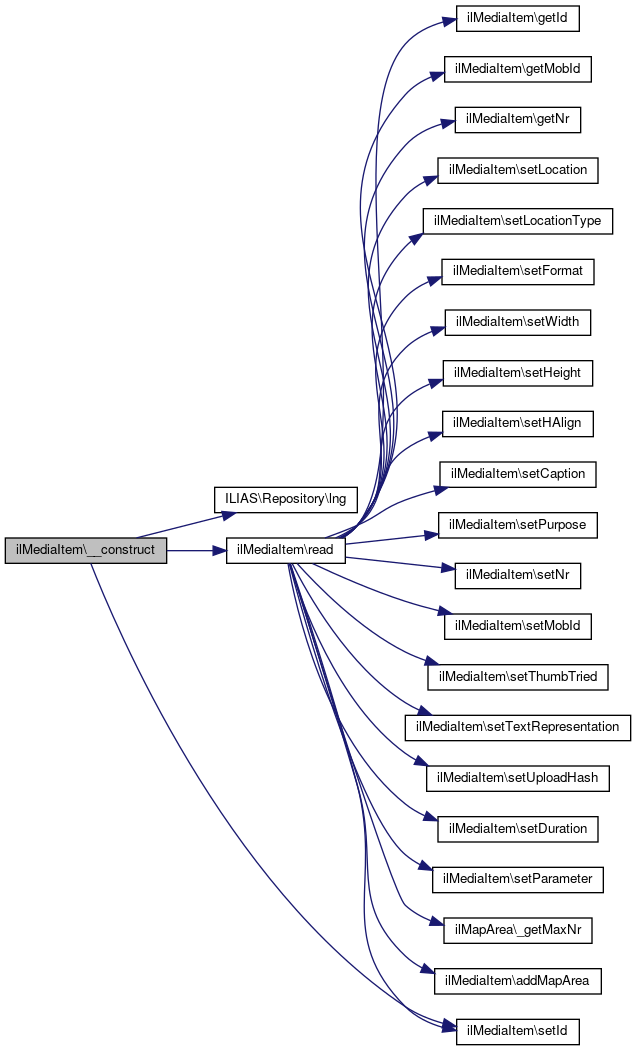

Here is the call graph for this function:

Member Function Documentation

_getMapAreasIntLinks()

static ilMediaItem::_getMapAreasIntLinks ( int  $a_mob_id )

static

get all internal links of map areas of a mob

Parameters

int

$a_mob_id

media object id

Definition at line 1148 of file class.ilMediaItem.php.

References $DIC, $ilDB, ILIAS\LTI\ToolProvider\$key, and ilMapArea\_getIntLinks().

Referenced by ilPageObjectGUI\displayMedia(), ilCOPageHTMLExport\exportHTMLMOB(), ILIAS\COPage\Link\LinkManager\getDefaultMediaCollector(), ilLMPresentationGUI\ilMedia(), and ilGlossaryPresentationGUI\media().

     : array {
        global $DIC;

        $ilDB = $DIC->database();

        // read media_items records
        $query = "SELECT * FROM media_item WHERE mob_id = " .
            $ilDB->quote($a_mob_id, "integer") . " ORDER BY nr";

        $item_set = $ilDB->query($query);
        $links = array();
        while ($item_rec = $ilDB->fetchAssoc($item_set)) {
            $map_links = ilMapArea::_getIntLinks($item_rec["id"]);
            foreach ($map_links as $key => $map_link) {
                $links[$key] = $map_link;
            }
        }
        return $links;
    }

Here is the call graph for this function:

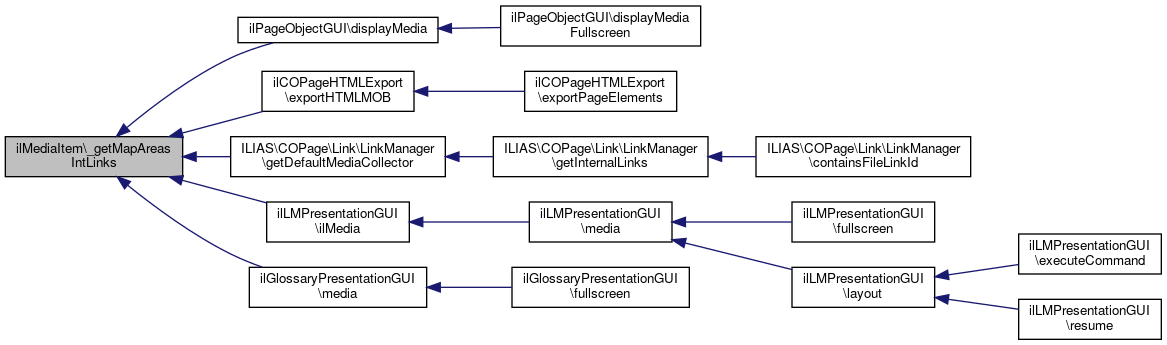

Here is the caller graph for this function:

_getMediaItemsOfMOb()

static ilMediaItem::_getMediaItemsOfMOb ( ilObjMediaObject  $a_mob )

static

Read media items into(!) media object (static)

Definition at line 433 of file class.ilMediaItem.php.

References $DIC, $ilDB, ilMapArea\_getMaxNr(), ilObjMediaObject\addMediaItem(), and ilObject\getId().

Referenced by ilObjMediaObject\read().

     : void {
        global $DIC;

        $ilDB = $DIC->database();

        // read media_object record
        $query = "SELECT * FROM media_item WHERE mob_id = " .
            $ilDB->quote($a_mob->getId(), "integer") . " " .
            "ORDER BY nr";
        $item_set = $ilDB->query($query);
        while ($item_rec = $ilDB->fetchAssoc($item_set)) {
            $media_item = new ilMediaItem();
            $media_item->setNr((int) $item_rec["nr"]);
            $media_item->setId((int) $item_rec["id"]);
            $media_item->setLocation((string) $item_rec["location"]);
            $media_item->setLocationType((string) $item_rec["location_type"]);
            $media_item->setFormat((string) $item_rec["format"]);
            $media_item->setWidth((string) $item_rec["width"]);
            $media_item->setHeight((string) $item_rec["height"]);
            $media_item->setHAlign((string) $item_rec["halign"]);
            $media_item->setCaption((string) $item_rec["caption"]);
            $media_item->setPurpose((string) $item_rec["purpose"]);
            $media_item->setMobId((int) $item_rec["mob_id"]);
            $media_item->setThumbTried((string) $item_rec["tried_thumb"]);
            $media_item->setTextRepresentation((string) $item_rec["text_representation"]);
            $media_item->setUploadHash((string) $item_rec["upload_hash"]);
            $media_item->setDuration((int) $item_rec["duration"]);

            // get item parameter
            $query = "SELECT * FROM mob_parameter WHERE med_item_id = " .
                $ilDB->quote($item_rec["id"], "integer");
            $par_set = $ilDB->query($query);
            while ($par_rec = $ilDB->fetchAssoc($par_set)) {
                $media_item->setParameter($par_rec["name"], $par_rec["value"]);
            }

            // get item map areas
            $max = ilMapArea::_getMaxNr($media_item->getId());
            for ($i = 1; $i <= $max; $i++) {
                $area = new ilMapArea($media_item->getId(), $i);
                $media_item->addMapArea($area);
            }

            // add media item to media object
            $a_mob->addMediaItem($media_item);
        }
    }

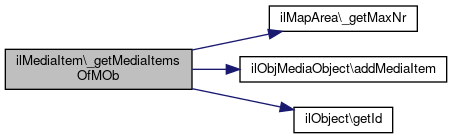

Here is the call graph for this function:

Here is the caller graph for this function:

_getMediaItemsOfMObId()

static ilMediaItem::_getMediaItemsOfMObId ( int  $a_mobId, string  $a_purpose  )

static

read media item with specific purpose and mobId

Parameters

int	$a_mobId
string	$a_purpose

Returns

?ilMediaItem[]

Definition at line 410 of file class.ilMediaItem.php.

References $DIC, and $ilDB.

Referenced by ilObjectFeedWriter\__construct().

     : ?array {
        global $DIC;

        $ilDB = $DIC->database();

        // read media_object record
        $query = "SELECT * FROM media_item WHERE mob_id = " .
            $ilDB->quote($a_mobId, "integer") . " " .
            "AND purpose=" . $ilDB->quote($a_purpose, "text") . " ORDER BY nr";
        $item_set = $ilDB->query($query);

        while ($item_rec = $ilDB->fetchAssoc($item_set)) {
            return $item_rec;
        }
        return null;
    }

Here is the caller graph for this function:

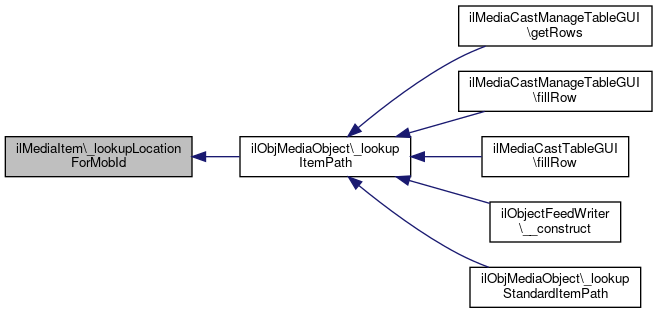

_lookupLocationForMobId()

static ilMediaItem::_lookupLocationForMobId ( int  $a_mob_id, string  $a_purpose  )

static

Definition at line 366 of file class.ilMediaItem.php.

References $DIC, and $ilDB.

Referenced by ilObjMediaObject\_lookupItemPath().

     : string {
        global $DIC;

        $ilDB = $DIC->database();

        // read media_object record
        $query = "SELECT * FROM media_item WHERE mob_id = " .
            $ilDB->quote($a_mob_id, "integer") . " " .
            "AND purpose = " . $ilDB->quote($a_purpose, "text");
        $set = $ilDB->query($query);
        if ($rec = $ilDB->fetchAssoc($set)) {
            return $rec["location"];
        }

        return "";
    }

Here is the caller graph for this function:

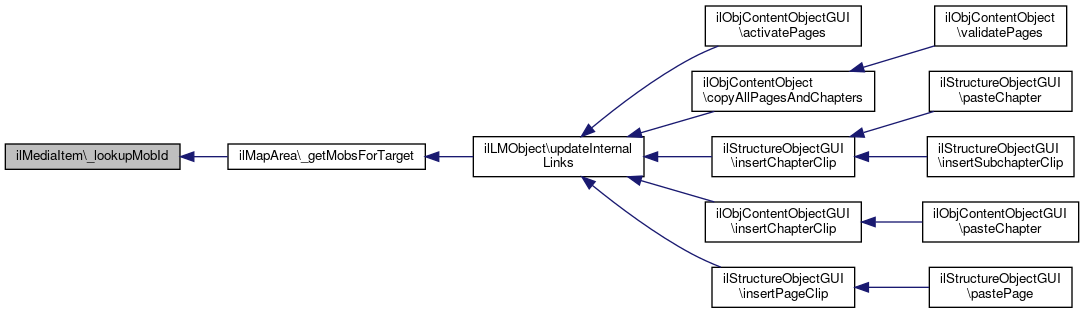

_lookupMobId()

static ilMediaItem::_lookupMobId ( int  $a_med_id )

static

Definition at line 386 of file class.ilMediaItem.php.

References $DIC, and $ilDB.

Referenced by ilMapArea\_getMobsForTarget().

     : int {
        global $DIC;

        $ilDB = $DIC->database();

        // read media_object record
        $query = "SELECT * FROM media_item WHERE id = " .
            $ilDB->quote($a_med_id, "integer");
        $set = $ilDB->query($query);
        if ($rec = $ilDB->fetchAssoc($set)) {
            return (int) $rec["mob_id"];
        }

        return 0;
    }

Here is the caller graph for this function:

_resolveMapAreaLinks()

static ilMediaItem::_resolveMapAreaLinks ( int  $a_mob_id )

static

resolve internal links of all media items of a media object

Parameters

int

$a_mob_id

media object id

Definition at line 1126 of file class.ilMediaItem.php.

References $DIC, $ilDB, and ilMapArea\_resolveIntLinks().

Referenced by ilQuestionPageParser\processPagesToParse(), and ILIAS\COPage\Link\LinkManager\resolveIntLinks().

     : void {
        global $DIC;

        $ilDB = $DIC->database();

        //echo "mediaItems::resolve<br>";
        // read media_object record
        $query = "SELECT * FROM media_item WHERE mob_id = " .
            $ilDB->quote($a_mob_id, "integer") . " " .
            "ORDER BY nr";
        $item_set = $ilDB->query($query);
        while ($item_rec = $ilDB->fetchAssoc($item_set)) {
            ilMapArea::_resolveIntLinks($item_rec["id"]);
        }
    }

Here is the call graph for this function:

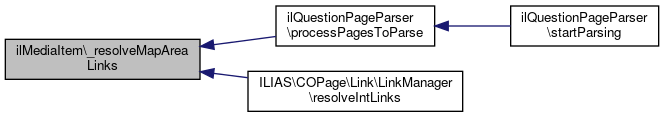

Here is the caller graph for this function:

addAreaToMapWorkCopy()

ilMediaItem::addAreaToMapWorkCopy	(	string	$a_shape,
		string	$a_coords
	)

draw a new area in work image

Parameters

string	$a_shape	shape
string	$a_coords	coordinates string

Definition at line 958 of file class.ilMediaItem.php.

References buildMapWorkImage(), getHeight(), getMapWorkCopyName(), getMapWorkImage(), getWidth(), and saveMapWorkImage().

     : void {
        $this->buildMapWorkImage();

        // determine ratios
        $size = getimagesize($this->getMapWorkCopyName());
        $x_ratio = 1;
        if ($size[0] > 0 && $this->getWidth() > 0) {
            $x_ratio = $this->getWidth() / $size[0];
        }
        $y_ratio = 1;
        if ($size[1] > 0 && $this->getHeight() > 0) {
            $y_ratio = $this->getHeight() / $size[1];
        }

        // add new area to work image
        $area = new ilMapArea();
        $area->setShape($a_shape);
        $area->setCoords($a_coords);
        $area->draw(
            $this->getMapWorkImage(),
            $this->color1,
            $this->color2,
            false,
            $x_ratio,
            $y_ratio
        );

        $this->saveMapWorkImage();
    }

Here is the call graph for this function:

addMapArea()

ilMediaItem::addMapArea

(

ilMapArea

$a_map_area

)

Definition at line 561 of file class.ilMediaItem.php.

References $map_cnt.

Referenced by read().

                                                     : void
    {
        $this->mapareas[$this->map_cnt] = $a_map_area;
        $this->map_cnt++;
    }

Here is the caller graph for this function:

buildMapWorkImage()

ilMediaItem::buildMapWorkImage

(

)

build image map work image

Definition at line 1008 of file class.ilMediaItem.php.

References getMapWorkCopyName(), and getMapWorkCopyType().

Referenced by addAreaToMapWorkCopy(), ilMediaAliasItem\makeMapWorkCopy(), and makeMapWorkCopy().

                                       : void
    {
        $im_type = strtolower($this->getMapWorkCopyType());

        switch ($im_type) {
            case "gif":
                $this->map_image = imagecreatefromgif($this->getMapWorkCopyName());
                break;

            case "jpg":
            case "jpeg":
                $this->map_image = imagecreatefromjpeg($this->getMapWorkCopyName());
                break;

            case "png":
                $this->map_image = imagecreatefrompng($this->getMapWorkCopyName());
                break;
        }

        // try to allocate black and white as color. if this is not possible, get the closest colors
        if (imagecolorstotal($this->map_image) > 250) {
            $this->color1 = imagecolorclosest($this->map_image, 0, 0, 0);
            $this->color2 = imagecolorclosest($this->map_image, 255, 255, 255);
        } else {
            $this->color1 = imagecolorallocate($this->map_image, 0, 0, 0);
            $this->color2 = imagecolorallocate($this->map_image, 255, 255, 255);
        }
    }

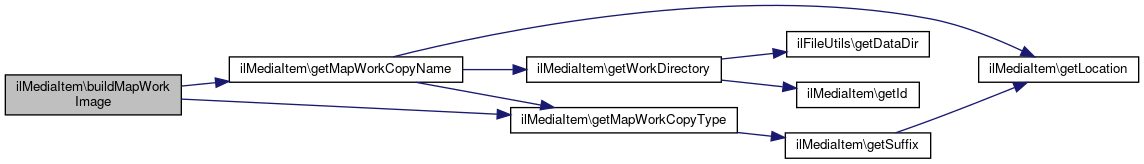

Here is the call graph for this function:

Here is the caller graph for this function:

checkParameter()

static ilMediaItem::checkParameter ( string  $a_par, string  $a_val  )

static

Check parameter (filter javascript related and other unsafe parameters/values)

Definition at line 685 of file class.ilMediaItem.php.

Referenced by ilMediaAliasItem\setParameters().

     : bool {
        // do not allow event attributes
        if (substr(strtolower(trim($a_par)), 0, 2) == "on") {
            return false;
        }
        // no javascript in value
        if (is_int(strpos(strtolower($a_val), "javascript"))) {
            return false;
        }
        // do not allow to change the src attribute
        if (strtolower(trim($a_par)) == "src") {
            return false;
        }

        return true;
    }

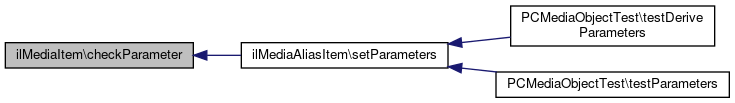

Here is the caller graph for this function:

copyOriginal()

ilMediaItem::copyOriginal

(

)

Copy the original file for map editing to the working directory.

Exceptions

ilMapEditingException

Definition at line 865 of file class.ilMediaItem.php.

References $lng, createWorkDirectory(), getDirectory(), getHeight(), getLocation(), getLocationType(), getMapWorkCopyName(), getMapWorkCopyType(), getWidth(), and ilLanguage\txt().

Referenced by ilMediaAliasItem\makeMapWorkCopy(), and makeMapWorkCopy().

                                  : void
    {
        $lng = $this->lng;
        $this->createWorkDirectory();

        if ($this->getLocationType() !== "Reference") {
            $this->image_converter->convertToFormat(
                $this->getDirectory() . "/" . $this->getLocation(),
                $this->getMapWorkCopyName(),
                $this->getMapWorkCopyType(),
                $this->getWidth() === '' ? null : $this->getWidth(),
                $this->getHeight() === '' ? null : $this->getHeight()
            );
        } else {
            // first copy the external file, if necessary
            if (!is_file($this->getMapWorkCopyName(true)) || (filesize($this->getMapWorkCopyName(true)) == 0)) {
                $handle = fopen($this->getLocation(), "r");
                $lcopy = fopen($this->getMapWorkCopyName(true), "w");
                if ($handle && $lcopy) {
                    while (!feof($handle)) {
                        $content = fread($handle, 4096);
                        fwrite($lcopy, $content);
                    }
                }
                fclose($lcopy);
                fclose($handle);
            }

            // now, create working copy
            $this->image_converter->convertToFormat(
                $this->getMapWorkCopyName(true),
                $this->getMapWorkCopyName(),
                $this->getMapWorkCopyType(),
                $this->getWidth() === '' ? null : $this->getWidth(),
                $this->getHeight() === '' ? null : $this->getHeight()
            );
        }
        if (!is_file($this->getMapWorkCopyName())) {
            throw new ilMapEditingException($lng->txt("cont_map_file_not_generated"));
        }
    }

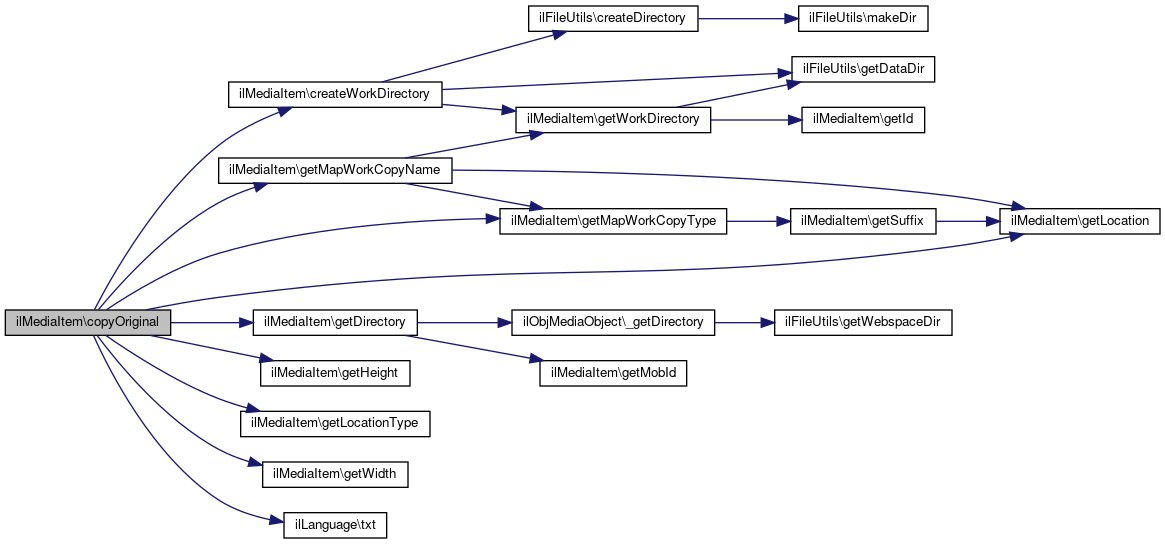

Here is the call graph for this function:

Here is the caller graph for this function:

create()

ilMediaItem::create

(

)

Definition at line 198 of file class.ilMediaItem.php.

References $db, $ilDB, $params, getCaption(), getDuration(), getFormat(), getHAlign(), getHeight(), getId(), getLocation(), getLocationType(), getMobId(), getNr(), getParameters(), getPurpose(), getTextRepresentation(), getUploadHash(), getWidth(), and setId().

                            : void
    {
        $ilDB = $this->db;

        $item_id = $ilDB->nextId("media_item");
        $query = "INSERT INTO media_item (id,mob_id, purpose, location, " .
            "location_type, format, width, " .
            "height, halign, caption, nr, text_representation, upload_hash, duration) VALUES " .
            "(" .
            $ilDB->quote($item_id, "integer") . "," .
            $ilDB->quote($this->getMobId(), "integer") . "," .
            $ilDB->quote($this->getPurpose(), "text") . "," .
            $ilDB->quote($this->getLocation(), "text") . "," .
            $ilDB->quote($this->getLocationType(), "text") . "," .
            $ilDB->quote($this->getFormat(), "text") . "," .
            $ilDB->quote($this->getWidth(), "text") . "," .
            $ilDB->quote($this->getHeight(), "text") . "," .
            $ilDB->quote($this->getHAlign(), "text") . "," .
            $ilDB->quote($this->getCaption(), "text") . "," .
            $ilDB->quote($this->getNr(), "integer") . "," .
            $ilDB->quote($this->getTextRepresentation(), "text") . "," .
            $ilDB->quote($this->getUploadHash(), "text") . "," .
            $ilDB->quote($this->getDuration(), "integer") .
            ")";
        $ilDB->manipulate($query);

        $this->setId($item_id);

        // create mob parameters
        $params = $this->getParameters();
        foreach ($params as $name => $value) {
            $query = "INSERT INTO mob_parameter (med_item_id, name, value) VALUES " .
                "(" . $ilDB->quote($item_id, "integer") . "," .
                $ilDB->quote($name, "text") . "," .
                $ilDB->quote($value, "text") . ")";
            $ilDB->manipulate($query);
        }

        // create map areas
        for ($i = 0; $i < count($this->mapareas); $i++) {
            if (is_object($this->mapareas[$i])) {
                $this->mapareas[$i]->setItemId($this->getId());
                $this->mapareas[$i]->setNr($i + 1);
                $this->mapareas[$i]->create();
            }
        }
    }

Here is the call graph for this function:

createWorkDirectory()

ilMediaItem::createWorkDirectory

(

)

create work directory for image map editing

Definition at line 738 of file class.ilMediaItem.php.

References ilFileUtils\createDirectory(), ilFileUtils\getDataDir(), and getWorkDirectory().

Referenced by copyOriginal().

                                         : void
    {
        if (!is_dir(ilFileUtils::getDataDir() . "/map_workfiles")) {
            ilFileUtils::createDirectory(ilFileUtils::getDataDir() . "/map_workfiles");
        }
        $work_dir = $this->getWorkDirectory();
        if (!is_dir($work_dir)) {
            ilFileUtils::createDirectory($work_dir);
        }
    }

Here is the call graph for this function:

Here is the caller graph for this function:

deleteAllItemsOfMob()

static ilMediaItem::deleteAllItemsOfMob ( int  $a_mob_id )

static

Definition at line 483 of file class.ilMediaItem.php.

References $DIC, and $ilDB.

Referenced by ilObjMediaObject\delete(), and ilObjMediaObject\update().

                                                             : void
    {
        global $DIC;

        $ilDB = $DIC->database();

        // iterate all media items ob mob
        $query = "SELECT * FROM media_item WHERE mob_id = " .
            $ilDB->quote($a_mob_id, "integer");
        $item_set = $ilDB->query($query);
        while ($item_rec = $ilDB->fetchAssoc($item_set)) {
            // delete all parameters of media item
            $query = "DELETE FROM mob_parameter WHERE med_item_id = " .
                $ilDB->quote($item_rec["id"], "integer");
            $ilDB->manipulate($query);

            // delete all map areas of media item
            $query = "DELETE FROM map_area WHERE item_id = " .
                $ilDB->quote($item_rec["id"], "integer");
            $ilDB->manipulate($query);
        }

        // delete media items
        $query = "DELETE FROM media_item WHERE mob_id = " .
            $ilDB->quote($a_mob_id, "integer");
        $ilDB->manipulate($query);
    }

Here is the caller graph for this function:

deleteMapArea()

ilMediaItem::deleteMapArea

(

int

$nr

)

Definition at line 567 of file class.ilMediaItem.php.

References $map_cnt.

                                          : void
    {
        for ($i = 1; $i <= $this->map_cnt; $i++) {
            if ($i > $nr) {
                $this->mapareas[$i - 2] = $this->mapareas[$i - 1];
                $this->mapareas[$i - 2]->setNr($i - 1);
            }
        }
        if ($nr <= $this->map_cnt) {
            unset($this->mapareas[$this->map_cnt - 1]);
            $this->map_cnt--;
        }
    }

determineDuration()

ilMediaItem::determineDuration

(

)

Definition at line 1184 of file class.ilMediaItem.php.

References Vendor\Package\$e, ilObjMediaObject\_getDirectory(), ilExternalMediaAnalyzer\extractVimeoParameters(), getLocation(), getLocationType(), getMobId(), ilExternalMediaAnalyzer\getVimeoMetadata(), ilFileUtils\ilTempnam(), ilExternalMediaAnalyzer\isVimeo(), ilFileUtils\makeDir(), and setDuration().

Referenced by ilObjMediaCastGUI\getDuration().

                                       : void
    {
        $ana = new ilMediaAnalyzer();

        if (ilExternalMediaAnalyzer::isVimeo($this->getLocation())) {
            $par = ilExternalMediaAnalyzer::extractVimeoParameters($this->getLocation());
            $meta = ilExternalMediaAnalyzer::getVimeoMetadata($par["id"]);
            if ($meta["duration"] > 0) {
                $this->setDuration((int) $meta["duration"]);
            }
        } else {
            $file = ($this->getLocationType() == "Reference")
                ? $this->getLocation()
                : ilObjMediaObject::_getDirectory($this->getMobId()) . "/" . $this->getLocation();

            $remote = false;

            try {
                if (substr($file, 0, 4) == "http") {
                    if ($fp_remote = fopen($file, 'rb')) {
                        $tmpdir = ilFileUtils::ilTempnam();
                        ilFileUtils::makeDir($tmpdir);
                        $localtempfilename = tempnam($tmpdir, 'getID3');
                        if ($fp_local = fopen($localtempfilename, 'wb')) {
                            while ($buffer = fread($fp_remote, 8192)) {
                                fwrite($fp_local, $buffer);
                            }
                            fclose($fp_local);
                            $file = $localtempfilename;
                        }
                        fclose($fp_remote);
                    }
                }

                $ana->setFile($file);
                $ana->analyzeFile();
                $this->setDuration((int) $ana->getPlaytimeSeconds());

                if ($remote) {
                    unlink($localtempfilename);
                }
            } catch (Exception $e) {
            }
        }
    }

Here is the call graph for this function:

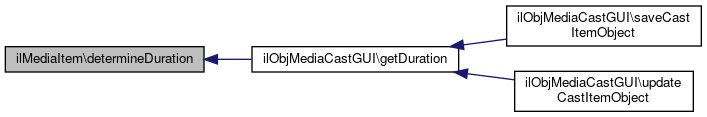

Here is the caller graph for this function:

extractUrlParameters()

ilMediaItem::extractUrlParameters

(

)

Extract parameters of special external references to parameter array.

Definition at line 1173 of file class.ilMediaItem.php.

References ilExternalMediaAnalyzer\extractUrlParameters(), getLocation(), getParameters(), and setParameter().

                                          : void
    {
        $par = ilExternalMediaAnalyzer::extractUrlParameters(
            $this->getLocation(),
            $this->getParameters()
        );
        foreach ($par as $k => $v) {
            $this->setParameter($k, $v);
        }
    }

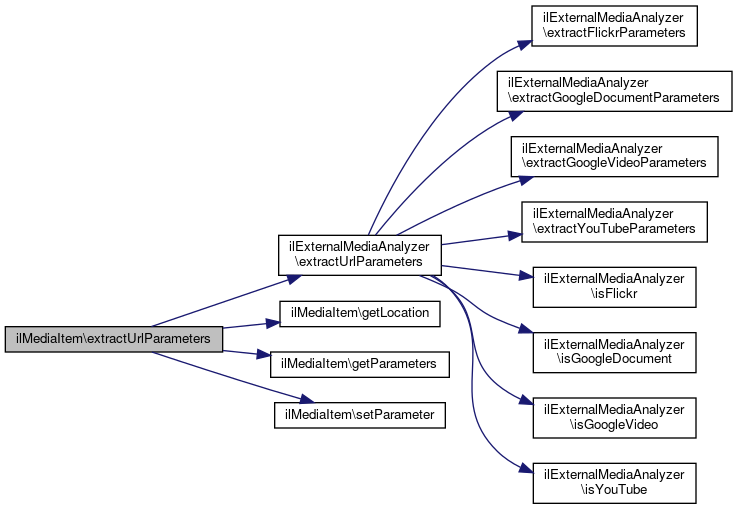

Here is the call graph for this function:

getCaption()

ilMediaItem::getCaption

(

)

Definition at line 636 of file class.ilMediaItem.php.

References $caption.

Referenced by create(), and update().

                                : string
    {
        return $this->caption;
    }

Here is the caller graph for this function:

getDirectory()

ilMediaItem::getDirectory

(

)

get media file directory

Definition at line 790 of file class.ilMediaItem.php.

References ilObjMediaObject\_getDirectory(), and getMobId().

Referenced by copyOriginal(), and getThumbnailTarget().

                                  : string
    {
        return ilObjMediaObject::_getDirectory($this->getMobId());
    }

Here is the call graph for this function:

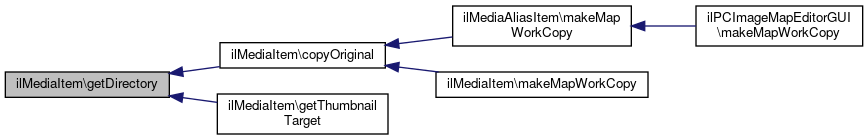

Here is the caller graph for this function:

getDuration()

ilMediaItem::getDuration

(

)

Definition at line 173 of file class.ilMediaItem.php.

References $duration.

Referenced by create(), ilObjMediaCastGUI\getDuration(), and update().

                                 : int
    {
        return $this->duration;
    }

Here is the caller graph for this function:

getFormat()

ilMediaItem::getFormat

(

)

Definition at line 546 of file class.ilMediaItem.php.

References $format.

Referenced by create(), getOriginalSize(), getThumbnailTarget(), and update().

                               : string
    {
        return $this->format;
    }

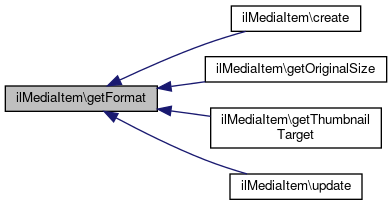

Here is the caller graph for this function:

getGDSupportedImageType()

static ilMediaItem::getGDSupportedImageType ( string  $a_desired_type )

staticprivate

returns the best supported image type by this PHP build

Parameters

string

$a_desired_type

Returns

string supported image type ("jpg" | "gif" | "png" | "")

Definition at line 119 of file class.ilMediaItem.php.

                                                                           : string
    {
        $a_desired_type = strtolower($a_desired_type);
        // get supported Image Types
        $im_types = ImageTypes();

        switch ($a_desired_type) {
            case "jpg":
            case "jpeg":
                if ($im_types & IMG_JPG) {
                    return "jpg";
                }
                if ($im_types & IMG_GIF) {
                    return "gif";
                }
                if ($im_types & IMG_PNG) {
                    return "png";
                }
                break;

            case "gif":
                if ($im_types & IMG_GIF) {
                    return "gif";
                }
                if ($im_types & IMG_JPG) {
                    return "jpg";
                }
                if ($im_types & IMG_PNG) {
                    return "png";
                }
                break;

            case "svg":
            case "png":
                if ($im_types & IMG_PNG) {
                    return "png";
                }
                if ($im_types & IMG_JPG) {
                    return "jpg";
                }
                if ($im_types & IMG_GIF) {
                    return "gif";
                }
                break;
        }

        return "";
    }

getHAlign()

ilMediaItem::getHAlign

(

)

Definition at line 649 of file class.ilMediaItem.php.

References $halign.

Referenced by create(), and update().

                               : string
    {
        return $this->halign;
    }

Here is the caller graph for this function:

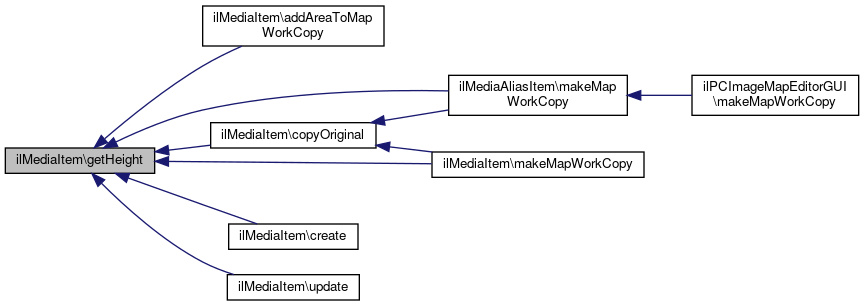

getHeight()

ilMediaItem::getHeight

(

)

Definition at line 601 of file class.ilMediaItem.php.

References $height.

Referenced by addAreaToMapWorkCopy(), copyOriginal(), create(), ilMediaAliasItem\makeMapWorkCopy(), makeMapWorkCopy(), and update().

                               : string
    {
        return $this->height;
    }

Here is the caller graph for this function:

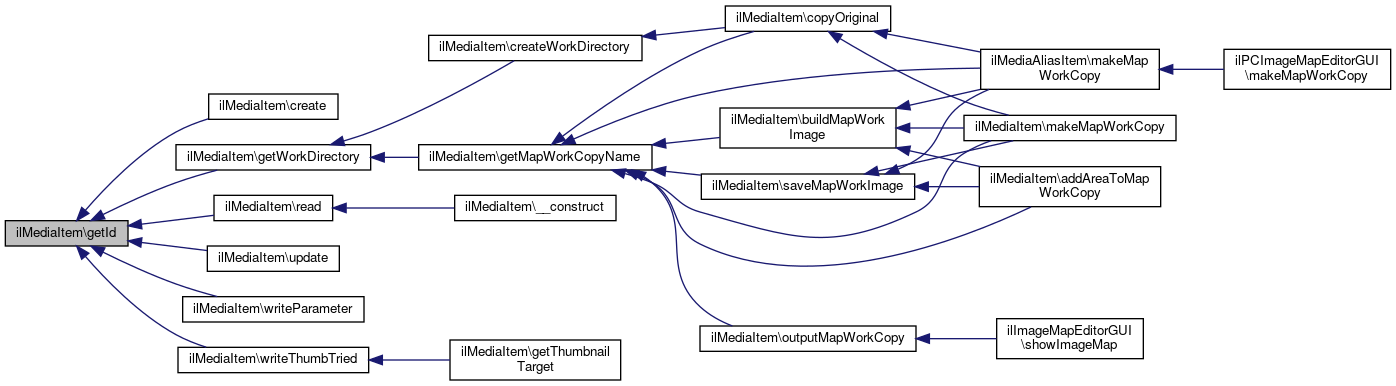

getId()

ilMediaItem::getId

(

)

Definition at line 81 of file class.ilMediaItem.php.

References $id.

Referenced by create(), getWorkDirectory(), read(), update(), writeParameter(), and writeThumbTried().

                           : int
    {
        return $this->id;
    }

Here is the caller graph for this function:

getLocation()

ilMediaItem::getLocation

(

)

Definition at line 526 of file class.ilMediaItem.php.

References $location.

Referenced by copyOriginal(), create(), determineDuration(), extractUrlParameters(), getMapWorkCopyName(), getOriginalSize(), getSuffix(), getThumbnailTarget(), update(), and ilObjMediaCastGUI\updateMediaItem().

                                 : string
    {
        return $this->location;
    }

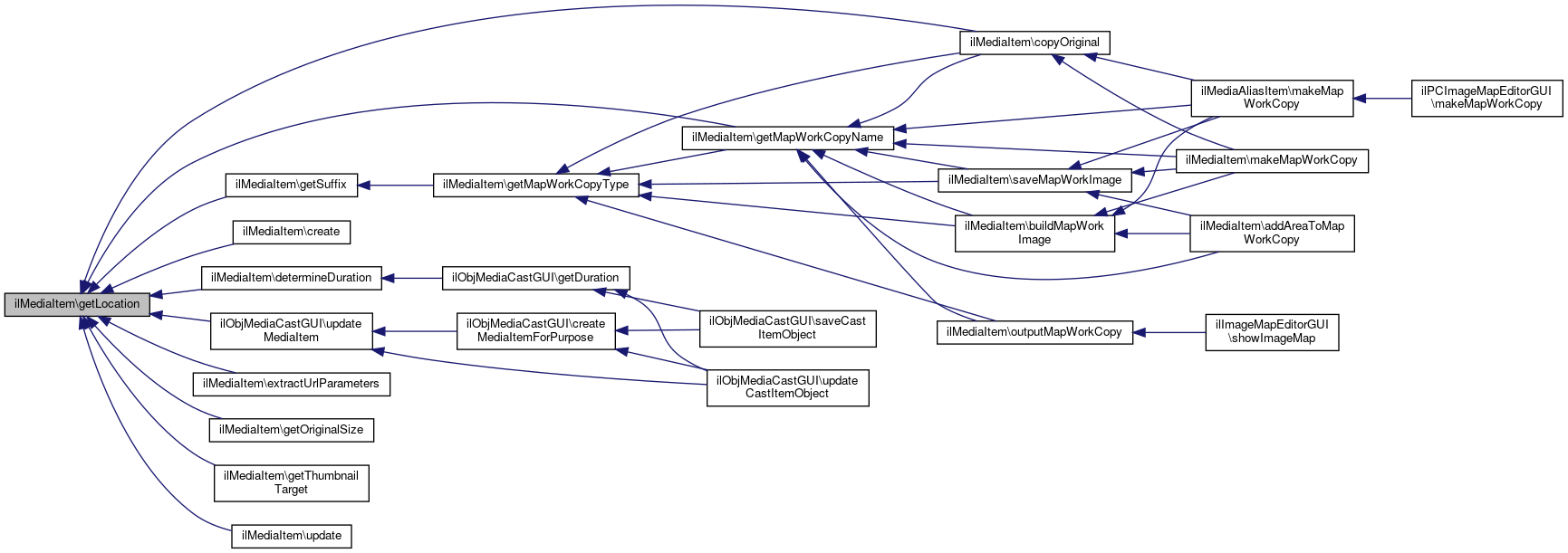

Here is the caller graph for this function:

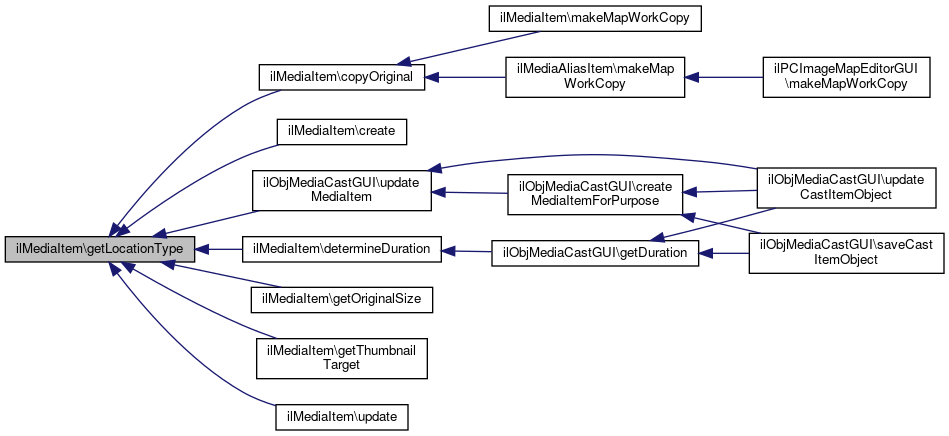

getLocationType()

ilMediaItem::getLocationType

(

)

Definition at line 536 of file class.ilMediaItem.php.

References $location_type.

Referenced by copyOriginal(), create(), determineDuration(), getOriginalSize(), getThumbnailTarget(), update(), and ilObjMediaCastGUI\updateMediaItem().

                                     : string
    {
        return $this->location_type;
    }

Here is the caller graph for this function:

getMapArea()

ilMediaItem::getMapArea

(

int

$nr

)

Definition at line 581 of file class.ilMediaItem.php.

                                       : ?ilMapArea
    {
        return $this->mapareas[$nr - 1] ?? null;
    }

getMapAreas()

ilMediaItem::getMapAreas

(

)

Definition at line 586 of file class.ilMediaItem.php.

References $mapareas.

                                 : array
    {
        return $this->mapareas;
    }

getMapAreasXML()

ilMediaItem::getMapAreasXML	(	bool	$a_insert_inst = false,
		int	$a_inst = 0
	)

get xml code of media items' areas

Definition at line 1074 of file class.ilMediaItem.php.

References IL_INT_LINK.

     : string {
        $xml = "";

        // build xml of map areas
        for ($i = 0; $i < count($this->mapareas); $i++) {
            $area = $this->mapareas[$i];

            // highlight mode
            $hm = "";
            if ($area->getHighlightMode() != "") {
                $hm = ' HighlightMode="' . $area->getHighlightMode() . '" ';
                $hcl = ($area->getHighlightClass() != "")
                    ? $area->getHighlightClass()
                    : "Accented";
                $hm .= 'HighlightClass="' . $hcl . '" ';
            }

            $xml .= "<MapArea Shape=\"" . $area->getShape() . "\" Coords=\"" . $area->getCoords() . "\" " . $hm . ">";
            if ($area->getLinkType() == IL_INT_LINK) {
                $target_frame = $area->getTargetFrame();

                if ($area->getType() == "GlossaryItem" && $target_frame == "") {
                    $target_frame = "Glossary";
                }

                $tf_str = ($target_frame == "")
                    ? ""
                    : "TargetFrame=\"" . $target_frame . "\"";

                $xml .= "<IntLink Target=\"" . $area->getTarget($a_insert_inst, $a_inst) . "\" Type=\"" .
                    $area->getType() . "\" $tf_str>";
                // see bug 17893 and http://stackoverflow.com/questions/4026502/xml-error-at-ampersand
                $xml .= htmlspecialchars($area->getTitle(), ENT_QUOTES);
                $xml .= "</IntLink>";
            } else {
                $xml .= "<ExtLink Href=\"" . str_replace("&", "&amp;", $area->getHref()) . "\" Title=\"" .
                    str_replace("&", "&amp;", $area->getExtTitle()) . "\">";
                $xml .= str_replace("&", "&amp;", $area->getTitle());
                $xml .= "</ExtLink>";
            }
            $xml .= "</MapArea>";
        }
        return $xml;
    }

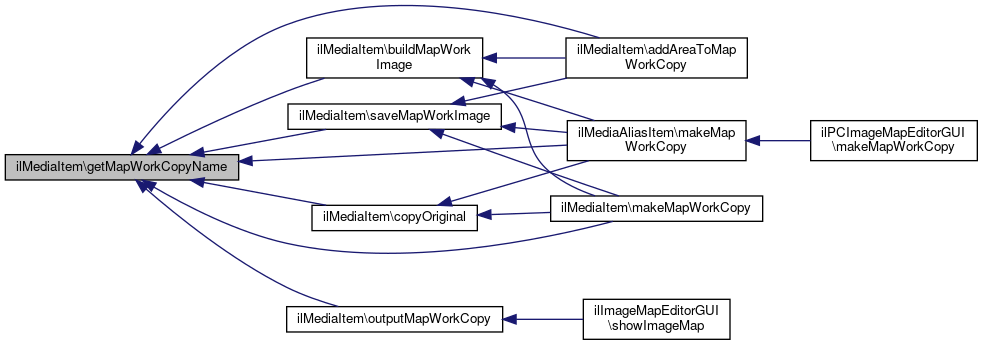

getMapWorkCopyName()

ilMediaItem::getMapWorkCopyName

(

bool

$a_reference_copy = false

)

Get name of image map work copy file.

Parameters

bool

$a_reference_copy

get name for copy of external referenced image

Definition at line 771 of file class.ilMediaItem.php.

References getLocation(), getMapWorkCopyType(), and getWorkDirectory().

Referenced by addAreaToMapWorkCopy(), buildMapWorkImage(), copyOriginal(), ilMediaAliasItem\makeMapWorkCopy(), makeMapWorkCopy(), outputMapWorkCopy(), and saveMapWorkImage().

     : string {
        $file_arr = explode("/", $this->getLocation());
        $o_file = $file_arr[count($file_arr) - 1];
        $file_arr = explode(".", $o_file);
        unset($file_arr[count($file_arr) - 1]);
        $file = implode(".", $file_arr);

        if (!$a_reference_copy) {
            return $this->getWorkDirectory() . "/" . $file . "." . $this->getMapWorkCopyType();
        } else {
            return $this->getWorkDirectory() . "/l_copy_" . $o_file;
        }
    }

Here is the call graph for this function:

Here is the caller graph for this function:

getMapWorkCopyType()

ilMediaItem::getMapWorkCopyType

(

)

get image type of image map work copy

Definition at line 762 of file class.ilMediaItem.php.

References getSuffix().

Referenced by buildMapWorkImage(), copyOriginal(), getMapWorkCopyName(), outputMapWorkCopy(), and saveMapWorkImage().

                                        : string
    {
        return self::getGDSupportedImageType($this->getSuffix());
    }

Here is the call graph for this function:

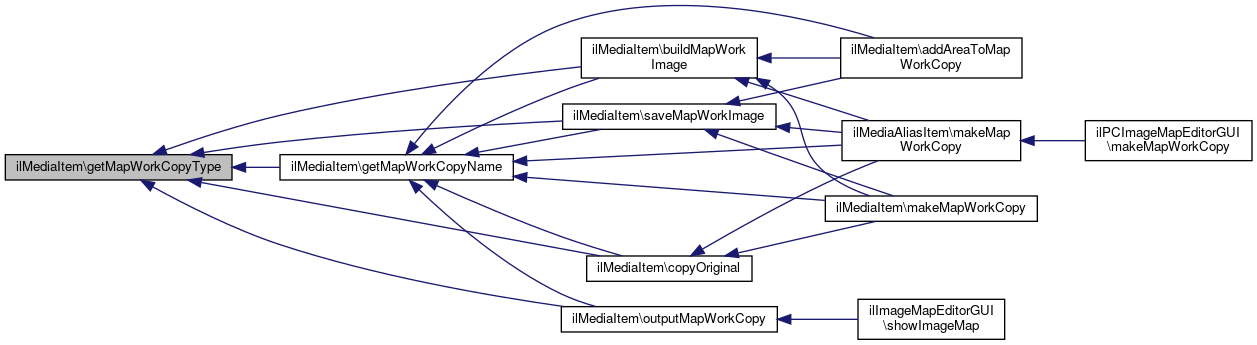

Here is the caller graph for this function:

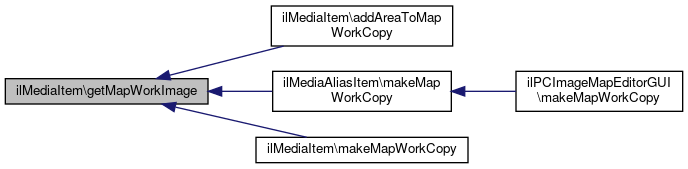

getMapWorkImage()

ilMediaItem::getMapWorkImage

(

)

Returns

GdImage|resource|null

Definition at line 1066 of file class.ilMediaItem.php.

References $map_image.

Referenced by addAreaToMapWorkCopy(), ilMediaAliasItem\makeMapWorkCopy(), and makeMapWorkCopy().

    {
        return $this->map_image;
    }

Here is the caller graph for this function:

getMediaItemsForUploadHash()

static ilMediaItem::getMediaItemsForUploadHash ( string  $a_hash )

static

Get media items for upload hash.

Parameters

string

$a_hash

upload hash

Returns

array[]

Definition at line 1235 of file class.ilMediaItem.php.

References $DIC, ilDBInterface\fetchAssoc(), and ilDBInterface\queryF().

Referenced by ilMediaCreationGUI\editTitlesAndDescriptions(), ilObjMediaPoolGUI\editTitlesAndDescriptions(), ilMediaCreationGUI\saveTitlesAndDescriptions(), and ilObjMediaPoolGUI\saveTitlesAndDescriptions().

     : array {
        global $DIC;

        $db = $DIC->database();

        $set = $db->queryF(
            "SELECT * FROM media_item " .
            " WHERE upload_hash = %s ",
            array("text"),
            array($a_hash)
        );
        $media_items = array();
        while ($rec = $db->fetchAssoc($set)) {
            $media_items[] = $rec;
        }
        return $media_items;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

getMobId()

ilMediaItem::getMobId

(

)

Definition at line 94 of file class.ilMediaItem.php.

References $mob_id.

Referenced by create(), determineDuration(), getDirectory(), getOriginalSize(), getThumbnailDirectory(), getThumbnailTarget(), read(), and update().

                              : int
    {
        return $this->mob_id;
    }

Here is the caller graph for this function:

getNr()

ilMediaItem::getNr

(

)

Definition at line 107 of file class.ilMediaItem.php.

References $nr.

Referenced by create(), read(), and update().

                           : int
    {
        return $this->nr;
    }

Here is the caller graph for this function:

getOriginalSize()

ilMediaItem::getOriginalSize

(

)

Definition at line 611 of file class.ilMediaItem.php.

References ilObjMediaObject\_getDirectory(), ilUtil\deducibleSize(), getFormat(), ilMediaImageUtil\getImageSize(), getLocation(), getLocationType(), and getMobId().

                                     : ?array
    {
        $mob_dir = ilObjMediaObject::_getDirectory($this->getMobId());

        if (ilUtil::deducibleSize($this->getFormat())) {
            if ($this->getLocationType() == "LocalFile") {
                $loc = $mob_dir . "/" . $this->getLocation();
            } else {
                $loc = $this->getLocation();
            }

            $size = ilMediaImageUtil::getImageSize($loc);
            if ($size[0] > 0 && $size[1] > 0) {
                return array("width" => $size[0], "height" => $size[1]);
            }
        }

        return null;
    }

Here is the call graph for this function:

getParameter()

ilMediaItem::getParameter

(

string

$a_name

)

Definition at line 722 of file class.ilMediaItem.php.

                                                : string
    {
        return (string) ($this->parameters[$a_name] ?? "");
    }

getParameters()

ilMediaItem::getParameters

(

)

Definition at line 705 of file class.ilMediaItem.php.

References $parameters.

Referenced by create(), extractUrlParameters(), and update().

                                   : array
    {
        return $this->parameters;
    }

Here is the caller graph for this function:

getParameterString()

ilMediaItem::getParameterString

(

)

Definition at line 710 of file class.ilMediaItem.php.

                                        : string
    {
        if (is_array($this->parameters)) {
            $target_arr = [];
            foreach ($this->parameters as $par => $val) {
                $target_arr[] = "$par=\"$val\"";
            }
            return implode(", ", $target_arr);
        }
        return "";
    }

getPurpose()

ilMediaItem::getPurpose

(

)

Definition at line 516 of file class.ilMediaItem.php.

References $purpose.

Referenced by create(), getThumbnailTarget(), update(), and ilObjMediaCastGUI\updateMediaItem().

                                : string
    {
        return $this->purpose;
    }

Here is the caller graph for this function:

getSuffix()

ilMediaItem::getSuffix

(

)

get location suffix

Definition at line 752 of file class.ilMediaItem.php.

References getLocation().

Referenced by getMapWorkCopyType().

                               : string
    {
        $loc_arr = explode(".", $this->getLocation());

        return $loc_arr[count($loc_arr) - 1];
    }

Here is the call graph for this function:

Here is the caller graph for this function:

getTextRepresentation()

ilMediaItem::getTextRepresentation

(

)

Definition at line 183 of file class.ilMediaItem.php.

References $text_representation.

Referenced by create(), and update().

                                           : string
    {
        return $this->text_representation;
    }

Here is the caller graph for this function:

getThumbnailDirectory()

ilMediaItem::getThumbnailDirectory

(

string

$a_mode = "filesystem"

)

get media file directory

Definition at line 798 of file class.ilMediaItem.php.

References ilObjMediaObject\_getThumbnailDirectory(), and getMobId().

Referenced by getThumbnailTarget().

     : string {
        return ilObjMediaObject::_getThumbnailDirectory($this->getMobId(), $a_mode);
    }

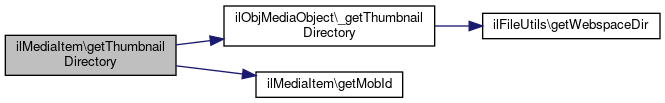

Here is the call graph for this function:

Here is the caller graph for this function:

getThumbnailTarget()

ilMediaItem::getThumbnailTarget

(

string

$a_size = ""

)

get thumbnail target

Definition at line 807 of file class.ilMediaItem.php.

References $format, ilObjMediaObject\_createThumbnailDirectory(), ilObjMediaObject\_getURL(), getDirectory(), getFormat(), getLocation(), getLocationType(), getMobId(), getPurpose(), getThumbnailDirectory(), getThumbTried(), and writeThumbTried().

     : string {
        $jpeg_file = $this->getThumbnailDirectory() . "/" .
            $this->getPurpose() . ".jpeg";
        $format = "png";
        if (is_file($jpeg_file)) {
            $format = "jpeg";
        }
        if (is_int(strpos($this->getFormat(), "image"))) {
            $thumb_file = $this->getThumbnailDirectory() . "/" .
                $this->getPurpose() . "." . $format;
            $thumb_file_small = $this->getThumbnailDirectory() . "/" .
                $this->getPurpose() . "_small." . $format;
            // generate thumbnail (if not tried before)
            if ($this->getThumbTried() == "n" && $this->getLocationType() == "LocalFile" && $this->getFormat() !== "image/svg+xml") {
                if (is_file($thumb_file)) {
                    unlink($thumb_file);
                }
                if (is_file($thumb_file_small)) {
                    unlink($thumb_file_small);
                }
                $this->writeThumbTried("y");
                ilObjMediaObject::_createThumbnailDirectory($this->getMobId());
                $med_file = $this->getDirectory() . "/" . $this->getLocation();

                if (is_file($med_file)) {
                    $mob = new ilObjMediaObject($this->getMobId());
                    $mob->makeThumbnail($this->getLocation(), $this->getPurpose() . "." . $format, $format, "80");
                    $mob->makeThumbnail($this->getLocation(), $this->getPurpose() . "_small." . $format, $format, "40");
                }
            }
            if ($this->getFormat() === "image/svg+xml") {
                return ilObjMediaObject::_getURL($this->getMobId()) . "/" . $this->getLocation();
            }
            if ($a_size == "small") {
                if (is_file($thumb_file_small)) {
                    $random = new \ilRandom();
                    return $this->getThumbnailDirectory("output") . "/" .
                        $this->getPurpose() . "_small." . $format . "?dummy=" . $random->int(1, 999999);
                }
            } else {
                if (is_file($thumb_file)) {
                    $random = new \ilRandom();
                    return $this->getThumbnailDirectory("output") . "/" .
                        $this->getPurpose() . "." . $format . "?dummy=" . $random->int(1, 999999);
                }
            }
        }

        return "";
    }

Here is the call graph for this function:

getThumbTried()

ilMediaItem::getThumbTried

(

)

Definition at line 556 of file class.ilMediaItem.php.

References $tried_thumb.

Referenced by getThumbnailTarget().

                                   : string
    {
        return $this->tried_thumb;
    }

Here is the caller graph for this function:

getUploadHash()

ilMediaItem::getUploadHash

(

)

Definition at line 193 of file class.ilMediaItem.php.

References $upload_hash.

Referenced by create(), and update().

                                   : string
    {
        return $this->upload_hash;
    }

Here is the caller graph for this function:

getWidth()

ilMediaItem::getWidth

(

)

Definition at line 591 of file class.ilMediaItem.php.

References $width.

Referenced by addAreaToMapWorkCopy(), copyOriginal(), create(), ilMediaAliasItem\makeMapWorkCopy(), makeMapWorkCopy(), and update().

                              : string
    {
        return $this->width;
    }

Here is the caller graph for this function:

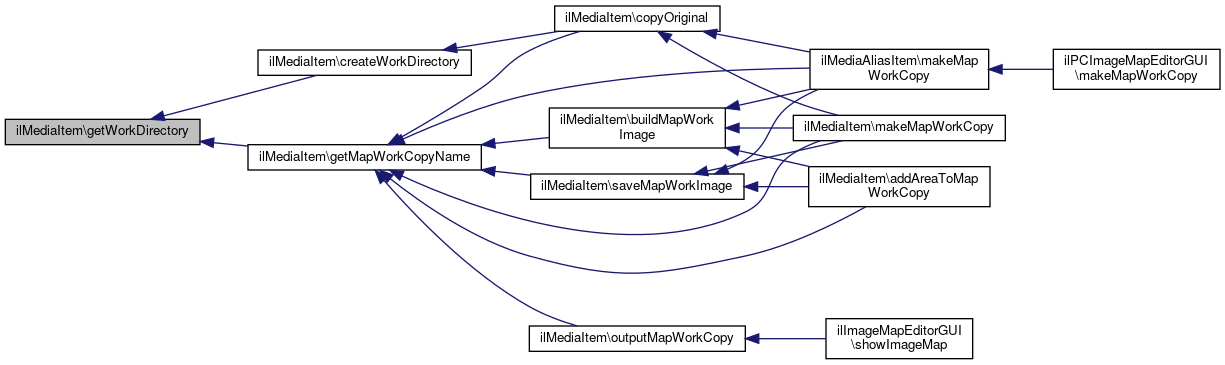

getWorkDirectory()

ilMediaItem::getWorkDirectory

(

)

get work directory for image map editing

Definition at line 730 of file class.ilMediaItem.php.

References ilFileUtils\getDataDir(), and getId().

Referenced by createWorkDirectory(), and getMapWorkCopyName().

                                      : string
    {
        return ilFileUtils::getDataDir() . "/map_workfiles/item_" . $this->getId();
    }

Here is the call graph for this function:

Here is the caller graph for this function:

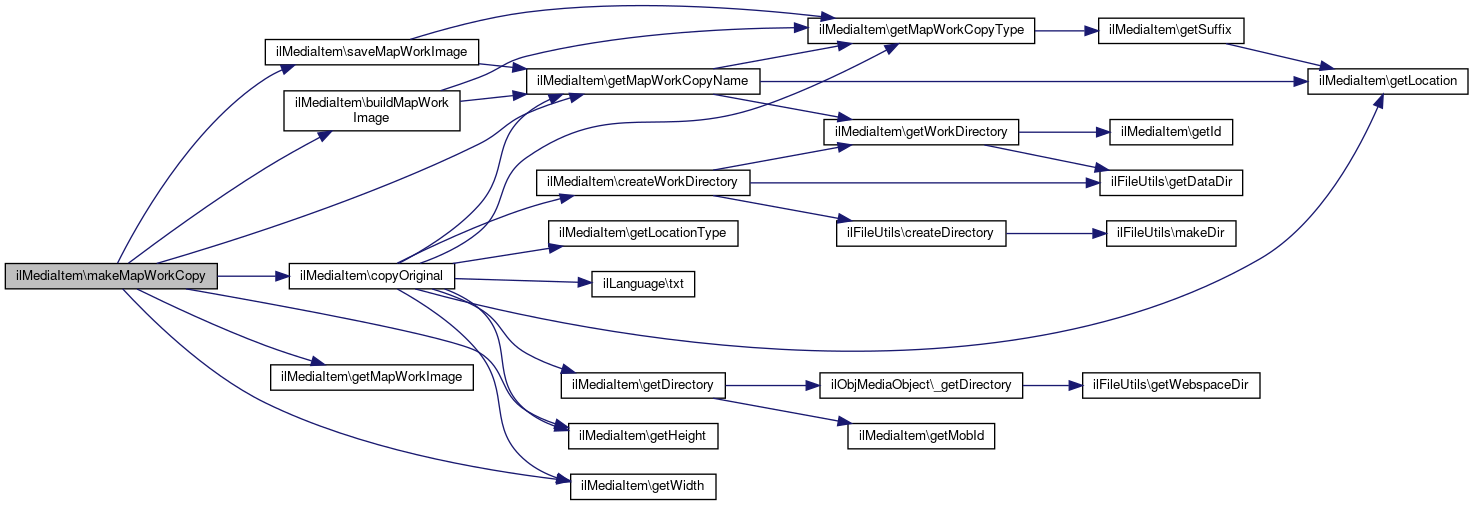

makeMapWorkCopy()

ilMediaItem::makeMapWorkCopy	(	int	$a_area_nr = 0,
		bool	$a_exclude = false
	)

make map work copy of image

Parameters

int	$a_area_nr	draw area $a_area_nr only
bool	$a_exclude	true: draw all areas but area $a_area_nr

Definition at line 912 of file class.ilMediaItem.php.

References $lng, buildMapWorkImage(), copyOriginal(), getHeight(), getMapWorkCopyName(), getMapWorkImage(), getWidth(), and saveMapWorkImage().

     : void {
        $lng = $this->lng;

        $this->copyOriginal();
        $this->buildMapWorkImage();

        // determine ratios
        $size = getimagesize($this->getMapWorkCopyName());
        $x_ratio = 1;
        if ($size[0] > 0 && $this->getWidth() > 0) {
            $x_ratio = $this->getWidth() / $size[0];
        }
        $y_ratio = 1;
        if ($size[1] > 0 && $this->getHeight() > 0) {
            $y_ratio = $this->getHeight() / $size[1];
        }

        // draw map areas
        for ($i = 0; $i < count($this->mapareas); $i++) {
            if (((($i + 1) == $a_area_nr) && !$a_exclude) ||
                ((($i + 1) != $a_area_nr) && $a_exclude) ||
                ($a_area_nr == 0)
            ) {
                $area = $this->mapareas[$i];
                $area->draw(
                    $this->getMapWorkImage(),
                    $this->color1,
                    $this->color2,
                    true,
                    $x_ratio,
                    $y_ratio
                );
            }
        }

        $this->saveMapWorkImage();
    }

Here is the call graph for this function:

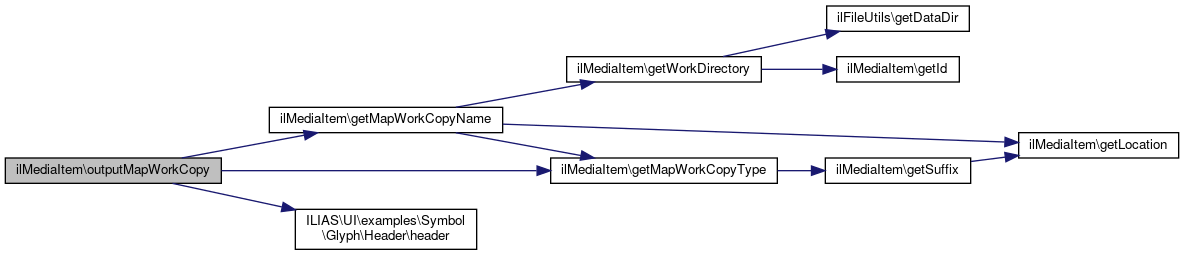

outputMapWorkCopy()

ilMediaItem::outputMapWorkCopy

(

)

output raw map work copy file

Definition at line 994 of file class.ilMediaItem.php.

References exit, getMapWorkCopyName(), getMapWorkCopyType(), and ILIAS\UI\examples\Symbol\Glyph\Header\header().

Referenced by ilImageMapEditorGUI\showImageMap().

                                       : void
    {
        if ($this->getMapWorkCopyType() != "") {
            header("Pragma: no-cache");
            header("Expires: 0");
            header("Content-type: image/" . strtolower($this->getMapWorkCopyType()));
            readfile($this->getMapWorkCopyName());
        }
        exit;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

read()

ilMediaItem::read

(

)

read media item data (item id or (mob_id and nr) must be set)

Definition at line 299 of file class.ilMediaItem.php.

References $db, $ilDB, ilMapArea\_getMaxNr(), addMapArea(), getId(), getMobId(), getNr(), setCaption(), setDuration(), setFormat(), setHAlign(), setHeight(), setId(), setLocation(), setLocationType(), setMobId(), setNr(), setParameter(), setPurpose(), setTextRepresentation(), setThumbTried(), setUploadHash(), and setWidth().

Referenced by __construct().

                          : void
    {
        $ilDB = $this->db;

        $item_id = $this->getId();
        $mob_id = $this->getMobId();
        $nr = $this->getNr();
        $query = "";
        if ($item_id > 0) {
            $query = "SELECT * FROM media_item WHERE id = " .
                $ilDB->quote($this->getId(), "integer");
        } elseif ($mob_id > 0 && $nr > 0) {
            $query = "SELECT * FROM media_item WHERE mob_id = " .
                $ilDB->quote($this->getMobId(), "integer") . " " .
                "AND nr=" . $ilDB->quote($this->getNr(), "integer");
        }
        if ($query != "") {
            $item_set = $ilDB->query($query);
            $item_rec = $ilDB->fetchAssoc($item_set);

            $this->setLocation((string) $item_rec["location"]);
            $this->setLocationType((string) $item_rec["location_type"]);
            $this->setFormat((string) $item_rec["format"]);
            $this->setWidth((string) $item_rec["width"]);
            $this->setHeight((string) $item_rec["height"]);
            $this->setHAlign((string) $item_rec["halign"]);
            $this->setCaption((string) $item_rec["caption"]);
            $this->setPurpose((string) $item_rec["purpose"]);
            $this->setNr((int) $item_rec["nr"]);
            $this->setMobId((int) $item_rec["mob_id"]);
            $this->setId((int) $item_rec["id"]);
            $this->setThumbTried((string) $item_rec["tried_thumb"]);
            $this->setTextRepresentation((string) $item_rec["text_representation"]);
            $this->setUploadHash((string) $item_rec["upload_hash"]);
            $this->setDuration((int) $item_rec["duration"]);

            // get item parameter
            $query = "SELECT * FROM mob_parameter WHERE med_item_id = " .
                $ilDB->quote($this->getId(), "integer");
            $par_set = $ilDB->query($query);
            while ($par_rec = $ilDB->fetchAssoc($par_set)) {
                $this->setParameter($par_rec["name"], $par_rec["value"]);
            }

            // get item map areas
            $max = ilMapArea::_getMaxNr($this->getId());
            for ($i = 1; $i <= $max; $i++) {
                $area = new ilMapArea($this->getId(), $i);
                $this->addMapArea($area);
            }
        }
    }

Here is the call graph for this function:

Here is the caller graph for this function:

resetParameters()

ilMediaItem::resetParameters

(

)

Definition at line 663 of file class.ilMediaItem.php.

Referenced by setParameters().

                                     : void
    {
        $this->parameters = [];
    }

Here is the caller graph for this function:

saveMapWorkImage()

ilMediaItem::saveMapWorkImage

(

)

save image map work image as file

Definition at line 1040 of file class.ilMediaItem.php.

References getMapWorkCopyName(), and getMapWorkCopyType().

Referenced by addAreaToMapWorkCopy(), ilMediaAliasItem\makeMapWorkCopy(), and makeMapWorkCopy().

                                      : void
    {
        $im_type = strtolower($this->getMapWorkCopyType());

        // save image work-copy and free memory
        switch ($im_type) {
            case "gif":
                imagegif($this->map_image, $this->getMapWorkCopyName());
                break;

            case "jpg":
            case "jpeg":
                imagejpeg($this->map_image, $this->getMapWorkCopyName());
                break;

            case "png":
                imagepng($this->map_image, $this->getMapWorkCopyName());
                break;
        }

        imagedestroy($this->map_image);
    }

Here is the call graph for this function:

Here is the caller graph for this function:

setCaption()

ilMediaItem::setCaption

(

string

$a_caption

)

Definition at line 631 of file class.ilMediaItem.php.

Referenced by read().

                                                 : void
    {
        $this->caption = $a_caption;
    }

Here is the caller graph for this function:

setDuration()

ilMediaItem::setDuration

(

int

$a_val

)

Definition at line 168 of file class.ilMediaItem.php.

Referenced by determineDuration(), and read().

                                           : void
    {
        $this->duration = $a_val;
    }

Here is the caller graph for this function:

setFormat()

ilMediaItem::setFormat

(

string

$a_format

)

Definition at line 541 of file class.ilMediaItem.php.

Referenced by read(), and ilObjMediaCastGUI\updateMediaItem().

                                               : void
    {
        $this->format = $a_format;
    }

Here is the caller graph for this function:

setHAlign()

ilMediaItem::setHAlign

(

string

$a_halign

)

set horizontal align

Definition at line 644 of file class.ilMediaItem.php.

Referenced by read(), and ilObjMediaCastGUI\updateMediaItem().

                                               : void
    {
        $this->halign = $a_halign;
    }

Here is the caller graph for this function:

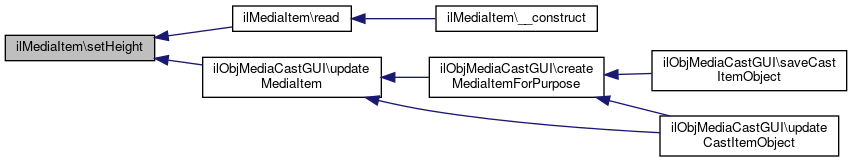

setHeight()

ilMediaItem::setHeight

(

string

$a_height

)

Definition at line 606 of file class.ilMediaItem.php.

Referenced by read(), and ilObjMediaCastGUI\updateMediaItem().

                                               : void
    {
        $this->height = $a_height;
    }

Here is the caller graph for this function:

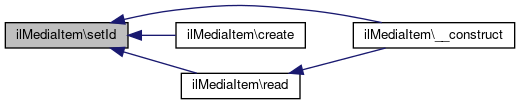

setId()

ilMediaItem::setId

(

int

$a_id

)

set media item id

Definition at line 76 of file class.ilMediaItem.php.

Referenced by __construct(), create(), and read().

                                    : void
    {
        $this->id = $a_id;
    }

Here is the caller graph for this function:

setLocation()

ilMediaItem::setLocation

(

string

$a_location

)

Definition at line 521 of file class.ilMediaItem.php.

Referenced by read(), and ilObjMediaCastGUI\updateMediaItem().

                                                   : void
    {
        $this->location = $a_location;
    }

Here is the caller graph for this function:

setLocationType()

ilMediaItem::setLocationType

(

string

$a_type

)

Definition at line 531 of file class.ilMediaItem.php.

Referenced by read(), and ilObjMediaCastGUI\updateMediaItem().

                                                   : void
    {
        $this->location_type = $a_type;
    }

Here is the caller graph for this function:

setMobId()

ilMediaItem::setMobId

(

int

$a_mob_id

)

set id of parent media object

Definition at line 89 of file class.ilMediaItem.php.

Referenced by read().

                                           : void
    {
        $this->mob_id = $a_mob_id;
    }

Here is the caller graph for this function:

setNr()

ilMediaItem::setNr

(

int

$a_nr

)

set number of media item within media object

Definition at line 102 of file class.ilMediaItem.php.

Referenced by read().

                                    : void
    {
        $this->nr = $a_nr;
    }

Here is the caller graph for this function:

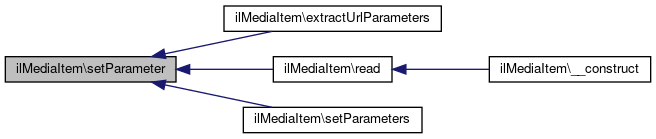

setParameter()

ilMediaItem::setParameter	(	string	$a_name,
		string	$a_value
	)

Definition at line 654 of file class.ilMediaItem.php.

Referenced by extractUrlParameters(), read(), and setParameters().

     : void {
        if (self::checkParameter($a_name, $a_value)) {
            $this->parameters[$a_name] = $a_value;
        }
    }

Here is the caller graph for this function:

setParameters()

ilMediaItem::setParameters

(

string

$a_par

)

set all parameters via parameter string (format: par1="value1", par2="value2", ...)

Definition at line 671 of file class.ilMediaItem.php.

References ilUtil\extractParameterString(), resetParameters(), and setParameter().

                                                : void
    {
        $this->resetParameters();
        $par_arr = ilUtil::extractParameterString($a_par);
        if (is_array($par_arr)) {
            foreach ($par_arr as $par => $val) {
                $this->setParameter($par, $val);
            }
        }
    }

Here is the call graph for this function:

setPurpose()

ilMediaItem::setPurpose

(

string

$a_purpose

)

Definition at line 511 of file class.ilMediaItem.php.

Referenced by read().

                                                 : void
    {
        $this->purpose = $a_purpose;
    }

Here is the caller graph for this function:

setTextRepresentation()

ilMediaItem::setTextRepresentation

(

string

$a_val

)

Definition at line 178 of file class.ilMediaItem.php.

Referenced by read().

                                                        : void
    {
        $this->text_representation = $a_val;
    }

Here is the caller graph for this function:

setThumbTried()

ilMediaItem::setThumbTried

(

string

$a_tried

)

Definition at line 551 of file class.ilMediaItem.php.

Referenced by read().

                                                  : void
    {
        $this->tried_thumb = $a_tried;
    }

Here is the caller graph for this function:

setUploadHash()

ilMediaItem::setUploadHash

(

string

$a_val

)

Definition at line 188 of file class.ilMediaItem.php.

Referenced by read().

                                                : void
    {
        $this->upload_hash = $a_val;
    }

Here is the caller graph for this function:

setWidth()

ilMediaItem::setWidth

(

string

$a_width

)

Definition at line 596 of file class.ilMediaItem.php.

Referenced by read().

                                             : void
    {
        $this->width = $a_width;
    }

Here is the caller graph for this function:

update()

ilMediaItem::update

(

)

Definition at line 246 of file class.ilMediaItem.php.

References $db, $ilDB, $params, getCaption(), getDuration(), getFormat(), getHAlign(), getHeight(), getId(), getLocation(), getLocationType(), getMobId(), getNr(), getParameters(), getPurpose(), getTextRepresentation(), getUploadHash(), and getWidth().

                            : void
    {
        $ilDB = $this->db;

        $query = "UPDATE media_item SET " .
            " mob_id = " . $ilDB->quote($this->getMobId(), "integer") . "," .
            " purpose = " . $ilDB->quote($this->getPurpose(), "text") . "," .
            " location = " . $ilDB->quote($this->getLocation(), "text") . "," .
            " location_type = " . $ilDB->quote($this->getLocationType(), "text") . "," .
            " format = " . $ilDB->quote($this->getFormat(), "text") . "," .
            " width = " . $ilDB->quote($this->getWidth(), "text") . "," .
            " height = " . $ilDB->quote($this->getHeight(), "text") . "," .
            " halign = " . $ilDB->quote($this->getHAlign(), "text") . "," .
            " caption = " . $ilDB->quote($this->getCaption(), "text") . "," .
            " nr = " . $ilDB->quote($this->getNr(), "integer") . "," .
            " text_representation = " . $ilDB->quote($this->getTextRepresentation(), "text") . "," .
            " upload_hash = " . $ilDB->quote($this->getUploadHash(), "text") . "," .
            " duration = " . $ilDB->quote($this->getDuration(), "integer") .
            " WHERE id = " . $ilDB->quote($this->getId(), "integer");
        $ilDB->manipulate($query);

        // delete mob parameters
        $query = "DELETE FROM mob_parameter WHERE med_item_id = " .
            $ilDB->quote($this->getId(), "integer");
        $ilDB->manipulate($query);

        // create mob parameters
        $params = $this->getParameters();
        foreach ($params as $name => $value) {
            $query = "INSERT INTO mob_parameter (med_item_id, name, value) VALUES " .
                "(" . $ilDB->quote($this->getId(), "integer") . "," .
                $ilDB->quote($name, "text") . "," .
                $ilDB->quote($value, "text") . ")";
            $ilDB->manipulate($query);
        }
    }

Here is the call graph for this function:

writeParameter()

ilMediaItem::writeParameter	(	string	$a_name,
		string	$a_value
	)

Definition at line 283 of file class.ilMediaItem.php.

References $db, $ilDB, and getId().

     : void {
        $ilDB = $this->db;

        $query = "INSERT INTO mob_parameter (med_item_id, name, value) VALUES " .
            "(" . $ilDB->quote($this->getId(), "integer") . "," .
            $ilDB->quote($a_name, "text") . "," .
            $ilDB->quote($a_value, "text") . ")";
        $ilDB->manipulate($query);
    }

Here is the call graph for this function:

writeThumbTried()

ilMediaItem::writeThumbTried

(

string

$a_tried

)

write thumbnail creation try data ("y"/"n")

Definition at line 355 of file class.ilMediaItem.php.

References $db, $ilDB, $q, and getId().

Referenced by getThumbnailTarget().

                                                    : void
    {
        $ilDB = $this->db;

        $q = "UPDATE media_item SET tried_thumb = " .
            $ilDB->quote($a_tried, "text") .
            " WHERE id = " . $ilDB->quote($this->getId(), "integer");

        $ilDB->manipulate($q);
    }

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

$caption

string ilMediaItem::$caption = ""

Definition at line 39 of file class.ilMediaItem.php.

Referenced by getCaption().

$color1

int ilMediaItem::$color1

Definition at line 50 of file class.ilMediaItem.php.

$color2

int ilMediaItem::$color2

Definition at line 51 of file class.ilMediaItem.php.

$db

ilDBInterface ilMediaItem::$db

protected

Definition at line 28 of file class.ilMediaItem.php.

Referenced by create(), read(), update(), writeParameter(), and writeThumbTried().

$duration

int ilMediaItem::$duration = 0

protected

Definition at line 52 of file class.ilMediaItem.php.

Referenced by getDuration().

$format

string ilMediaItem::$format = ""

Definition at line 36 of file class.ilMediaItem.php.

Referenced by getFormat(), and getThumbnailTarget().

$halign

string ilMediaItem::$halign = ""

Definition at line 40 of file class.ilMediaItem.php.

Referenced by getHAlign().

$height

string ilMediaItem::$height = ""

Definition at line 38 of file class.ilMediaItem.php.

Referenced by getHeight().

$id

int ilMediaItem::$id = 0

Definition at line 32 of file class.ilMediaItem.php.

Referenced by getId().

$image_converter

ILIAS Filesystem Util Convert LegacyImages ilMediaItem::$image_converter

protected

Definition at line 30 of file class.ilMediaItem.php.

$lng

ilLanguage ilMediaItem::$lng

protected

Definition at line 29 of file class.ilMediaItem.php.

Referenced by copyOriginal(), and makeMapWorkCopy().

$location

string ilMediaItem::$location = ""

Definition at line 34 of file class.ilMediaItem.php.

Referenced by getLocation().

$location_type

string ilMediaItem::$location_type = ""

Definition at line 35 of file class.ilMediaItem.php.

Referenced by getLocationType().

$map_cnt

int ilMediaItem::$map_cnt = 0

Definition at line 45 of file class.ilMediaItem.php.

Referenced by addMapArea(), and deleteMapArea().

$map_image

ilMediaItem::$map_image = null

Definition at line 49 of file class.ilMediaItem.php.

Referenced by getMapWorkImage().

$mapareas

array ilMediaItem::$mapareas = []

Definition at line 44 of file class.ilMediaItem.php.

Referenced by getMapAreas().

$mob_id

int ilMediaItem::$mob_id = 0

Definition at line 42 of file class.ilMediaItem.php.

Referenced by getMobId().

$nr

int ilMediaItem::$nr = 0

Definition at line 43 of file class.ilMediaItem.php.

Referenced by getNr().

$parameters

array ilMediaItem::$parameters = []

Definition at line 41 of file class.ilMediaItem.php.

Referenced by getParameters().

$purpose

string ilMediaItem::$purpose = ""

Definition at line 33 of file class.ilMediaItem.php.

Referenced by getPurpose().

$text_representation

string ilMediaItem::$text_representation = ""

protected

Definition at line 27 of file class.ilMediaItem.php.

Referenced by getTextRepresentation().

$tried_thumb

string ilMediaItem::$tried_thumb = ""

protected

Definition at line 26 of file class.ilMediaItem.php.

Referenced by getThumbTried().

$upload_hash

string ilMediaItem::$upload_hash = ''

protected

Definition at line 53 of file class.ilMediaItem.php.

Referenced by getUploadHash().

$width

string ilMediaItem::$width = ""

Definition at line 37 of file class.ilMediaItem.php.

Referenced by getWidth().

---

The documentation for this class was generated from the following file:

• Services/MediaObjects/classes/class.ilMediaItem.php
