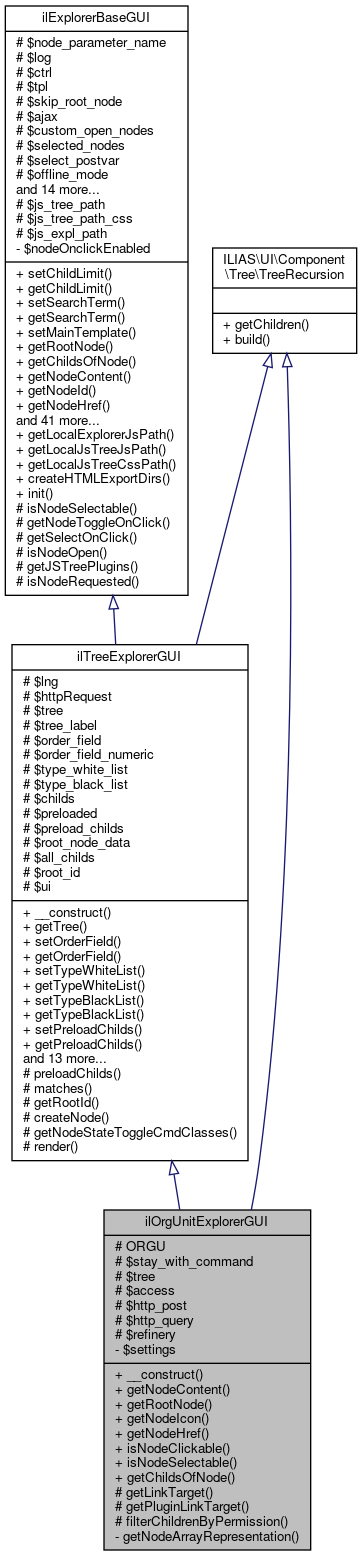

Inheritance diagram for ilOrgUnitExplorerGUI:

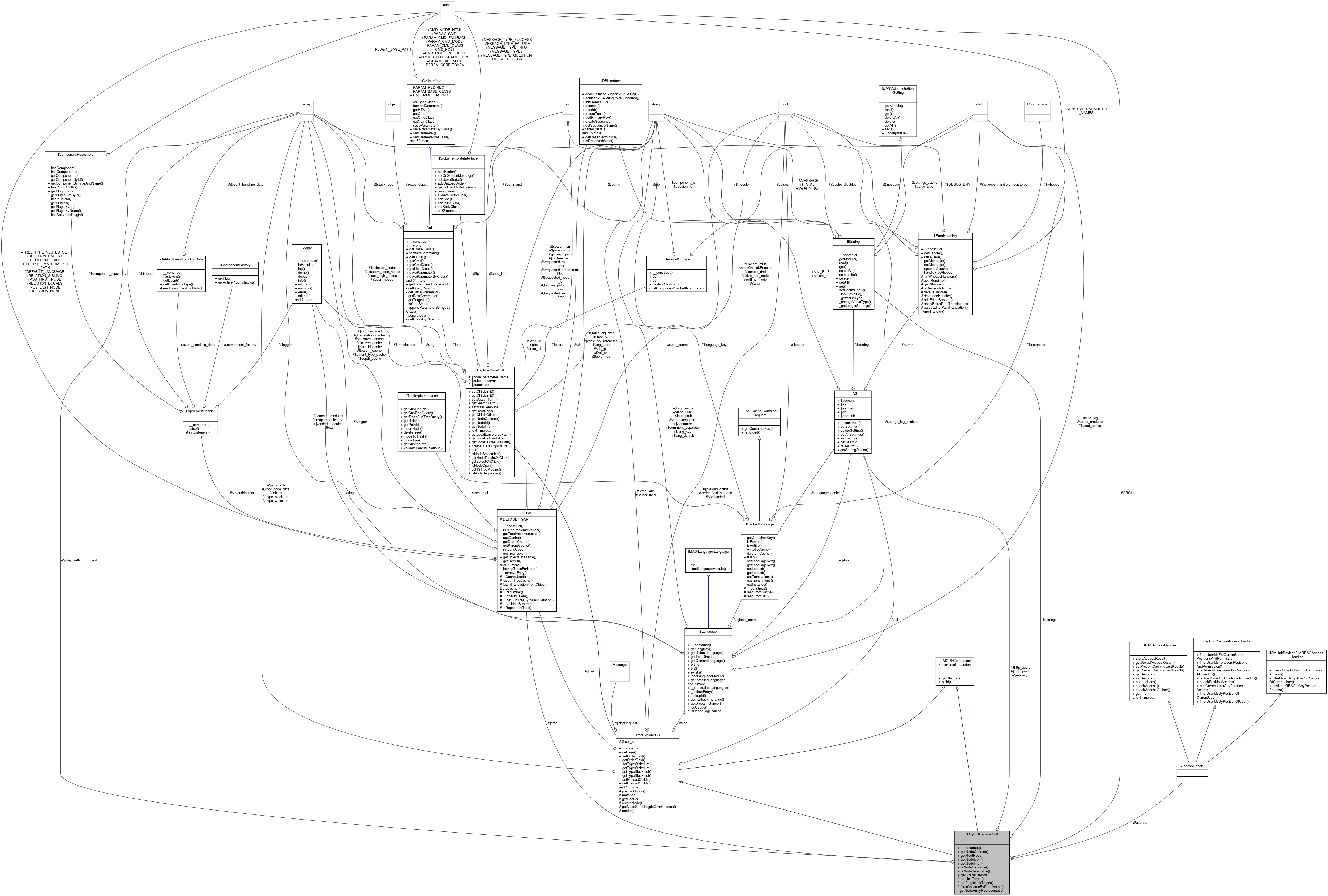

Collaboration diagram for ilOrgUnitExplorerGUI:

Public Member Functions
	__construct ($a_expl_id, $a_parent_obj, $a_parent_cmd, $a_tree, \ilAccessHandler $access=null)

	getNodeContent ($a_node)
	Get content of a node. More...

	getRootNode ()

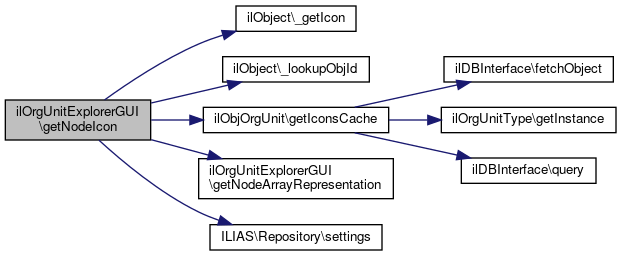

	getNodeIcon ($a_node)
	Get node icon. More...

	getNodeHref ($a_node)

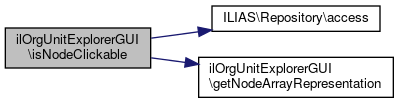

	isNodeClickable ($a_node)

	isNodeSelectable ($a_node)

	getChildsOfNode ($a_parent_node_id)

Public Member Functions inherited from ilTreeExplorerGUI
	__construct (string $a_expl_id, $a_parent_obj, string $a_parent_cmd, ilTree $a_tree, string $a_node_parameter_name="node_id")

	getTree ()

	setOrderField (string $a_val, bool $a_numeric=false)

	getOrderField ()

	setTypeWhiteList (array $a_val)
	Set type white list. More...

	getTypeWhiteList ()
	Get type white list. More...

	setTypeBlackList (array $a_val)
	Set type black list. More...

	getTypeBlackList ()
	Get type black list. More...

	setPreloadChilds (bool $a_val)

	getPreloadChilds ()

	getSuccessorNode ( $a_node_id, string $a_type="")
	Get successor node (currently only(!) based on lft/rgt tree values) More...

	getChildsOfNode ($a_parent_node_id)
	Get childs of node. More...

	getNodeId ($a_node)
	Get id for node. More...

	getNodeIconAlt ($a_node)
	Get node icon alt attribute. More...

	getRootNode ()
	Get root node. More...

	setRootId ($a_root)

	setPathOpen ($a_id)
	Set node path to be opened. More...

	getHTML ($new=false)
	Get HTML. More...

	getChildren ($record, $environment=null)
	Get a list of records (that list can also be empty). More...

	build (\ILIAS\UI\Component\Tree\Node\Factory $factory, $record, $environment=null)

	getTreeLabel ()

	getTreeComponent ()

	toggleExplorerNodeState ()
	Should be called by an ilCtrl-enabled command class if a tree node toggle action should be processed. More...

Public Member Functions inherited from ilExplorerBaseGUI
	setChildLimit (int $a_val)

	getChildLimit ()

	setSearchTerm (string $a_val)

	getSearchTerm ()

	setMainTemplate (ilGlobalTemplateInterface $a_main_tpl=null)

	getRootNode ()
	Get root node. More...

	getChildsOfNode ($a_parent_node_id)
	Get children of node. More...

	getNodeContent ($a_node)
	Get content of a node. More...

	getNodeId ($a_node)
	Get id of a node. More...

	getNodeHref ($a_node)
	Get href for node. More...

	nodeHasVisibleChilds ($a_node)
	Node has children Please note that this standard method may not be optimal depending on what a derived class does in isNodeVisible. More...

	sortChilds (array $a_childs, $a_parent_node_id)
	Sort childs. More...

	getNodeIcon ($a_node)
	Get node icon path. More...

	getNodeIconAlt ($a_node)
	Get node icon alt attribute. More...

	getNodeTarget ($a_node)
	Get node target (frame) attribute. More...

	getNodeOnClick ($a_node)
	Get node onclick attribute. More...

	isNodeVisible ($a_node)
	Is node visible? More...

	isNodeHighlighted ($a_node)
	Is node highlighted? More...

	isNodeClickable ($a_node)
	Is node clickable? More...

	getId ()
	Get id of explorer element. More...

	setSkipRootNode (bool $a_val)

	getSkipRootNode ()

	setAjax (bool $a_val)

	getAjax ()

	setSecondaryHighlightedNodes (array $a_val)
	Set secondary (background) highlighted nodes. More...

	getSecondaryHighlightedNodes ()
	Get secondary (background) highlighted nodes. More...

	setNodeOpen ($a_id)
	Set node to be opened (additional custom opened node, not standard expand behaviour) More...

	setSelectMode (string $a_postvar, bool $a_multi=false)
	Set select mode (to deactivate, pass an empty string as postvar) More...

	setNodeSelected ($a_id)
	Set node to be opened (additional custom opened node, not standard expand behaviour) More...

	setOfflineMode (bool $a_val)

	getOfflineMode ()

	handleCommand ()
	Handle explorer internal command. More...

	getContainerId ()

	openNode ()
	Open node. More...

	closeNode ()
	Close node. More...

	getNodeAsync ()
	Get node asynchronously. More...

	beforeRendering ()
	Before rendering. More...

	getOnLoadCode ()
	Get on load code. More...

	getHTML ()

	renderNode ($a_node, ilTemplate $tpl)
	Render node. More...

	renderChilds ($a_node_id, ilTemplate $tpl)
	Render childs. More...

	getDomNodeIdForNodeId ($a_node_id)
	Get DOM node id for node id. More...

	getNodeIdForDomNodeId (string $a_dom_node_id)
	Get node id for dom node id. More...

	listItemStart (ilTemplate $tpl, $a_node)
	List item start. More...

	listItemEnd (ilTemplate $tpl)

	listStart (ilTemplate $tpl)

	listEnd (ilTemplate $tpl)

	isNodeOnclickEnabled ()

	setNodeOnclickEnabled (bool $nodeOnclickEnabled)

	isEnableDnd ()

	setEnableDnd (bool $enable_dnd)

Public Member Functions inherited from ILIAS\UI\Component\Tree\TreeRecursion
	build (Node\Factory $factory, $record, $environment=null)
	Build and return a Node. More...

Protected Member Functions
	getLinkTarget ()

	getPluginLinkTarget ()

	filterChildrenByPermission (array $children)

Protected Member Functions inherited from ilTreeExplorerGUI
	preloadChilds ()

	matches ($node)
	Does a node match a search term (or is search term empty) More...

	getRootId ()

	createNode (\ILIAS\UI\Component\Tree\Node\Factory $factory, $record)
	Creates at tree node, can be overwritten in derivatives if another node type should be used. More...

	getNodeStateToggleCmdClasses ($record)
	Should return an array of ilCtrl-enabled command classes which should be used to build the URL for the expand/collapse actions applied on a tree node. More...

	render ()

Protected Member Functions inherited from ilExplorerBaseGUI
	isNodeSelectable ($a_node)
	Is node selectable? More...

	getNodeToggleOnClick ($a_node)
	Get onclick attribute for node toggling. More...

	getSelectOnClick ($a_node)
	Get onclick attribute for selecting radio/checkbox. More...

	isNodeOpen ($node_id)
	Get all open nodes. More...

	getJSTreePlugins ()

	isNodeRequested (string $a_node_id)

Protected Attributes
const	ORGU = "orgu"

array	$stay_with_command = array('', 'render', 'view', 'infoScreen', 'showStaff', 'performPaste', 'cut')

ilTree	$tree = null

ilAccessHandler	$access

ILIAS HTTP Wrapper RequestWrapper	$http_post

ILIAS HTTP Wrapper RequestWrapper	$http_query

ILIAS Refinery Factory	$refinery

Protected Attributes inherited from ilTreeExplorerGUI
ilLanguage	$lng

Psr Http Message ServerRequestInterface	$httpRequest

ilTree	$tree = null

string	$tree_label = ""

string	$order_field = ""

bool	$order_field_numeric = false

array	$type_white_list = array()

array	$type_black_list = array()

array	$childs = array()

bool	$preloaded = false

bool	$preload_childs = false

array	$root_node_data = null

array	$all_childs = array()

	$root_id = 0

ILIAS DI UIServices	$ui

Protected Attributes inherited from ilExplorerBaseGUI
string	$node_parameter_name

ilLogger	$log

ilCtrl	$ctrl

ilGlobalTemplateInterface	$tpl

bool	$skip_root_node = false

bool	$ajax = false

array	$custom_open_nodes = array()

array	$selected_nodes = array()

string	$select_postvar = ""

bool	$offline_mode = false

array	$sec_highl_nodes = array()

bool	$enable_dnd = false

string	$search_term = ""

array	$open_nodes = []

ilSessionIStorage	$store

bool	$select_multi = false

	$parent_obj

int	$child_limit = 0

string	$parent_cmd = ''

string	$requested_exp_cmd = ""

string	$requested_exp_cont = ""

string	$requested_searchterm = ""

string	$requested_node_id = ""

string	$id

Private Member Functions
	getNodeArrayRepresentation ($a_node)

Private Attributes
ilSetting	$settings

Additional Inherited Members
Static Public Member Functions inherited from ilExplorerBaseGUI
static	getLocalExplorerJsPath ()

static	getLocalJsTreeJsPath ()

static	getLocalJsTreeCssPath ()

static	createHTMLExportDirs (string $a_target_dir)

static	init (ilGlobalTemplateInterface $a_main_tpl=null)

Static Protected Attributes inherited from ilExplorerBaseGUI
static string	$js_tree_path = "./node_modules/jstree/dist/jstree.js"

static string	$js_tree_path_css = "./node_modules/jstree/dist/themes/default/style.min.css"

static string	$js_expl_path = "assets/js/Explorer2.js"

Detailed Description

Class ilOrgUnitExplorerGUI.

Author: : Oskar Truffer ot@st.nosp@m.uder.nosp@m.-raim.nosp@m.ann..nosp@m.ch; : Martin Studer ms@st.nosp@m.uder.nosp@m.-raim.nosp@m.ann..nosp@m.ch

Definition at line 28 of file class.ilOrgUnitExplorerGUI.php.

Constructor & Destructor Documentation

◆ __construct()

ilOrgUnitExplorerGUI::__construct	(		$a_expl_id,
			$a_parent_obj,
			$a_parent_cmd,
			$a_tree,
		\ilAccessHandler	$access = `null`
	)

Parameters

$a_expl_id
$a_parent_obj
$a_parent_cmd
$a_tree
$access

Definition at line 46 of file class.ilOrgUnitExplorerGUI.php.

References $DIC, ILIAS\GlobalScreen\Provider\__construct(), ILIAS\Repository\access(), ILIAS\Repository\refinery(), ilExplorerBaseGUI\setAjax(), ILIAS\Repository\settings(), and ilTreeExplorerGUI\setTypeWhiteList().

     {
         global $DIC;
         parent::__construct($a_expl_id, $a_parent_obj, $a_parent_cmd, $a_tree);
         $this->setAjax(true);
         $this->setTypeWhiteList(array(self::ORGU));
         $this->tree->initLangCode();
         $this->access = $DIC->access();
         $this->settings = $DIC->settings();
         $this->http_post = $DIC->http()->wrapper()->post();
         $this->http_query = $DIC->http()->wrapper()->query();
         $this->refinery = $DIC["refinery"];
     }

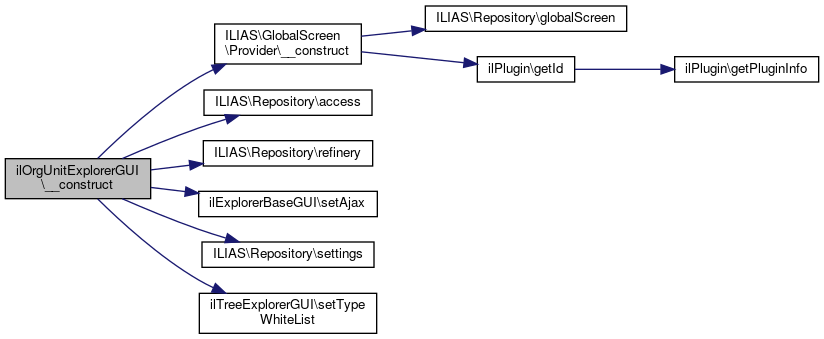

Here is the call graph for this function:

Member Function Documentation

◆ filterChildrenByPermission()

ilOrgUnitExplorerGUI::filterChildrenByPermission ( array $children )

protected

Definition at line 231 of file class.ilOrgUnitExplorerGUI.php.

References ILIAS\Repository\access().

Referenced by getChildsOfNode().

                                                                   : array
     {
         return array_filter(
             $children,
             function ($child) {
                 return $this->access->checkAccess("visible", "", $child["ref_id"]);
             }
         );
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getChildsOfNode()

ilOrgUnitExplorerGUI::getChildsOfNode ( $a_parent_node_id )

Definition at line 225 of file class.ilOrgUnitExplorerGUI.php.

References filterChildrenByPermission().

                                                       : array
     {
         $children = parent::getChildsOfNode($a_parent_node_id);
         return $this->filterChildrenByPermission($children);
     }

Here is the call graph for this function:

◆ getLinkTarget()

ilOrgUnitExplorerGUI::getLinkTarget ( )

protected

Definition at line 132 of file class.ilOrgUnitExplorerGUI.php.

References $stay_with_command, and ILIAS\Repository\ctrl().

Referenced by getNodeHref().

                                       : string
     {
         if ($this->ctrl->getCmdClass() === strtolower(ilObjOrgUnitGUI::class) && in_array(
             $this->ctrl->getCmd(),
             $this->stay_with_command,
             true
         )) {
             return $this->ctrl->getLinkTargetByClass(
                 array(ilAdministrationGUI::class, $this->ctrl->getCmdClass()),
                 $this->ctrl->getCmd()
             );
         }

         return $this->ctrl->getLinkTargetByClass(array(ilAdministrationGUI::class, ilObjOrgUnitGUI::class), 'view');
     }

Here is the call graph for this function:

Here is the caller graph for this function:

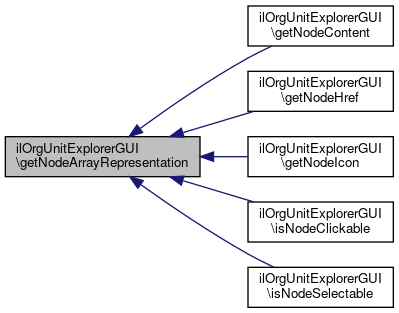

◆ getNodeArrayRepresentation()

ilOrgUnitExplorerGUI::getNodeArrayRepresentation ( $a_node )

private

Parameters

$a_node

Returns: array

Definition at line 216 of file class.ilOrgUnitExplorerGUI.php.

Referenced by getNodeContent(), getNodeHref(), getNodeIcon(), isNodeClickable(), and isNodeSelectable().

                                                         : array
     {
         if (is_object($a_node)) {
             return (array) $a_node;
         }

         return $a_node;
     }

Here is the caller graph for this function:

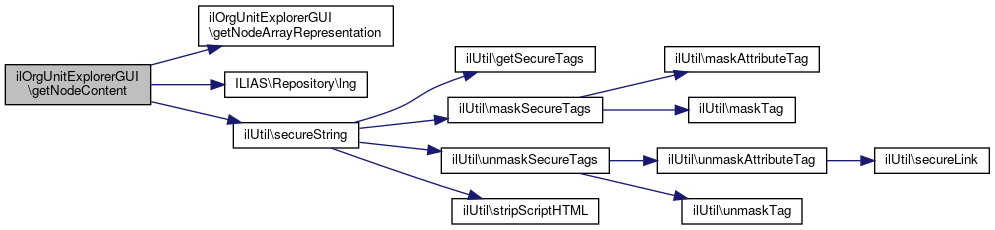

◆ getNodeContent()

ilOrgUnitExplorerGUI::getNodeContent ( $a_node )

Get content of a node.

Parameters

object | array $a_node node array or object

Returns: string content of the node

Definition at line 65 of file class.ilOrgUnitExplorerGUI.php.

References $_GET, getNodeArrayRepresentation(), ILIAS\Repository\lng(), and ilUtil\secureString().

                                            : string
     {
         $node = $this->getNodeArrayRepresentation($a_node);

         if ($node['title'] === '__OrgUnitAdministration') {
             $node['title'] = $this->lng->txt('objs_orgu');
         }
         if ((int) $node['child'] === (int) $_GET['ref_id']) {
             return "<span class='ilExp2NodeContent ilHighlighted'>" . $node['title'] . '</span>';
         }

         return ilUtil::secureString($node['title']);
     }

Here is the call graph for this function:

◆ getNodeHref()

ilOrgUnitExplorerGUI::getNodeHref ( $a_node )

Parameters

array | object $a_node

Exceptions

ilCtrlException

Definition at line 110 of file class.ilOrgUnitExplorerGUI.php.

References ILIAS\Repository\ctrl(), getLinkTarget(), getNodeArrayRepresentation(), and getPluginLinkTarget().

                                         : string
     {
         $node = $this->getNodeArrayRepresentation($a_node);

         if ($this->select_postvar) {
             return '#';
         }

         if ($this->ctrl->getCmd() === 'performPaste') {
             $this->ctrl->setParameterByClass(ilObjOrgUnitGUI::class, 'target_node', $node['child']);
         }
         $array = $this->ctrl->getParameterArrayByClass(ilObjOrgUnitGUI::class);
         $temp = $array['ref_id'];

         $this->ctrl->setParameterByClass(ilObjOrgUnitGUI::class, 'ref_id', $node['child']);
         $this->ctrl->setParameterByClass(ilObjPluginDispatchGUI::class, 'ref_id', $node['child']);

         $link_target = ($node['type'] === self::ORGU) ? $this->getLinkTarget() : $this->getPluginLinkTarget();
         $this->ctrl->setParameterByClass(ilObjOrgUnitGUI::class, 'ref_id', $temp);
         return $link_target;
     }

Here is the call graph for this function:

◆ getNodeIcon()

ilOrgUnitExplorerGUI::getNodeIcon ( $a_node )

Get node icon.

Parameters

array | object $a_node Return custom icon of OrgUnit type if existing

Returns: string

Definition at line 90 of file class.ilOrgUnitExplorerGUI.php.

References ilObject\_getIcon(), ilObject\_lookupObjId(), ilObjOrgUnit\getIconsCache(), getNodeArrayRepresentation(), and ILIAS\Repository\settings().

                                         : string
     {
         $node = $this->getNodeArrayRepresentation($a_node);

         $obj_id = 0;
         if ($this->settings->get('custom_icons')) {
             $icons_cache = ilObjOrgUnit::getIconsCache();
             $obj_id = ilObject::_lookupObjId($node["child"]);
             if (isset($icons_cache[$obj_id])) {
                 return $icons_cache[$obj_id];
             }
         }

         return ilObject::_getIcon($obj_id, "tiny", $node["type"]);
     }

Here is the call graph for this function:

◆ getPluginLinkTarget()

ilOrgUnitExplorerGUI::getPluginLinkTarget ( )

protected

Exceptions

ilCtrlException

Definition at line 151 of file class.ilOrgUnitExplorerGUI.php.

References ILIAS\Repository\ctrl().

Referenced by getNodeHref().

                                             : string
     {
         return $this->ctrl->getLinkTargetByClass(ilObjPluginDispatchGUI::class, 'forward');
     }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getRootNode()

ilOrgUnitExplorerGUI::getRootNode ( )

Definition at line 79 of file class.ilOrgUnitExplorerGUI.php.

References ilObjOrgUnit\getRootOrgRefId(), and ilTreeExplorerGUI\getTree().

                                  : array
     {
         return $this->getTree()->getNodeData(ilObjOrgUnit::getRootOrgRefId());
     }

Here is the call graph for this function:

◆ isNodeClickable()

ilOrgUnitExplorerGUI::isNodeClickable ( $a_node )

Parameters

object | array $a_node

Returns: bool

Definition at line 160 of file class.ilOrgUnitExplorerGUI.php.

References ILIAS\Repository\access(), and getNodeArrayRepresentation().

                                             : bool
     {
         $node = $this->getNodeArrayRepresentation($a_node);

         $node = $this->getNodeArrayRepresentation($a_node);

         if ($this->access->checkAccess('read', '', $node['ref_id'])) {
             return true;
         }

         return false;
     }

Here is the call graph for this function:

◆ isNodeSelectable()

ilOrgUnitExplorerGUI::isNodeSelectable ( $a_node )

Parameters

$a_node

Returns: bool

Definition at line 178 of file class.ilOrgUnitExplorerGUI.php.

References $r, $refinery, ilExplorerBaseGUI\$selected_nodes, and getNodeArrayRepresentation().

                                              : bool
     {
         $r = $this->refinery;
         if ($this->http_post->has("id")) {
             // Node selected via multiselect in "manage".
             $selected_nodes = $this->http_post->retrieve(
                 "id",
                 $r->kindlyTo()->listOf($r->kindlyTo()->int()),
             );
         } elseif ($this->http_query->has("item_ref_id")) {
             // Node selected via "move"-action.
             $selected_nodes = $this->http_query->retrieve(
                 "item_ref_id",
                 $r->kindlyTo()->listOf($r->kindlyTo()->int()),
             );
         } else {
             // No node selected.
             return true;
         }

         $node = $this->getNodeArrayRepresentation($a_node);
         foreach ($selected_nodes as $sn) {
             // Can't insert into itself.
             if ($node["child"] == $sn) {
                 return false;
             }
             // Can't insert below itself.
             if ($this->tree->isGrandChild($sn, $node["child"])) {
                 return false;
             }
         }
         return true;
     }
