This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V. More...

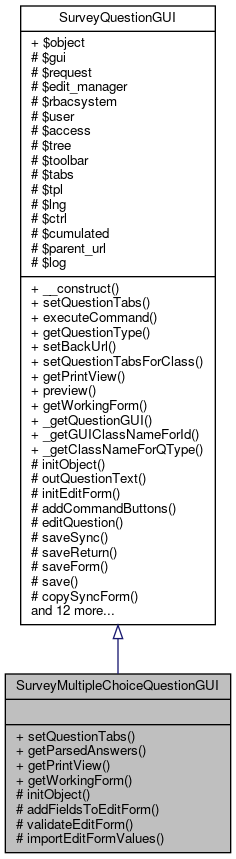

Inheritance diagram for SurveyMultipleChoiceQuestionGUI:

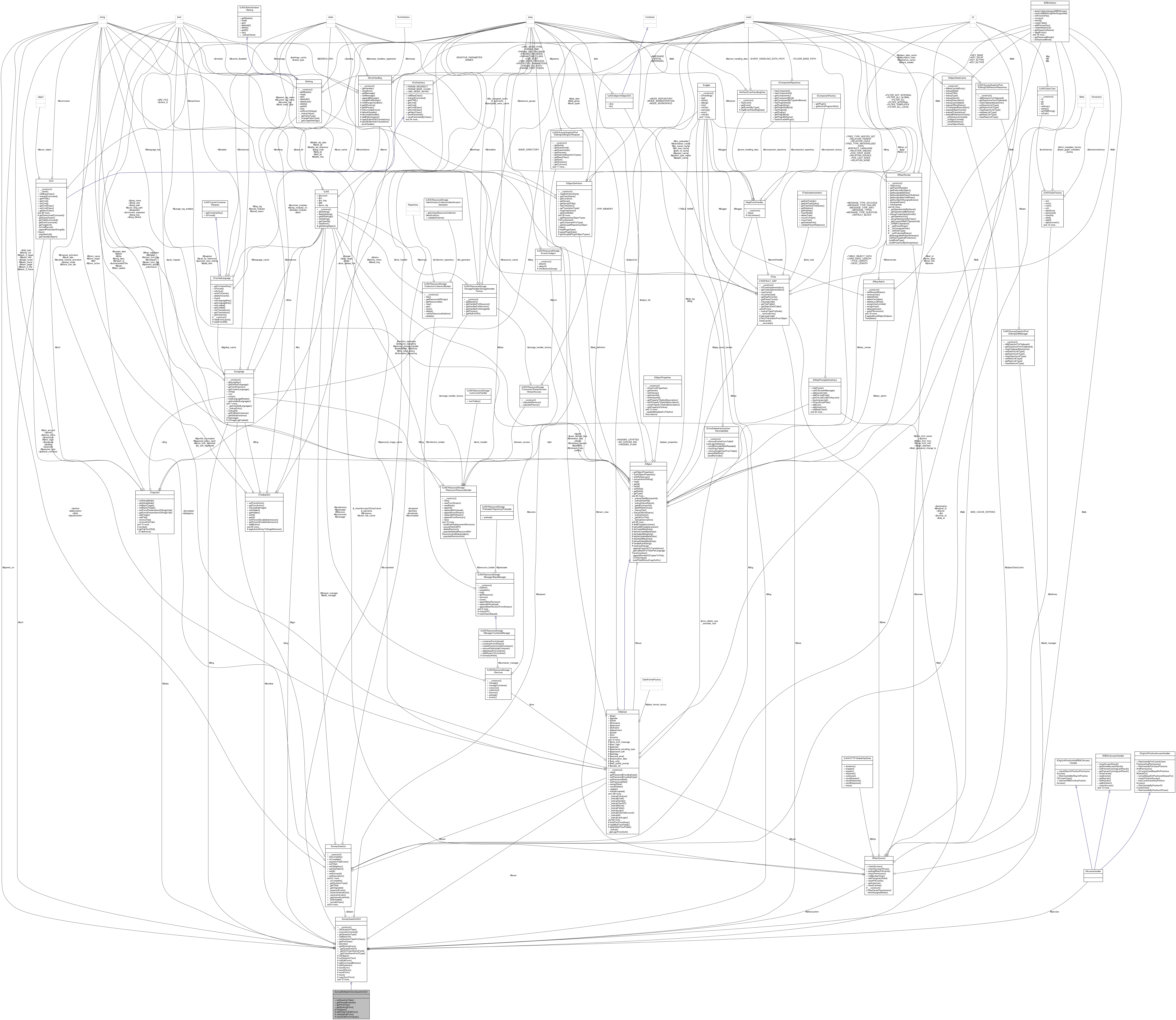

Collaboration diagram for SurveyMultipleChoiceQuestionGUI:

Public Member Functions
	setQuestionTabs ()

	getParsedAnswers (array $a_working_data=null, $a_only_user_anwers=false)

	getPrintView (int $question_title=1, bool $show_questiontext=true, ?int $survey_id=null, ?array $working_data=null)

	getWorkingForm (array $working_data=null, int $question_title=1, bool $show_questiontext=true, string $error_message="", int $survey_id=null, bool $compress_view=false)
	Creates the question output form for the learner. More...

Public Member Functions inherited from SurveyQuestionGUI
	__construct ($a_id=-1)

	setQuestionTabs ()

	executeCommand ()

	getQuestionType ()
	Returns the question type string. More...

	setBackUrl (string $a_url)

	setQuestionTabsForClass (string $guiclass)

	getPrintView (int $question_title=1, bool $show_questiontext=true, ?int $survey_id=null, ?array $working_data=null)

	preview ()

	getWorkingForm (array $working_data=null, int $question_title=1, bool $show_questiontext=true, string $error_message="", int $survey_id=null, bool $compress_view=false)

Protected Member Functions
	initObject ()

	addFieldsToEditForm (ilPropertyFormGUI $a_form)

	validateEditForm (ilPropertyFormGUI $a_form)

	importEditFormValues (ilPropertyFormGUI $a_form)

Protected Member Functions inherited from SurveyQuestionGUI
	initObject ()

	outQuestionText (ilTemplate $template)

	initEditForm ()

	addCommandButtons (ilPropertyFormGUI $a_form)

	editQuestion (ilPropertyFormGUI $a_form=null)

	saveSync ()

	saveReturn ()

	saveForm ()

	save (bool $a_return=false, bool $a_sync=false)

	copySyncForm ()

	syncCopies ()

	originalSyncForm ()

	sync ()

	cancelSync ()

	redirectAfterSaving (bool $a_return=false)
	Redirect to calling survey or to edit form. More...

	cancel ()

	validateEditForm (ilPropertyFormGUI $a_form)

	addFieldsToEditForm (ilPropertyFormGUI $a_form)

	importEditFormValues (ilPropertyFormGUI $a_form)

	getPrintViewQuestionTitle (int $question_title=1)

	getQuestionTitle (int $question_title_mode=1)

	renderStatisticsDetailsTable (array $a_head, array $a_rows, array $a_foot=null)

Additional Inherited Members
Static Public Member Functions inherited from SurveyQuestionGUI
static	_getQuestionGUI (?string $questiontype, int $question_id=-1)
	Creates a question gui representation. More...

static	_getGUIClassNameForId (int $a_q_id)

static	_getClassNameForQType (string $q_type)

Data Fields inherited from SurveyQuestionGUI
SurveyQuestion	$object = null

Protected Attributes inherited from SurveyQuestionGUI
ILIAS Survey InternalGUIService	$gui

EditingGUIRequest	$request

EditManager	$edit_manager

ilRbacSystem	$rbacsystem

ilObjUser	$user

ilAccessHandler	$access

ilTree	$tree

ilToolbarGUI	$toolbar

ilTabsGUI	$tabs

ilGlobalTemplateInterface	$tpl

ilLanguage	$lng

ilCtrl	$ctrl

array	$cumulated = []

string	$parent_url = ""

ilLogger	$log

Detailed Description

This file is part of ILIAS, a powerful learning management system published by ILIAS open source e-Learning e.V.

ILIAS is licensed with the GPL-3.0, see https://www.gnu.org/licenses/gpl-3.0.en.html You should have received a copy of said license along with the source code, too.

If this is not the case or you just want to try ILIAS, you'll find us at: https://www.ilias.de https://github.com/ILIAS-eLearning MultipleChoice survey question GUI representation The SurveyMultipleChoiceQuestionGUI class encapsulates the GUI representation for multiple choice survey question types.

Author: Helmut Schottmüller helmu.nosp@m.t.sc.nosp@m.hottm.nosp@m.uell.nosp@m.er@ma.nosp@m.c.co.nosp@m.m

Definition at line 25 of file class.SurveyMultipleChoiceQuestionGUI.php.

Member Function Documentation

◆ addFieldsToEditForm()

SurveyMultipleChoiceQuestionGUI::addFieldsToEditForm ( ilPropertyFormGUI $a_form )

protected

Definition at line 41 of file class.SurveyMultipleChoiceQuestionGUI.php.

References ilPropertyFormGUI\addItem(), ILIAS\Repository\lng(), ILIAS\Repository\object(), and ilFormPropertyGUI\setRequired().

                                                                      : void
     {
         // orientation
         $orientation = new ilRadioGroupInputGUI($this->lng->txt("orientation"), "orientation");
         $orientation->setRequired(false);
         $orientation->addOption(new ilRadioOption($this->lng->txt('vertical'), 0));
         $orientation->addOption(new ilRadioOption($this->lng->txt('horizontal'), 1));
         $a_form->addItem($orientation);

         // minimum answers
         $minanswers = new ilCheckboxInputGUI($this->lng->txt("use_min_answers"), "use_min_answers");
         $minanswers->setValue(1);
         $minanswers->setOptionTitle($this->lng->txt("use_min_answers_option"));
         $minanswers->setRequired(false);

         $nranswers = new ilNumberInputGUI($this->lng->txt("nr_min_answers"), "nr_min_answers");
         $nranswers->setSize(5);
         $nranswers->setDecimals(0);
         $nranswers->setRequired(false);
         $nranswers->setMinValue(1);
         $minanswers->addSubItem($nranswers);

         $nrmaxanswers = new ilNumberInputGUI($this->lng->txt("nr_max_answers"), "nr_max_answers");
         $nrmaxanswers->setSize(5);
         $nrmaxanswers->setDecimals(0);
         $nrmaxanswers->setRequired(false);
         $nrmaxanswers->setMinValue(1);
         $minanswers->addSubItem($nrmaxanswers);

         $a_form->addItem($minanswers);

         // Answers
         $answers = new ilCategoryWizardInputGUI($this->lng->txt("answers"), "answers");
         $answers->setRequired(false);
         $answers->setAllowMove(true);
         $answers->setShowWizard(false);
         $answers->setUseOtherAnswer(true);
         $answers->setShowNeutralCategory(true);
         $answers->setNeutralCategoryTitle($this->lng->txt('svy_neutral_answer'));
         $answers->setDisabledScale(false);
         $a_form->addItem($answers);


         // values
         $orientation->setValue($this->object->getOrientation());
         $minanswers->setChecked((bool) $this->object->use_min_answers);
         $nranswers->setValue($this->object->nr_min_answers);
         $nrmaxanswers->setValue($this->object->nr_max_answers);
         if (!$this->object->getCategories()->getCategoryCount()) {
             $this->object->getCategories()->addCategory("");
         }
         $answers->setValues($this->object->getCategories());
     }

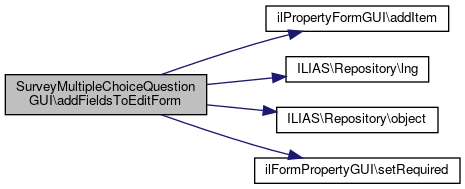

Here is the call graph for this function:

◆ getParsedAnswers()

SurveyMultipleChoiceQuestionGUI::getParsedAnswers	(	array	$a_working_data = `null`,
			$a_only_user_anwers = `false`
	)

Definition at line 156 of file class.SurveyMultipleChoiceQuestionGUI.php.

Referenced by getPrintView().

      : array {
         if (is_array($a_working_data)) {
             $user_answers = $a_working_data;
         }

         $options = array();
         for ($i = 0; $i < $this->object->categories->getCategoryCount(); $i++) {
             $cat = $this->object->categories->getCategory($i);
             $value = ($cat->scale) ? ($cat->scale - 1) : $i;

             $checked = "unchecked";
             $text = null;
             if (is_array($a_working_data)) {
                 foreach ($user_answers as $user_answer) {
                     if ($value == $user_answer["value"]) {
                         $checked = "checked";
                         if ($user_answer["textanswer"]) {
                             $text = $user_answer["textanswer"];
                         }
                         break;
                     }
                 }
             }

             // "other" options have to be last or horizontal will be screwed
             $idx = $cat->other . "_" . $value;

             if (!$a_only_user_anwers || $checked === "checked") {
                 $options[$idx] = array(
                 "value" => $value
                 ,"title" => trim($cat->title)
                 ,"other" => (bool) $cat->other
                 ,"checked" => $checked
                 ,"textanswer" => $text
             );
             }

             ksort($options);
         }

         return array_values($options);
     }

Here is the caller graph for this function:

◆ getPrintView()

SurveyMultipleChoiceQuestionGUI::getPrintView	(	int	$question_title = `1`,
		bool	$show_questiontext = `true`,
		?int	$survey_id = `null`,
		?array	$working_data = `null`
	)

Definition at line 202 of file class.SurveyMultipleChoiceQuestionGUI.php.

References ilUtil\getHtmlPath(), ilUtil\getImagePath(), getParsedAnswers(), SurveyQuestionGUI\getPrintViewQuestionTitle(), ILIAS\Repository\lng(), ILIAS\Repository\object(), SurveyQuestionGUI\outQuestionText(), and ilLegacyFormElementsUtil\prepareFormOutput().

      : string {
         $options = $this->getParsedAnswers($working_data);

         $template = new ilTemplate("tpl.il_svy_qpl_mc_printview.html", true, true, "Modules/SurveyQuestionPool");
         switch ($this->object->getOrientation()) {
             case 0:
                 // vertical orientation
                 foreach ($options as $option) {
                     if ($option["other"]) {
                         $template->setCurrentBlock("other_row");
                         $template->setVariable("IMAGE_CHECKBOX", ilUtil::getHtmlPath(ilUtil::getImagePath("object/checkbox_" . $option["checked"] . ".png")));
                         $template->setVariable("ALT_CHECKBOX", $this->lng->txt($option["checked"]));
                         $template->setVariable("TITLE_CHECKBOX", $this->lng->txt($option["checked"]));
                         $template->setVariable(
                             "OTHER_LABEL",
                             ilLegacyFormElementsUtil::prepareFormOutput($option["title"])
                         );
                         $template->setVariable("OTHER_ANSWER", $option["textanswer"]
                             ? ilLegacyFormElementsUtil::prepareFormOutput($option["textanswer"])
                             : "&nbsp;");
                     } else {
                         $template->setCurrentBlock("mc_row");
                         $template->setVariable("IMAGE_CHECKBOX", ilUtil::getHtmlPath(ilUtil::getImagePath("object/checkbox_" . $option["checked"] . ".png")));
                         $template->setVariable("ALT_CHECKBOX", $this->lng->txt($option["checked"]));
                         $template->setVariable("TITLE_CHECKBOX", $this->lng->txt($option["checked"]));
                         $template->setVariable("TEXT_MC", ilLegacyFormElementsUtil::prepareFormOutput($option["title"]));
                     }
                     $template->parseCurrentBlock();
                 }
                 break;
             case 1:
                 // horizontal orientation
                 foreach ($options as $option) {
                     $template->setCurrentBlock("checkbox_col");
                     $template->setVariable("IMAGE_CHECKBOX", ilUtil::getHtmlPath(ilUtil::getImagePath("object/checkbox_" . $option["checked"] . ".png")));
                     $template->setVariable("ALT_CHECKBOX", $this->lng->txt($option["checked"]));
                     $template->setVariable("TITLE_CHECKBOX", $this->lng->txt($option["checked"]));
                     $template->parseCurrentBlock();
                 }
                 foreach ($options as $option) {
                     if ($option["other"]) {
                         $template->setCurrentBlock("other_text_col");
                         $template->setVariable(
                             "OTHER_LABEL",
                             ilLegacyFormElementsUtil::prepareFormOutput($option["title"])
                         );
                         $template->setVariable("OTHER_ANSWER", $option["textanswer"]
                             ? ilLegacyFormElementsUtil::prepareFormOutput($option["textanswer"])
                             : "&nbsp;");
                     } else {
                         $template->setCurrentBlock("text_col");
                         $template->setVariable("TEXT_MC", ilLegacyFormElementsUtil::prepareFormOutput($option["title"]));
                     }
                     $template->parseCurrentBlock();
                 }
                 break;
         }

         if ($this->object->use_min_answers) {
             $template->setCurrentBlock('min_max_msg');
             if ($this->object->nr_min_answers > 0 && $this->object->nr_max_answers > 0) {
                 $template->setVariable('MIN_MAX_MSG', sprintf($this->lng->txt('msg_min_max_nr_answers'), $this->object->nr_min_answers, $this->object->nr_max_answers));
             } elseif ($this->object->nr_min_answers > 0) {
                 $template->setVariable('MIN_MAX_MSG', sprintf($this->lng->txt('msg_min_nr_answers'), $this->object->nr_min_answers));
             } elseif ($this->object->nr_max_answers > 0) {
                 $template->setVariable('MIN_MAX_MSG', sprintf($this->lng->txt('msg_max_nr_answers'), $this->object->nr_max_answers));
             }
             $template->parseCurrentBlock();
         }
         if ($show_questiontext) {
             $this->outQuestionText($template);
         }
         if ($question_title) {
             $template->setVariable("QUESTION_TITLE", $this->getPrintViewQuestionTitle($question_title));
         }
         $template->parseCurrentBlock();
         return $template->get();
     }

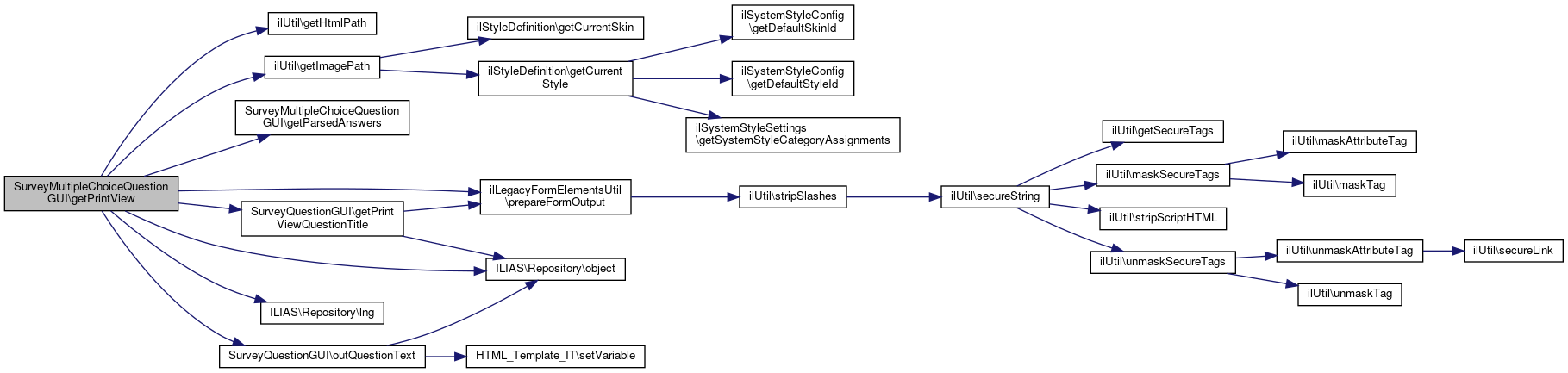

Here is the call graph for this function:

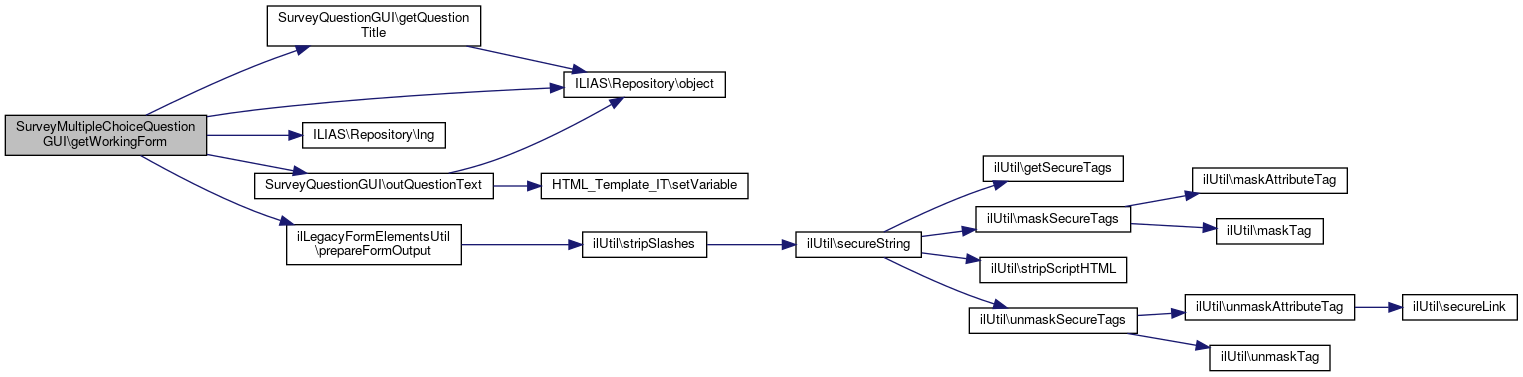

◆ getWorkingForm()

SurveyMultipleChoiceQuestionGUI::getWorkingForm	(	array	$working_data = `null`,
		int	$question_title = `1`,
		bool	$show_questiontext = `true`,
		string	$error_message = `""`,
		int	$survey_id = `null`,
		bool	$compress_view = `false`
	)

Creates the question output form for the learner.

Definition at line 294 of file class.SurveyMultipleChoiceQuestionGUI.php.

References SurveyQuestionGUI\getQuestionTitle(), ILIAS\Repository\lng(), ILIAS\Repository\object(), SurveyQuestionGUI\outQuestionText(), and ilLegacyFormElementsUtil\prepareFormOutput().

      : string {
         $template = new ilTemplate("tpl.il_svy_out_mc.html", true, true, "Modules/SurveyQuestionPool");
         switch ($this->object->getOrientation()) {
             case 0:
                 // vertical orientation
                 for ($i = 0; $i < $this->object->categories->getCategoryCount(); $i++) {
                     $cat = $this->object->categories->getCategory($i);
                     if ($cat->other) {
                         $template->setCurrentBlock("other_row");
                         if (strlen($cat->title ?? "")) {
                             $template->setVariable("OTHER_LABEL", $cat->title);
                         }
                         $template->setVariable("VALUE_MC", ($cat->scale) ? ($cat->scale - 1) : $i);
                         $template->setVariable("QUESTION_ID", $this->object->getId());
                         if (is_array($working_data)) {
                             foreach ($working_data as $value) {
                                 if (strlen($value["value"] ?? "")) {
                                     if ($value["value"] == $cat->scale - 1) {
                                         $template->setVariable("OTHER_VALUE", ' value="' . ilLegacyFormElementsUtil::prepareFormOutput(
                                             $value['textanswer']
                                         ) . '"');
                                         if (!($value['uncheck'] ?? false)) {
                                             $template->setVariable("CHECKED_MC", " checked=\"checked\"");
                                         }
                                     }
                                 }
                             }
                         }
                     } else {
                         $template->setCurrentBlock("mc_row");
                         if ($cat->neutral) {
                             $template->setVariable('ROWCLASS', ' class="neutral"');
                         }
                         $template->setVariable("TEXT_MC", ilLegacyFormElementsUtil::prepareFormOutput($cat->title));
                         $template->setVariable("VALUE_MC", ($cat->scale) ? ($cat->scale - 1) : $i);
                         $template->setVariable("QUESTION_ID", $this->object->getId());
                         if (is_array($working_data)) {
                             foreach ($working_data as $value) {
                                 if (strlen($value["value"] ?? "")) {
                                     if ($value["value"] == $cat->scale - 1) {
                                         if (!($value['uncheck'] ?? false)) {
                                             $template->setVariable("CHECKED_MC", " checked=\"checked\"");
                                         }
                                     }
                                 }
                             }
                         }
                     }
                     $template->parseCurrentBlock();
                     $template->touchBlock('outer_row');
                 }
                 break;
             case 1:
                 // horizontal orientation

                 // #15477 - reverting the categorizing of answers
                 for ($i = 0; $i < $this->object->categories->getCategoryCount(); $i++) {
                     $cat = $this->object->categories->getCategory($i);

                     // checkbox
                     $template->setCurrentBlock("checkbox_col");
                     if ($cat->neutral) {
                         $template->setVariable('COLCLASS', ' neutral');
                     }
                     $template->setVariable("VALUE_MC", ($cat->scale) ? ($cat->scale - 1) : $i);
                     $template->setVariable("QUESTION_ID", $this->object->getId());
                     if (is_array($working_data)) {
                         foreach ($working_data as $value) {
                             if (strlen($value["value"] ?? "")) {
                                 if ($value["value"] == $cat->scale - 1) {
                                     if (!($value['uncheck'] ?? false)) {
                                         $template->setVariable("CHECKED_MC", " checked=\"checked\"");
                                     }
                                 }
                             }
                         }
                     }
                     $template->parseCurrentBlock();

                     // answer & input
                     if ($cat->other) {
                         $template->setCurrentBlock("text_other_col");
                         $template->setVariable("VALUE_MC", ($cat->scale) ? ($cat->scale - 1) : $i);
                         $template->setVariable("QUESTION_ID", $this->object->getId());
                         if (strlen($cat->title ?? "")) {
                             $template->setVariable("OTHER_LABEL", $cat->title);
                         }
                         if (is_array($working_data)) {
                             foreach ($working_data as $value) {
                                 if (strlen($value["value"] ?? "")) {
                                     if ($value["value"] == $cat->scale - 1) {
                                         $template->setVariable("OTHER_VALUE", ' value="' . ilLegacyFormElementsUtil::prepareFormOutput(
                                             $value['textanswer']
                                         ) . '"');
                                     }
                                 }
                             }
                         }
                     }
                     // answer
                     else {
                         $template->setCurrentBlock("text_col");
                         if ($cat->neutral) {
                             $template->setVariable('COLCLASS', ' neutral');
                         }
                         $template->setVariable("VALUE_MC", ($cat->scale) ? ($cat->scale - 1) : $i);
                         $template->setVariable("TEXT_MC", ilLegacyFormElementsUtil::prepareFormOutput($cat->title));
                         $template->setVariable("QUESTION_ID", $this->object->getId());
                     }
                     $template->parseCurrentBlock();
                     $template->touchBlock('text_outer_col');
                 }
                 break;
         }

         $template->setCurrentBlock("question_data");
         if ($this->object->use_min_answers) {
             $template->setCurrentBlock('min_max_msg');
             if ($this->object->nr_min_answers > 0 && $this->object->nr_max_answers > 0) {
                 if ($this->object->nr_min_answers == $this->object->nr_max_answers) {
                     $template->setVariable('MIN_MAX_MSG', sprintf($this->lng->txt('msg_min_max_exact_answers'), $this->object->nr_min_answers));
                 } else {
                     $template->setVariable('MIN_MAX_MSG', sprintf($this->lng->txt('msg_min_max_nr_answers'), $this->object->nr_min_answers, $this->object->nr_max_answers));
                 }
             } elseif ($this->object->nr_min_answers > 0) {
                 $template->setVariable('MIN_MAX_MSG', sprintf($this->lng->txt('msg_min_nr_answers'), $this->object->nr_min_answers));
             } elseif ($this->object->nr_max_answers > 0) {
                 $template->setVariable('MIN_MAX_MSG', sprintf($this->lng->txt('msg_max_nr_answers'), $this->object->nr_max_answers));
             }
             $template->parseCurrentBlock();
         }
         if (strcmp($error_message, "") !== 0) {
             $template->setVariable("ERROR_MESSAGE", "<p class=\"warning\">$error_message</p>");
         }
         if ($show_questiontext) {
             $this->outQuestionText($template);
         }
         $template->setVariable("QUESTION_TITLE", $this->getQuestionTitle($question_title));
         $template->parseCurrentBlock();
         return $template->get();
     }

Here is the call graph for this function:

◆ importEditFormValues()

SurveyMultipleChoiceQuestionGUI::importEditFormValues ( ilPropertyFormGUI $a_form )

protected

Definition at line 133 of file class.SurveyMultipleChoiceQuestionGUI.php.

References ILIAS\LTI\ToolProvider\$key, and ilPropertyFormGUI\getInput().

                                                                       : void
     {
         $this->object->setOrientation($a_form->getInput("orientation"));
         $this->object->use_other_answer = ($a_form->getInput('use_other_answer')) ? 1 : 0;
         $this->object->other_answer_label = $this->object->use_other_answer ? $a_form->getInput('other_answer_label') : "";
         $this->object->use_min_answers = (bool) $a_form->getInput('use_min_answers');
         $this->object->nr_min_answers = ($a_form->getInput('nr_min_answers') > 0) ? $a_form->getInput('nr_min_answers') : "";
         $this->object->nr_max_answers = ($a_form->getInput('nr_max_answers') > 0) ? $a_form->getInput('nr_max_answers') : "";
         $this->object->label = $a_form->getInput('label');

         $this->object->categories->flushCategories();

         $answers = $this->request->getAnswers();
         foreach ($answers['answer'] as $key => $value) {
             if (strlen($value ?? "")) {
                 $this->object->getCategories()->addCategory($value, $answers['other'][$key] ?? 0, 0, null, $answers['scale'][$key]);
             }
         }
         if ($this->request->getNeutral() !== "") {
             $this->object->getCategories()->addCategory($this->request->getNeutral(), 0, 1, null, $this->request->getNeutralScale());
         }
     }

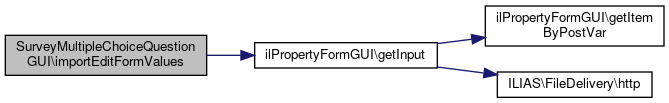

Here is the call graph for this function:

◆ initObject()

SurveyMultipleChoiceQuestionGUI::initObject ( )

protected

Definition at line 27 of file class.SurveyMultipleChoiceQuestionGUI.php.

                                    : void
     {
         $this->object = new SurveyMultipleChoiceQuestion();
     }

◆ setQuestionTabs()

SurveyMultipleChoiceQuestionGUI::setQuestionTabs ( )

Definition at line 36 of file class.SurveyMultipleChoiceQuestionGUI.php.

References SurveyQuestionGUI\setQuestionTabsForClass().

                                      : void
     {
         $this->setQuestionTabsForClass("surveymultiplechoicequestiongui");
     }

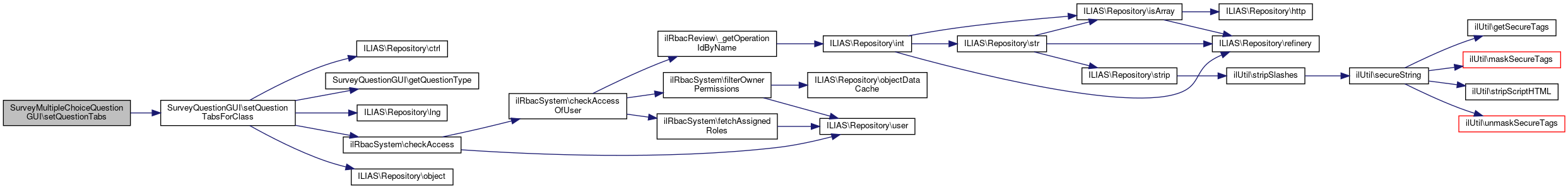

Here is the call graph for this function:

◆ validateEditForm()

SurveyMultipleChoiceQuestionGUI::validateEditForm ( ilPropertyFormGUI $a_form )

protected

Definition at line 95 of file class.SurveyMultipleChoiceQuestionGUI.php.

References ILIAS\LTI\ToolProvider\$key, ilPropertyFormGUI\getInput(), ilPropertyFormGUI\getItemByPostVar(), and ILIAS\Repository\lng().

                                                                   : bool
     {
         $errors = false;
         if ($a_form->getInput("use_min_answers")) {
             // #13927 - see importEditFormValues()
             $cnt_answers = 0;
             $answers = $this->request->getAnswers();
             foreach ($answers['answer'] as $key => $value) {
                 if (strlen($value ?? "")) {
                     $cnt_answers++;
                 }
             }
             if ($this->request->getNeutral() !== "") {
                 $cnt_answers++;
             }
             /* this would be the DB-values
             $cnt_answers = $a_form->getItemByPostVar("answers");
             $cnt_answers = $cnt_answers->getCategoryCount();
             */
             $min_anwers = $a_form->getInput("nr_min_answers");
             $max_anwers = $a_form->getInput("nr_max_answers");

             if ($min_anwers &&
                 $min_anwers > $cnt_answers) {
                 $a_form->getItemByPostVar("nr_min_answers")->setAlert($this->lng->txt('err_minvalueganswers'));
                 $errors = true;
             }
             if ($max_anwers > 0 &&
                 ($max_anwers > $cnt_answers || $max_anwers < $min_anwers)) {
                 $a_form->getItemByPostVar("nr_max_answers")->setAlert($this->lng->txt('err_maxvaluegeminvalue'));
                 $errors = true;
             }
         }

         $this->tpl->setOnScreenMessage('failure', $this->lng->txt('form_input_not_valid'));
         return !$errors;
     }

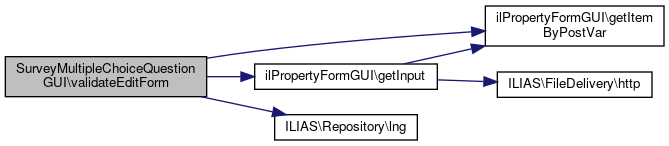

Here is the call graph for this function:

The documentation for this class was generated from the following file:

Modules/SurveyQuestionPool/Questions/class.SurveyMultipleChoiceQuestionGUI.php

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ addFieldsToEditForm()

◆ getParsedAnswers()

◆ getPrintView()

◆ getWorkingForm()

◆ importEditFormValues()

◆ initObject()

◆ setQuestionTabs()

◆ validateEditForm()
