ilMediaObjectDataSet Class Reference

Media Pool Data set class. More...

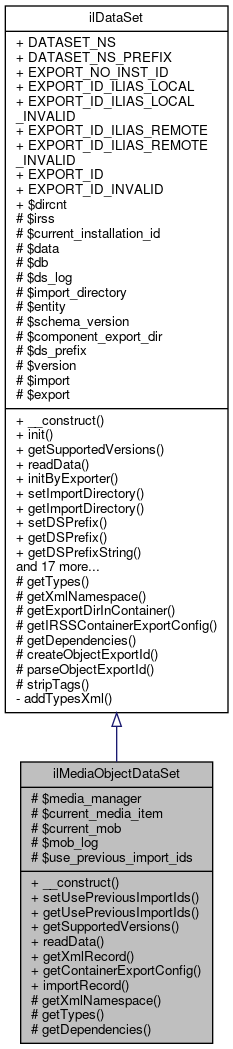

Inheritance diagram for ilMediaObjectDataSet:

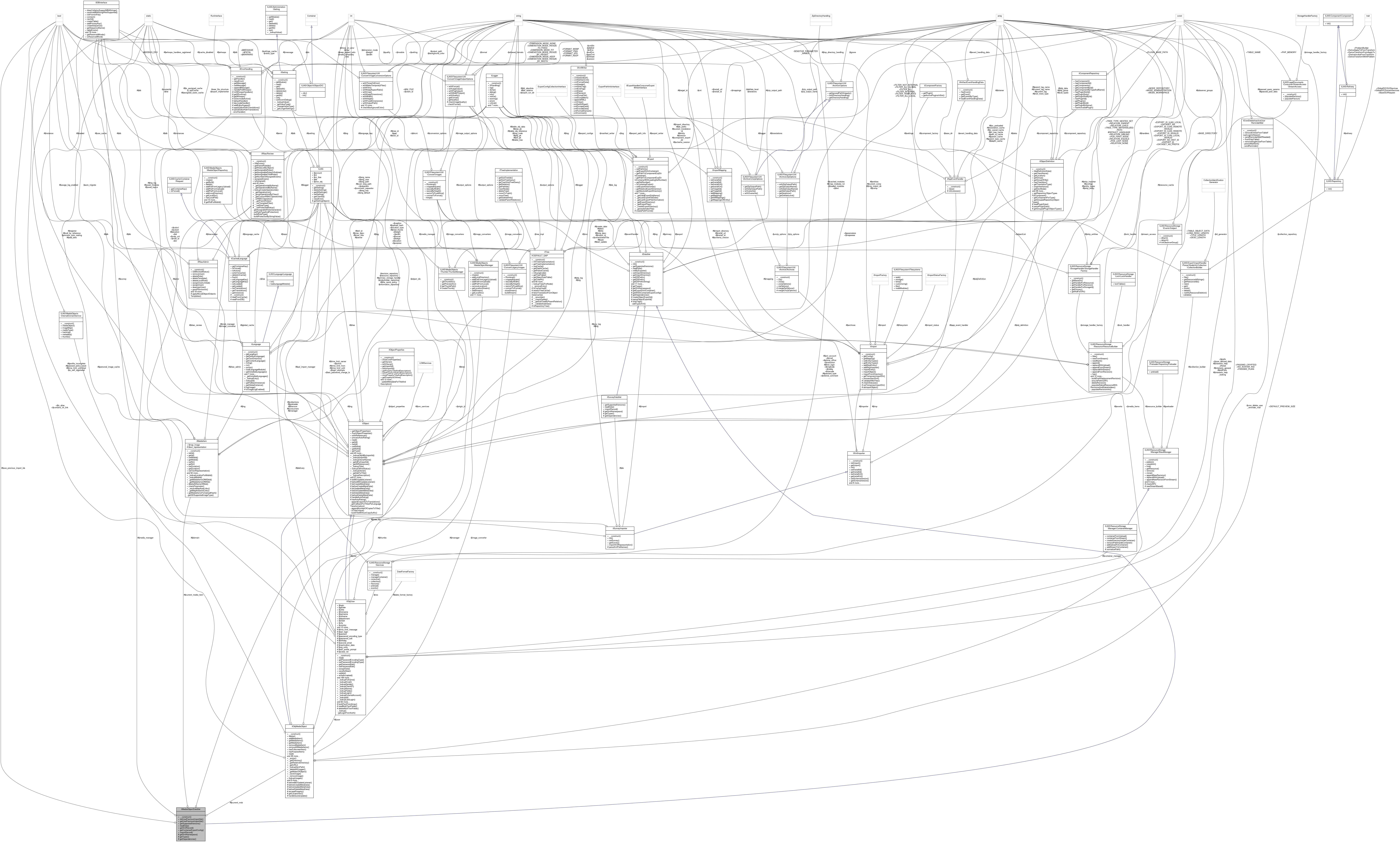

Collaboration diagram for ilMediaObjectDataSet:

Public Member Functions
	__construct ()
	setUsePreviousImportIds (bool $a_val)
	Set use previous import ids. More...
	getUsePreviousImportIds ()
	getSupportedVersions ()
	readData (string $a_entity, string $a_version, array $a_ids)
	getXmlRecord (string $a_entity, string $a_version, array $a_set)
	getContainerExportConfig (array $record, string $entity, string $schema_version, string $field, string $value)
	importRecord (string $a_entity, array $a_types, array $a_rec, ilImportMapping $a_mapping, string $a_schema_version)
Public Member Functions inherited from ilDataSet
	__construct ()
	init (string $a_entity, string $a_schema_version)
	Init. More...
	getSupportedVersions ()
	readData (string $a_entity, string $a_version, array $a_ids)
	Read data from DB. More...
	initByExporter (ilXmlExporter $xml_exporter)
	setImportDirectory (string $a_val)
	getImportDirectory ()
	setDSPrefix (string $a_val)
	getDSPrefix ()
	getDSPrefixString ()
	getDirectDataFromQuery (string $a_query, bool $a_convert_to_leading_upper=true, bool $a_set=true)
	Get data from query.This is a standard procedure, all db field names are directly mapped to abstract fields. More...
	convertToLeadingUpper (string $a_str)
	Make xyz_abc a XyzAbc string. More...
	getXmlRepresentation (string $a_entity, string $a_schema_version, ?array $a_ids, string $a_field="", bool $a_omit_header=false, bool $a_omit_types=false)
	Get xml representation <dataset install_id="123" install_url="..."> <types entity="table_name" version="4.0.1"> <ftype name="field_1" type="text"> <ftype name="field_2" type="date"> <ftype name="field_3" type="integer"> </types> <types ...> ... More...
	addRecordsXml (ilXmlWriter $a_writer, array $a_prefixes, string $a_entity, string $a_schema_version, array $a_ids, ?string $a_field="")
	afterXmlRecordWriting (string $a_entity, string $a_version, array $a_set)
	getNamespaces (array &$namespaces, string $a_entity, string $a_schema_version)
	getXmlRecord (string $a_entity, string $a_version, array $a_set)
	Get xml record for version. More...
	getXmlTypes (string $a_entity, string $a_version)
	Get xml types. More...
	getXMLEntityName (string $a_entity, string $a_version)
	Get entity name for xml (may be overwritten) More...
	getXMLEntityTag (string $a_entity, string $a_schema_version)
	Get entity tag. More...
	setImport (ilSurveyImporter $a_val)
	getImport ()
	setCurrentInstallationId (string $a_val)
	getCurrentInstallationId ()
	importRecord (string $a_entity, array $a_types, array $a_rec, ilImportMapping $a_mapping, string $a_schema_version)
	Needs to be overwritten for import use case. More...
	getCollection (array $record, string $entity, string $schema_version, string $field, string $value)
	getContainerExportConfig (array $record, string $entity, string $schema_version, string $field, string $value)

Protected Member Functions
	getXmlNamespace (string $a_entity, string $a_schema_version)
	getTypes (string $a_entity, string $a_version)
	getDependencies (string $a_entity, string $a_version, ?array $a_rec=null, ?array $a_ids=null)
	Determine the dependent sets of data. More...
Protected Member Functions inherited from ilDataSet
	getTypes (string $a_entity, string $a_version)
	Get (abstract) types for (abstract) field names. More...
	getXmlNamespace (string $a_entity, string $a_schema_version)
	getExportDirInContainer (string $exp_dir)
	getIRSSContainerExportConfig (StorableResource $source_container, string $source_path, string $target_path="")
	getDependencies (string $a_entity, string $a_version, ?array $a_rec=null, ?array $a_ids=null)
	createObjectExportId (string $a_type, string $a_id)
	Build ilias export id. More...
	parseObjectExportId (string $a_id, ?string $a_fallback_id=null)
	Parse export id. More...
	stripTags (array $rec, array $omit_keys=[])

Protected Attributes
ILIAS MediaObjects MediaObjectManager	$media_manager
ilMediaItem	$current_media_item
ilObjMediaObject	$current_mob
ilLogger	$mob_log
bool	$use_previous_import_ids = false
Protected Attributes inherited from ilDataSet
ILIAS ResourceStorage Services	$irss
string	$current_installation_id = ""
array	$data = []
ilDBInterface	$db
ilLogger	$ds_log
string	$import_directory = ""
string	$entity = ""
string	$schema_version = ""
string	$component_export_dir = ""
string	$ds_prefix = "ds"
string	$version = ""
ilSurveyImporter	$import
ilExport	$export

Additional Inherited Members
Data Fields inherited from ilDataSet
const	DATASET_NS = 'http://www.ilias.de/Services/DataSet/ds/4_3'
const	DATASET_NS_PREFIX = 'ds'
const	EXPORT_NO_INST_ID = 1
const	EXPORT_ID_ILIAS_LOCAL = 2
const	EXPORT_ID_ILIAS_LOCAL_INVALID = 3
const	EXPORT_ID_ILIAS_REMOTE = 4
const	EXPORT_ID_ILIAS_REMOTE_INVALID = 5
const	EXPORT_ID = 6
const	EXPORT_ID_INVALID = 7
int	$dircnt = 0

Detailed Description

Media Pool Data set class.

This class implements the following entities:

• mob: object data
• mob_media_item: data from table media_item
• mob_mi_map_area: data from a table map_area
• mob_mi_parameter: data from a table mob_parameter

Author

Alexander Killing killi.nosp@m.ng@l.nosp@m.eifos.nosp@m..de

Definition at line 32 of file class.ilMediaObjectDataSet.php.

Constructor & Destructor Documentation

__construct()

ilMediaObjectDataSet::__construct

(

)

Definition at line 40 of file class.ilMediaObjectDataSet.php.

References $DIC, ILIAS\GlobalScreen\Provider\__construct(), and ilLoggerFactory\getLogger().

    {
        global $DIC;

        parent::__construct();
        $this->mob_log = ilLoggerFactory::getLogger('mob');
        $this->media_manager = $DIC->mediaObjects()->internal()->domain()->mediaObject();
    }

Here is the call graph for this function:

Member Function Documentation

getContainerExportConfig()

ilMediaObjectDataSet::getContainerExportConfig	(	array	$record,
		string	$entity,
		string	$schema_version,
		string	$field,
		string	$value
	)

Definition at line 320 of file class.ilMediaObjectDataSet.php.

References $container, and ilDataSet\getIRSSContainerExportConfig().

     : ?IRSSContainerExportConfig {
        if ($entity === "mob" && $field === "MediaContainer") {
            $rid = $this->media_manager->getContainerResourceId((int) $record["Id"]);
            if ($rid) {
                $container = $this->irss->manageContainer()->getResource($rid);
                return
                    $this->getIRSSContainerExportConfig(
                        $container,
                        ""
                    );
            }
        }
        return null;
    }

Here is the call graph for this function:

getDependencies()

ilMediaObjectDataSet::getDependencies ( string  $a_entity, string  $a_version, ?array  $a_rec = null, ?array  $a_ids = null  )

protected

Determine the dependent sets of data.

Definition at line 286 of file class.ilMediaObjectDataSet.php.

     : array {
        switch ($a_entity) {
            case "mob":
                return array(
                    "mob_media_item" => array("ids" => $a_rec["Id"] ?? null)
                );

            case "mob_media_item":
                return array(
                    "mob_mi_map_area" => array("ids" => $a_rec["Id"] ?? null),
                    "mob_mi_parameter" => array("ids" => $a_rec["Id"] ?? null)
                );
        }
        return [];
    }

getSupportedVersions()

ilMediaObjectDataSet::getSupportedVersions

(

)

Returns

string[]

Definition at line 67 of file class.ilMediaObjectDataSet.php.

                                          : array
    {
        return array("10.0", "5.1.0", "4.3.0", "4.1.0");
    }

getTypes()

ilMediaObjectDataSet::getTypes ( string  $a_entity, string  $a_version  )

protected

Definition at line 77 of file class.ilMediaObjectDataSet.php.

                                                                    : array
    {
        // mob
        if ($a_entity == "mob") {
            switch ($a_version) {
                case "4.1.0":
                case "4.3.0":
                    return array(
                        "Id" => "integer",
                        "Title" => "text",
                        "Description" => "text",
                        "Dir" => "directory"
                    );
                case "5.1.0":
                    return array(
                        "Id" => "integer",
                        "Title" => "text",
                        "Description" => "text",
                        "Dir" => "directory",
                        "ImportId" => "text"
                    );
                case "10.0":
                    return array(
                        "Id" => "integer",
                        "Title" => "text",
                        "Description" => "text",
                        "MediaContainer" => "rscontainer",
                        "ImportId" => "text"
                    );
            }
        }

        // media item
        if ($a_entity == "mob_media_item") {
            switch ($a_version) {
                case "10.0":
                case "5.1.0":
                case "4.3.0":
                case "4.1.0":
                    return array(
                        "Id" => "integer",
                        "MobId" => "integer",
                        "Width" => "integer",
                        "Height" => "integer",
                        "Halign" => "text",
                        "Caption" => "text",
                        "Nr" => "integer",
                        "Purpose" => "text",
                        "Location" => "text",
                        "LocationType" => "text",
                        "Format" => "text",
                        "TextRepresentation" => "text"
                    );
            }
        }

        // map areas
        if ($a_entity == "mob_mi_map_area") {
            switch ($a_version) {
                case "4.1.0":
                case "4.3.0":
                case "5.1.0":
                case "10.0":
                    return array(
                        "MiId" => "integer",
                        "Nr" => "integer",
                        "Shape" => "text",
                        "Coords" => "text",
                        "LinkType" => "text",
                        "Title" => "text",
                        "Href" => "text",
                        "Target" => "text",
                        "Type" => "text",
                        "TargetFrame" => "text",
                        "HighlightMode" => "text",
                        "HighlightText" => "text"
                    );
            }
        }

        // media item parameter
        if ($a_entity == "mob_mi_parameter") {
            switch ($a_version) {
                case "4.1.0":
                case "4.3.0":
                case "5.1.0":
                case "10.0":
                    return array(
                        "MiId" => "integer",
                        "Name" => "text",
                        "Value" => "text"
                    );
            }
        }
        return [];
    }

getUsePreviousImportIds()

ilMediaObjectDataSet::getUsePreviousImportIds

(

)

Definition at line 59 of file class.ilMediaObjectDataSet.php.

References $use_previous_import_ids.

Referenced by importRecord().

                                             : bool
    {
        return $this->use_previous_import_ids;
    }

Here is the caller graph for this function:

getXmlNamespace()

ilMediaObjectDataSet::getXmlNamespace ( string  $a_entity, string  $a_schema_version  )

protected

Definition at line 72 of file class.ilMediaObjectDataSet.php.

                                                                                  : string
    {
        return "https://www.ilias.de/xml/Services/MediaObject/" . $a_entity;
    }

getXmlRecord()

ilMediaObjectDataSet::getXmlRecord	(	string	$a_entity,
		string	$a_version,
		array	$a_set
	)

Definition at line 307 of file class.ilMediaObjectDataSet.php.

     : array {

        if ($a_entity === "mob") {
            $a_set["MediaContainer"] = serialize($this->media_manager->getContainerResourceId((int) $a_set["Id"]));
        }

        return $a_set;
    }

importRecord()

ilMediaObjectDataSet::importRecord	(	string	$a_entity,
		array	$a_types,
		array	$a_rec,
		ilImportMapping	$a_mapping,
		string	$a_schema_version
	)

Definition at line 342 of file class.ilMediaObjectDataSet.php.

References $current_media_item, $current_mob, ilImportMapping\addMapping(), ilDataSet\getCurrentInstallationId(), ilDataSet\getImportDirectory(), ilImportMapping\getMapping(), getUsePreviousImportIds(), ILIAS\Repository\int(), and ilDataSet\stripTags().

     : void {
        $a_rec = $this->stripTags($a_rec);
        switch ($a_entity) {
            case "mob":

                $newObj = new ilObjMediaObject();
                $newObj->setType("mob");
                $newObj->setTitle($a_rec["Title"]);
                $newObj->setDescription($a_rec["Description"]);
                // on translation re-import we are interested in the "previous" import id
                if ($this->getUsePreviousImportIds()) {
                    $newObj->setImportId($a_rec["ImportId"]);
                } else {
                    $newObj->setImportId("il_" . $this->getCurrentInstallationId() . "_mob_" . $a_rec["Id"]);
                }
                $newObj->create();
                $this->current_mob = $newObj;

                // up to 9
                $dir = str_replace("..", "", ($a_rec["Dir"] ?? ""));
                if ($dir != "" && $this->getImportDirectory() != "") {
                    $source_dir = $this->getImportDirectory() . "/" . $dir;
                    $this->media_manager->addLocalDirectory($newObj->getId(), $source_dir);
                }

                // from 10
                $dir = str_replace("..", "", ($a_rec["MediaContainer"] ?? ""));
                if ($dir != "" && $this->getImportDirectory() != "") {
                    $source_dir = $this->getImportDirectory() . "/" . $dir;
                    if (is_dir($source_dir)) {
                        $this->media_manager->addLocalDirectory($newObj->getId(), $source_dir);
                    }
                }

                $a_mapping->addMapping("components/ILIAS/MediaObjects", "mob", $a_rec["Id"], $newObj->getId());
                $a_mapping->addMapping(
                    "components/ILIAS/MetaData",
                    "md",
                    "0:" . $a_rec["Id"] . ":mob",
                    "0:" . $newObj->getId() . ":mob"
                );
                break;

            case "mob_media_item":

                // determine parent mob
                $mob_id = (int) $a_mapping->getMapping("components/ILIAS/MediaObjects", "mob", $a_rec["MobId"]);
                if (is_object($this->current_mob) && $this->current_mob->getId() == $mob_id) {
                    $mob = $this->current_mob;
                } else {
                    $mob = new ilObjMediaObject($mob_id);
                }

                $newObj = new ilMediaItem();
                $newObj->setMobId($mob_id);
                $newObj->setWidth($a_rec["Width"]);
                $newObj->setHeight($a_rec["Height"]);
                $newObj->setCaption($a_rec["Caption"]);
                $newObj->setNr($a_rec["Nr"]);
                $newObj->setPurpose($a_rec["Purpose"]);
                $newObj->setLocation($a_rec["Location"]);
                $newObj->setLocationType($a_rec["LocationType"]);
                $newObj->setFormat($a_rec["Format"]);
                $newObj->setTextRepresentation($a_rec["TextRepresentation"]);
                $newObj->create();
                $this->current_media_item = $newObj;

                $a_mapping->addMapping("components/ILIAS/MediaObjects", "mob_media_item", $a_rec["Id"], $newObj->getId());

                break;

            case "mob_mi_parameter":

                // get media item
                $med_id = (int) $a_mapping->getMapping("components/ILIAS/MediaObjects", "mob_media_item", $a_rec["MiId"]);
                if (is_object($this->current_media_item) && $this->current_media_item->getId() == $med_id) {
                    $med = $this->current_media_item;
                } else {
                    $med = new ilMediaItem($med_id);
                }
                $med->writeParameter($a_rec["Name"], $a_rec["Value"]);

                break;

            case "mob_mi_map_area":
                // get media item
                $med_id = (int) $a_mapping->getMapping("components/ILIAS/MediaObjects", "mob_media_item", $a_rec["MiId"]);
                if (is_object($this->current_media_item) && $this->current_media_item->getId() == $med_id) {
                    $med = $this->current_media_item;
                } else {
                    $med = new ilMediaItem($med_id);
                }

                $map_area = new ilMapArea();
                $map_area->setItemId($med_id);
                $map_area->setNr($a_rec["Nr"]);
                $map_area->setShape($a_rec["Shape"]);
                $map_area->setCoords($a_rec["Coords"]);
                $map_area->setLinkType($a_rec["LinkType"]);
                $map_area->setTitle($a_rec["Title"]);
                $map_area->setHref($a_rec["Href"]);
                $map_area->setTarget($a_rec["Target"]);
                $map_area->setType($a_rec["Type"]);
                $map_area->setTargetFrame($a_rec["TargetFrame"]);
                $map_area->setHighlightMode($a_rec["HighlightMode"]);
                $map_area->setHighlightClass($a_rec["HighlightClass"]);
                $map_area->create();
                break;
        }
    }

Here is the call graph for this function:

readData()

ilMediaObjectDataSet::readData	(	string	$a_entity,
		string	$a_version,
		array	$a_ids
	)

Definition at line 174 of file class.ilMediaObjectDataSet.php.

References ilDataSet\$db, $id, $ilDB, $r, $ref_id, ilObject\_lookupDescription(), ilObject\_lookupImportId(), ilObject\_lookupObjId(), ilObject\_lookupTitle(), ilObject\_lookupType(), ilDataSet\getDirectDataFromQuery(), and ilUtil\insertInstIntoID().

     : void {
        $ilDB = $this->db;

        if (!is_array($a_ids)) {
            $a_ids = array($a_ids);
        }

        // mob
        if ($a_entity == "mob") {
            $this->data = array();

            switch ($a_version) {
                case "4.1.0":
                case "4.3.0":
                    foreach ($a_ids as $mob_id) {
                        if (ilObject::_lookupType($mob_id) == "mob") {
                            $this->data[] = array("Id" => $mob_id,
                                "Title" => ilObject::_lookupTitle($mob_id),
                                "Description" => ilObject::_lookupDescription($mob_id)
                            );
                        }
                    }
                    break;
                case "5.1.0":
                case "10.0":
                    foreach ($a_ids as $mob_id) {
                        if (ilObject::_lookupType($mob_id) == "mob") {
                            $this->data[] = array("Id" => $mob_id,
                                "Title" => ilObject::_lookupTitle($mob_id),
                                "Description" => ilObject::_lookupDescription($mob_id),
                                "ImportId" => ilObject::_lookupImportId($mob_id)
                            );
                        }
                    }
                    break;
            }
        }

        // media item
        if ($a_entity == "mob_media_item") {
            switch ($a_version) {
                case "5.1.0":
                case "4.3.0":
                case "4.1.0":
                case "10.0":
                    $this->getDirectDataFromQuery("SELECT id, mob_id, width, height, halign," .
                        "caption, nr, purpose, location, location_type, format, text_representation" .
                        " FROM media_item WHERE " .
                        $ilDB->in("mob_id", $a_ids, false, "integer"));
                    break;
            }
        }


        // media item map area
        if ($a_entity == "mob_mi_map_area") {
            switch ($a_version) {
                case "4.1.0":
                case "4.3.0":
                case "5.1.0":
                case "10.0":
                    foreach ($this->getDirectDataFromQuery("SELECT item_id mi_id, nr" .
                        " ,shape, coords, link_type, title, href, target, type, target_frame, " .
                        " highlight_mode, highlight_class" .
                        " FROM map_area " .
                        " WHERE " .
                        $ilDB->in("item_id", $a_ids, false, "integer") .
                        " ORDER BY nr", true, false) as $r) {
                        $r["Target"] = ilUtil::insertInstIntoID((string) ($r["Target"] ?? ""));

                        // see ilPageObject::insertInstIntoIDs
                        if ($r["Type"] == "RepositoryItem") {
                            $id_arr = explode("_", $r["Target"]);
                            $ref_id = $id_arr[3];
                            $obj_id = ilObject::_lookupObjId($id_arr[3]);

                            $otype = ilObject::_lookupType($obj_id);
                            if ($obj_id > 0) {
                                $id = $otype . "_" . $obj_id . "_" . $ref_id;
                                $r["Target"] = "il_" . $id_arr[1] . "_" . $id;
                            }
                        }

                        $this->data[] = $r;
                    }
                    break;
            }
        }

        // media item parameter
        if ($a_entity == "mob_mi_parameter") {
            switch ($a_version) {
                case "4.1.0":
                case "4.3.0":
                case "5.1.0":
                case "10.0":
                    $this->getDirectDataFromQuery("SELECT med_item_id mi_id, name, value" .
                        " FROM mob_parameter " .
                        " WHERE " .
                        $ilDB->in("med_item_id", $a_ids, false, "integer"));
                    break;
            }
        }
    }

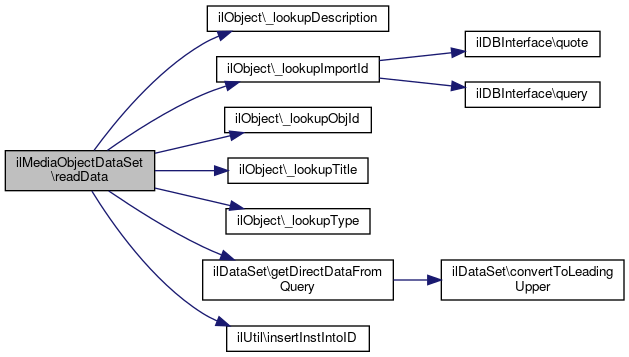

Here is the call graph for this function:

setUsePreviousImportIds()

ilMediaObjectDataSet::setUsePreviousImportIds

(

bool

$a_val

)

Set use previous import ids.

Parameters

bool

$a_val

use previous import ids

Definition at line 54 of file class.ilMediaObjectDataSet.php.

                                                        : void
    {
        $this->use_previous_import_ids = $a_val;
    }

Field Documentation

$current_media_item

ilMediaItem ilMediaObjectDataSet::$current_media_item

protected

Definition at line 35 of file class.ilMediaObjectDataSet.php.

Referenced by importRecord().

$current_mob

ilObjMediaObject ilMediaObjectDataSet::$current_mob

protected

Definition at line 36 of file class.ilMediaObjectDataSet.php.

Referenced by importRecord().

$media_manager

ILIAS MediaObjects MediaObjectManager ilMediaObjectDataSet::$media_manager

protected

Definition at line 34 of file class.ilMediaObjectDataSet.php.

$mob_log

ilLogger ilMediaObjectDataSet::$mob_log

protected

Definition at line 37 of file class.ilMediaObjectDataSet.php.

$use_previous_import_ids

bool ilMediaObjectDataSet::$use_previous_import_ids = false

protected

Definition at line 38 of file class.ilMediaObjectDataSet.php.

Referenced by getUsePreviousImportIds().

---

The documentation for this class was generated from the following file:

• components/ILIAS/MediaObjects/classes/class.ilMediaObjectDataSet.php
